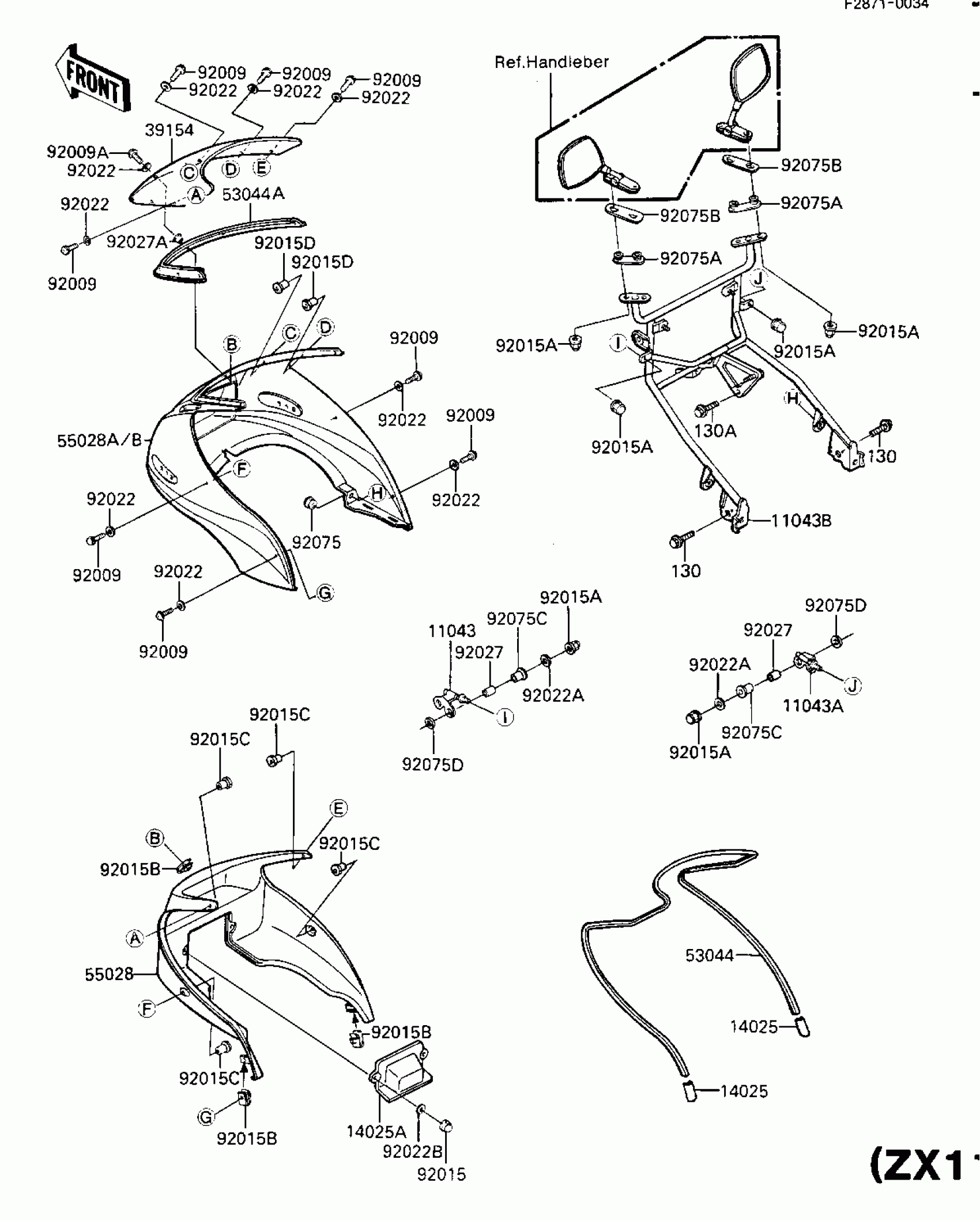

Kawasaki GPz FAIRING (ZX1100-A2) Diagram
#
Description
Price
11043
BRACKET-B,SIGNAL LAMP
11043-1278
Unavailable
11043A
BRACKET-B,SIGNAL LAMP
11043-1279
Unavailable
11043B
BRACKET,COWLING BODY
11043-1445
Unavailable
14025
COVER,TRIM END
14025-1756
$7.60
14025A
COVER,COWLING INNER
14025-1769
Unavailable
39154
WINDSHIELD
39154-1052
$532.08
53044
TRIM,COWLING
53044-1110
Unavailable
53044A
TRIM,WINDSHIELD
53044-1121
Unavailable
55028
COWLING,INNER
55028-5063
$97.63
55028A
COWLING,OUTER,F.RED
55028-5035-B1
$890.55
55028B
COWLING,OUTER,G.SILVE
55028-5036-F2
$507.86
92009
SCREW,5X16,BLACK
92009-1654
$3.13
92009A
SCREW,5X25
92009-1302
$4.39
92015
NUT,CAP,6MM,BLACK
92015-1170
$0.64
92015A
NUT,FLANGED,6MM
92015-1078
Unavailable
92015B
NUT,5MM
92015-1710
$6.22
92015C
NUT,COWLING,5MM
92015-1351
Unavailable
92015D
NUT,COWLING,5MM
92015-1352
$6.03
92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
$3.92
92022A
WASHER,7X24X1.6
92022-228
$3.92
92022B
WASHER-PLAIN,7MM
92022-240
Unavailable
92027
COLLAR,6.8X10X21
92027-1400
Unavailable
92027A
COLLAR,COWLING,L=5.5
92027-1754
Unavailable
92075
DAMPER
92075-1057
$4.92
92075A
DAMPER,MIRROR
92075-1492
$8.12
92075B
DAMPER,MIRROR
92075-1500
$9.36
92075C
RUBBER,FENDER COVER
92075-174
$4.78
92075D
DAMPER,FEMALE
92075-175
$4.39
130
BOLT-FLANGED,8X12,BLACK
130C0812
$0.72
130A
BOLT-FLANGED,8X16,BLACK
130C0816
Unavailable
