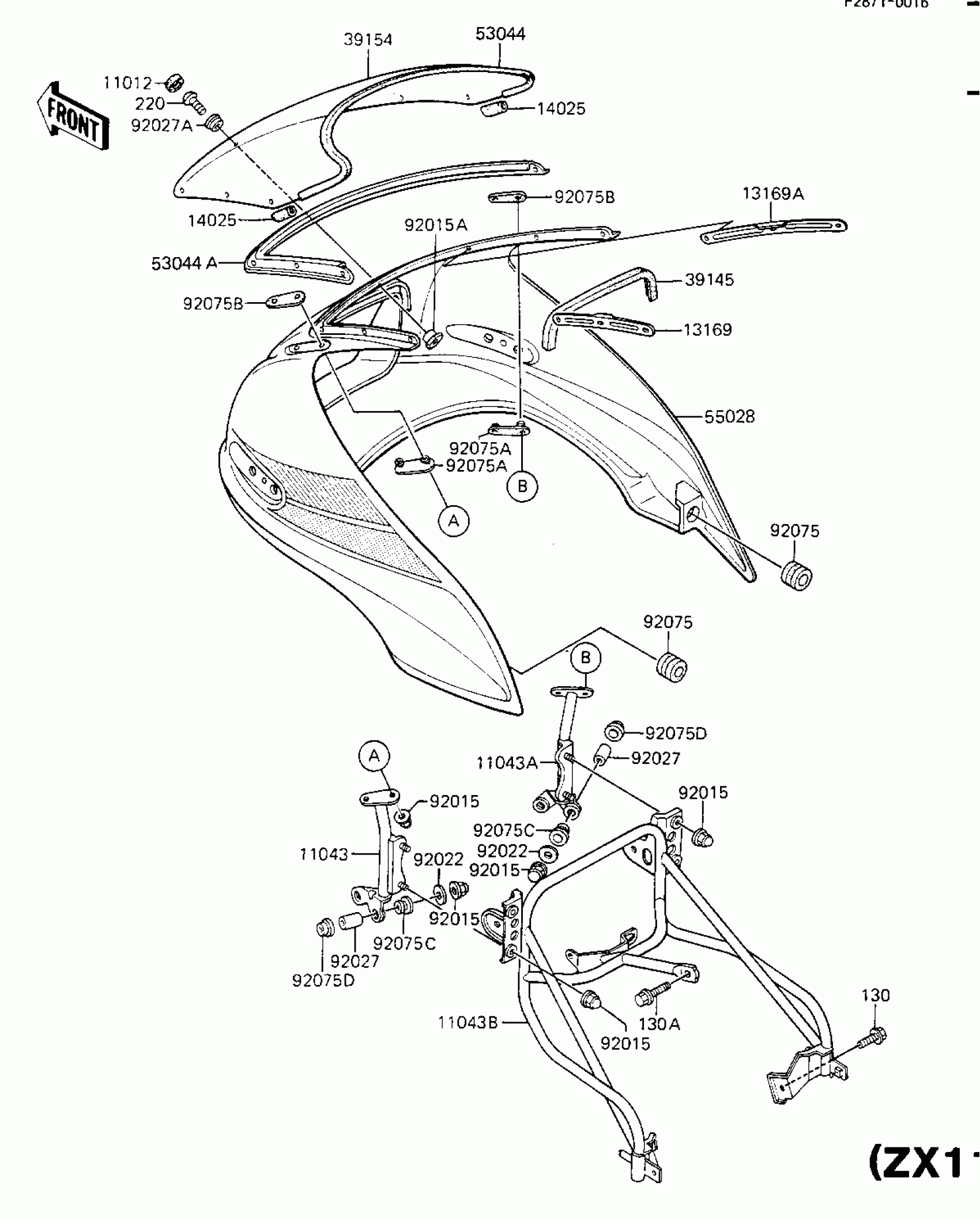

Kawasaki GPz FAIRING (ZX1100-A1) Diagram
#
Description
Price
11012
CAP,COWLING
11012-1309
$6.80
11043
BRACKET-B,MIRROR,LH
11043-1069
Unavailable
11043A
BRACKET-B,MIRROR,RH
11043-1070
Unavailable
11043B
BRACKET-B,COWLING BDY
11043-1211
Unavailable
13169
PLATE,COWLING,LH
13169-1711
Unavailable
13169A
PLATE,COWLING,RH
13169-1712
Unavailable
14025
COVER,TRIM END
14025-1756
$7.60
39145
TRIM-SEAL,HEAD LAMP
39145-1051
Unavailable
39154
WINDSHIELD
39154-1014
Unavailable
53044
TRIM,COWLING
53044-1110
Unavailable
53044A
TRIM,WINDSHIELD
53044-1122
Unavailable
55028
COWLING
55028-5062-B1
$811.84
92015
NUT,CAP,6MM,BLACK
92015-1170
$0.64
92015A
NUT,FLANGED,5MM
92015-1306
$4.61
92022
WASHER,7X24X1.6
92022-228
$3.92
92027
COLLAR,6.8X10X21
92027-1400
Unavailable
92027A
COLLAR,COWLING,ID=5.5
92027-1596
$8.89
92075
DAMPER
92075-1057
$4.92
92075A
DAMPER,MIRROR
92075-1492
$8.12
92075B
DAMPER,MIRROR
92075-1500
$9.36
92075C
RUBBER,FENDER COVER
92075-174
$4.78
92075D
DAMPER,FEMALE
92075-175
$4.39
130
BOLT-FLANGED,8X12,BLACK
130C0812
$0.72
130A
BOLT-FLANGED,8X16,BLACK
130C0816
Unavailable
220
SCREW-PAN-CROS
220C0514
$1.81
