Description

Price

11036

BRACKET,COWLING,LOWER

11036-1152

Unavailable

11036A

BRACKET-A,COWLING,UPP

11036-1299

Unavailable

11036B

BRACKET-A,COWLING,UPP

11036-1300

Unavailable

11036C

BRACKET-A,COWLING,LH

11036-1380

Unavailable

11036D

BRACKET-A,COWLING,RH

11036-1381

Unavailable

39154

WINDSHIELD

39154-1007

Unavailable

53044

TRIM,COWLING

53044-1034

Unavailable

55028

COWLING,F.RED

55028-1010-B1

Unavailable

55028B

COWLING,F.RED

55028-5008-B1

$510.05

92009

SCREW-PAN-CROS,5X12,BLACK

220C0512

$4.67

92009A

SCREW,5X16,BLACK

92009-1099

Unavailable

92015

NUT,5M/M

92015-1025

$5.84

92015A

NUT,5MM

92015-1150

Unavailable

92015B

NUT,LOCK,5MM

92019-014

$4.50

92022

WASHER,5.3X10X0.8

92022-1038

$3.65

92022A

WASHER,6.5X20X1.6

92022-125

$1.40

92022B

WASHER,5.2X16X1.2

92022-263

$1.66

92027

COLLAR 6.8X10X10.5

92027-120

$5.00

92071

GROMMET

92071-1010

$4.65

92075

DAMPER,8MM

92075-1138

$3.65

110

BOLT-UPSET

112G0625

$3.62

322

NUT-CAP,6MM

322B0600

$1.76

461

WASHER SPRING 6MM

461F0600

$0.69

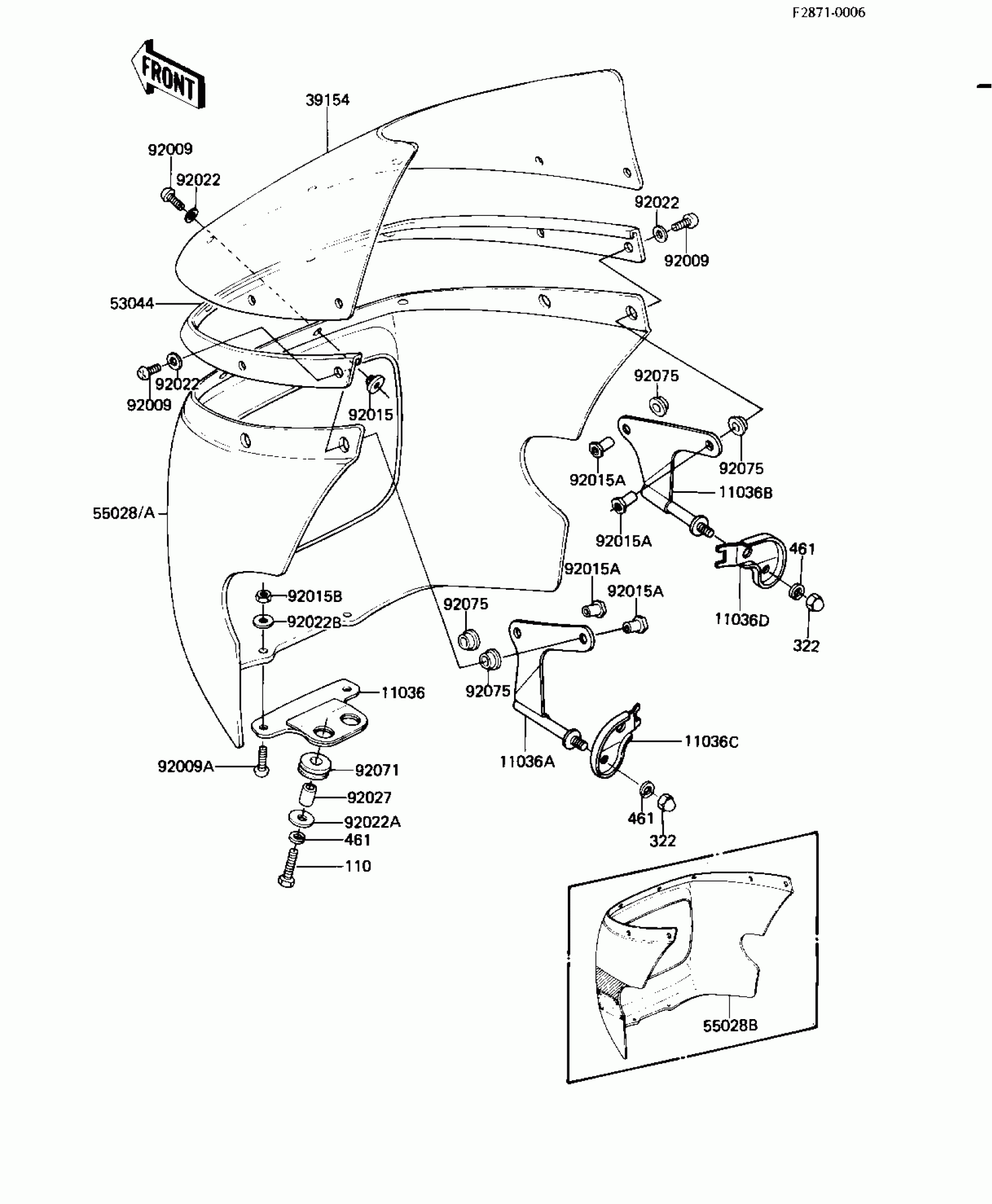

Kawasaki GPz FAIRING Diagram

BRACKET,COWLING,LOWER

BRACKET-A,COWLING,UPP

BRACKET-A,COWLING,UPP

BRACKET-A,COWLING,LH

BRACKET-A,COWLING,RH

WINDSHIELD

TRIM,COWLING

COWLING,F.RED

COWLING,F.RED

SCREW-PAN-CROS,5X12,BLACK

SCREW,5X16,BLACK

NUT,5M/M

NUT,5MM

NUT,LOCK,5MM

WASHER,5.3X10X0.8

WASHER,6.5X20X1.6

WASHER,5.2X16X1.2

COLLAR 6.8X10X10.5

GROMMET

DAMPER,8MM

BOLT-UPSET

NUT-CAP,6MM

WASHER SPRING 6MM
