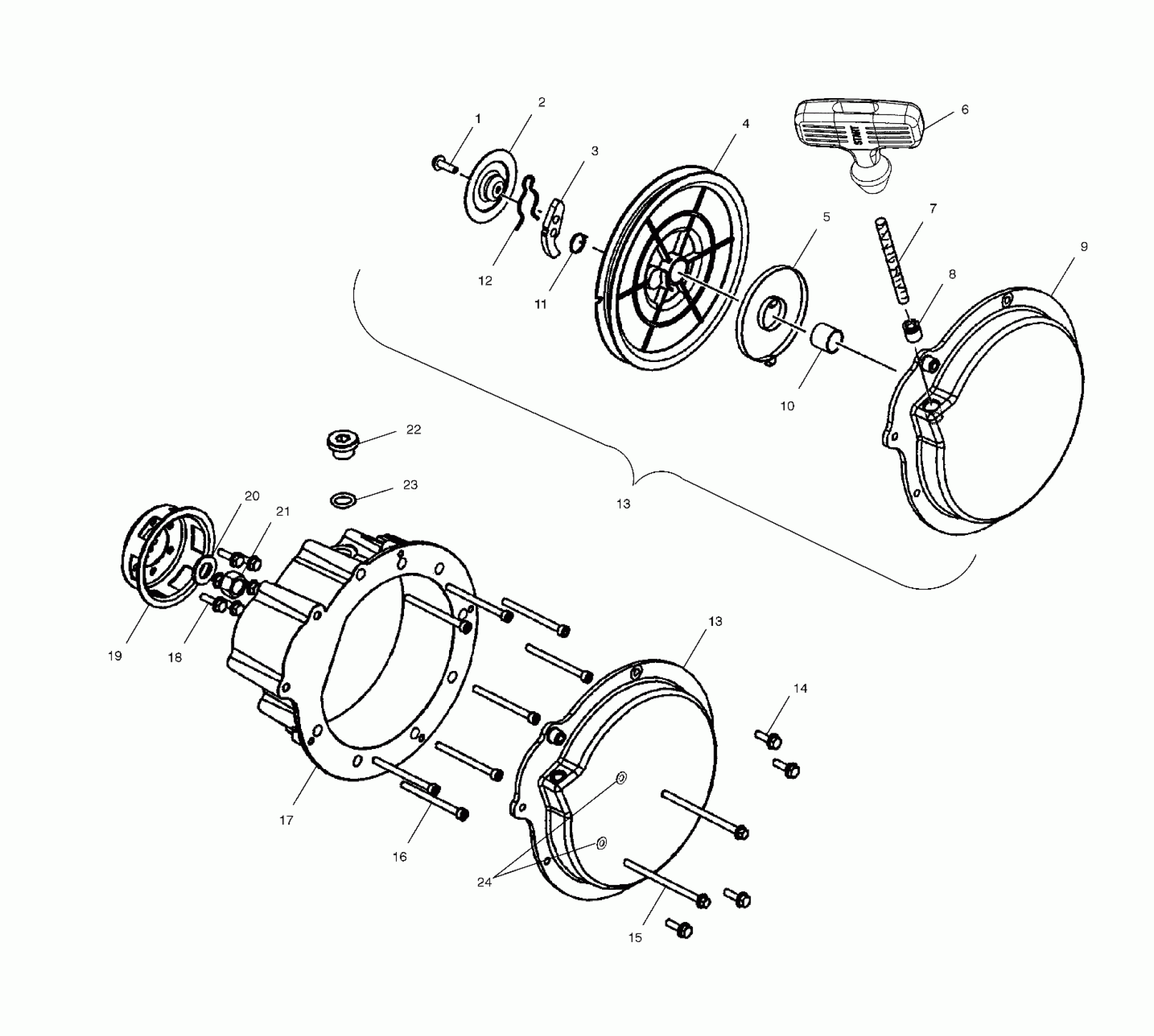

Polaris FRONTIER CLASSIC BUILT AFTER 1/01/02 - S03ND7DS RECOIL ASSEMBLY - S03ND7DS (4977987798D02) Diagram

#

Description
Price

1

SCREW

7517984

$4.79

2

Plate, Friction

3084744

Unavailable

3

Ratchet

3083378

$20.22

4

Reel, Recoil

5434358

$49.21

5

Spring, Power

3083185

$32.95

6

Handle

5412250

$12.39

7

Rope, Starter Recoil Housing

3021311

Unavailable

8

BUSHING,ROPE SLIDE

3040171

$3.48

9

Housing, Recoil, Upper

5631221

$103.19

10

Bushing

3084750

$7.19

11

Spring, Return

3083463

$4.03

12

Spring, Friction

3083379

$24.27

13

Asm., Recoil Housing

1202271

$177.13

13

Asm., Recoil Housing

1202271

$177.13

14

SCREW

7516822

$2.39

15

Screw

7517306

Unavailable

16

SCREW

7517807

$4.79

17

Asm., Housing Recoil, Lower

1202379

$148.79

18

SCREW

7516822

$2.39

19

Pulley, Starting Recoil

3040161

$38.71

20

WASHER

7555907

$5.59

21

Nut

7546909

Unavailable

22

Plug, Timing Hole

5433820

$20.22

23

O-Ring

5411564

$4.03

24

WASHER, FLAT

7555998

$1.49
