- FRONTIER CLASSIC BUILT AFTER 1/01/02 - S03ND7DS
RAIL MOUNTING - S03ND7DS (4977987798B10)

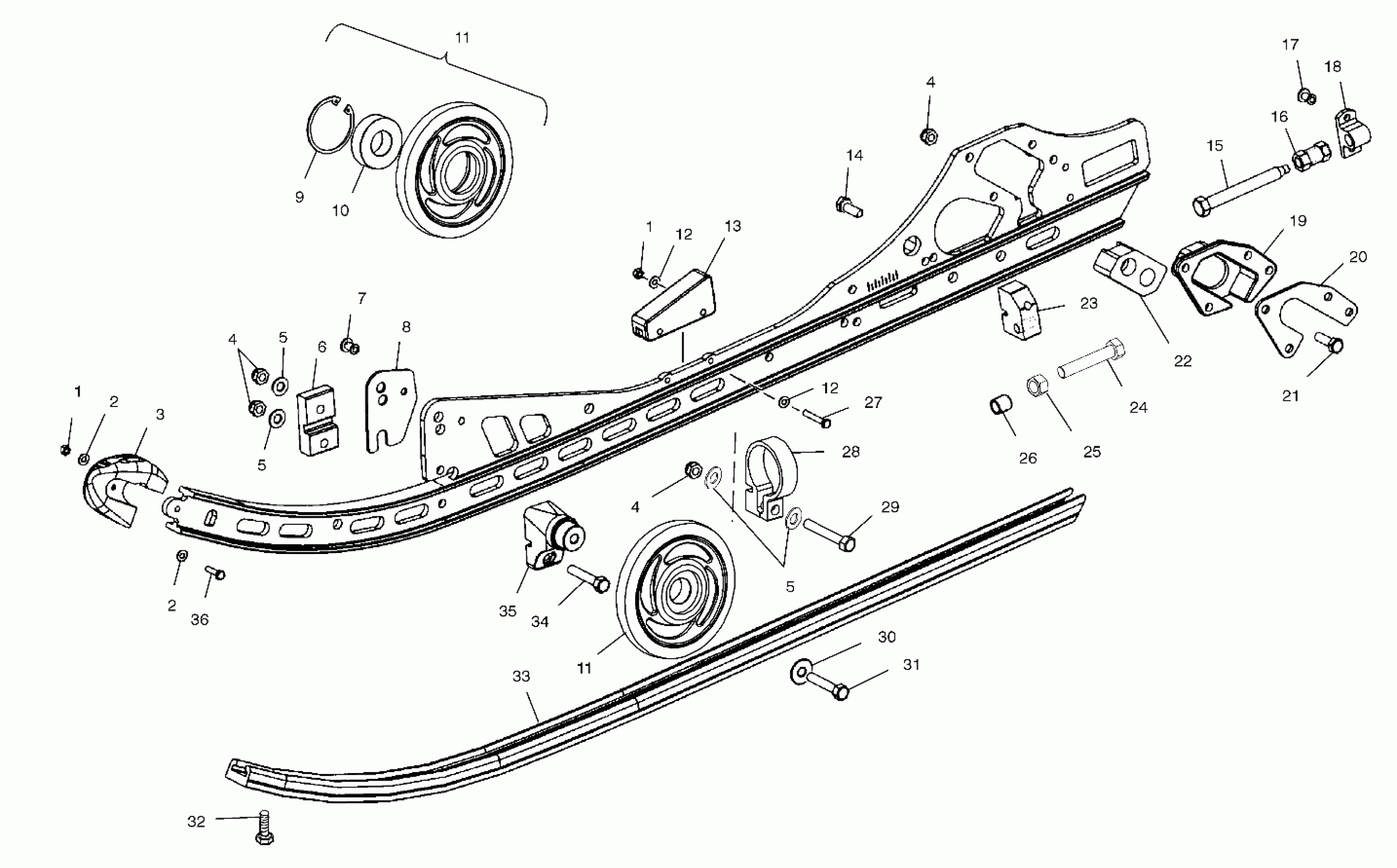

Polaris FRONTIER CLASSIC BUILT AFTER 1/01/02 - S03ND7DS RAIL MOUNTING - S03ND7DS (4977987798B10) Diagram
#
-
Asm., Rail, M-10, Natural LH [Incl. 1-3,12,13,17,18,27,36]
1541676-309
$354.99
-
Asm., Rail, M-10, Natural RH [Incl. 1-3,12,13,17,18,27,36]
1541677-309
$354.99
1
Nut, Nylok
7541925
$1.49
1
Nut, Nylok
7541925
$1.49
2
WASHER
7555792
$4.79
2
WASHER
7555792
$4.79
3
Cap, Rail Tip
5434374
$20.22
4
NUT-5/16-18 NYLOK-Y
7542324
$1.49
4
NUT-5/16-18 NYLOK-Y
7542324
$1.49
4
NUT-5/16-18 NYLOK-Y
7542324
$1.49
5
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
5
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
5
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
6
Block, Rail Support
5132577
Unavailable
7
RIVET
7661845
$1.49
8
Plate, Rail Support
5244651
$9.84
9
RET.RING-TRUARC [1 PER WHEEL]
7718407
$4.79
10
BEARING [1 PER WHEEL]
3514303
$11.99
11
Asm., Wheel, Scrolled, Silver [Incl. 9,10]
1590275-244
Unavailable
11
Asm., Wheel, Scrolled, Silver [Incl. 9,10]
1590275-244
Unavailable
12
Washer, Flat
7555783
$3.99
12
Washer, Flat
7555783
$3.99
13
Bumper, Rail Jounce
5411947
$12.39
14
Screw
7512392
$4.79
15
Screw
7517773
$28.56
16
Nut, Tension Adjust
5132712
Unavailable
17
RIVET
7621501
$2.39
18
Block, Idler Bolt Adjust
5132611
$34.71
19
Guide, Slider, LH
5631188
$51.59
19
Guide, Slider, RH
5631189
Unavailable
20
Plate, Coupler Block
5245045
Unavailable
21
Bolt
7512310
$2.39
22
Block, Slider, Long, LH
5434239
$19.60
22
Block, Slider, Long, RH
5434240
$16.47
23
Block, Shock Pivot Threaded
5132584
$45.99
24
Bolt
7515511
$3.99
25
NUT
7542404
$1.59
26
Spacer
5133009
$2.22
27
Bolt
7511967
$5.43
28
CLAMP, RESERVOIR
5132832
$23.99
29
BOLT
7515319
$4.79
30
Washer, Spring
7556179
$7.99
31
BOLT
7515382
$2.39
32
Screw
7515199
$1.49
33
Hi-Fax, Natural
5521563-309
$36.41
34
Bolt
7512329
$3.99
35
Block, Wheel Mount, LWT
5631065
$28.32
36
Screw
7511975
Unavailable
