FRONT SUSPENSION - S03ND7DS (4977987798A13)

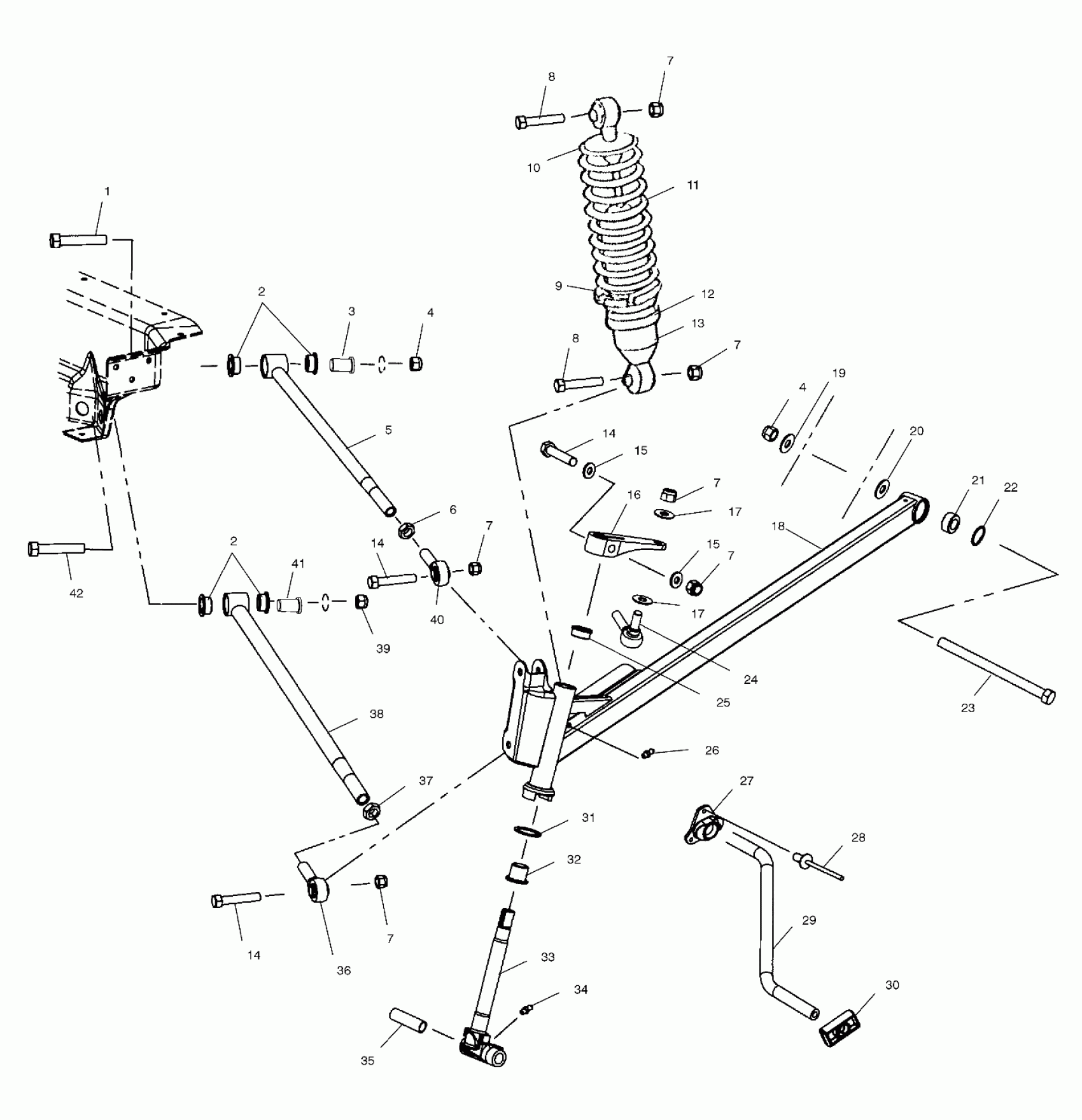

Polaris FRONTIER CLASSIC BUILT AFTER 1/01/02 - S03ND7DS FRONT SUSPENSION - S03ND7DS (4977987798A13) Diagram
#
1
Bolt
7517980
$7.99
2
Bushing, Radius Rod, Pivot, Inner
5434036
$14.99
2
Bushing, Radius Rod, Pivot, Inner
5434036
$14.99
3
Bushing, Shoulder
5132779
$11.99
4
Nut, Nylok
7547066
$1.59
4
Nut, Nylok
7547066
$1.59
5
Rod, Radius, Upper, Cloud Silver
1820679-385
Unavailable
6
Nut, Jam
7542520
$2.39
7
Nut, Nylok
7542439
$1.49
7
Nut, Nylok
7542439
$1.49
7
Nut, Nylok
7542439
$1.49
7
Nut, Nylok
7542439
$1.49
7
Nut, Nylok
7542439
$1.49
7
Nut, Nylok
7542439
$1.49
8
Screw
7515433
$1.59
8
Screw
7515433
$1.59
9
Ring, Spring Preload
5431734
$52.60
10
Retainer, Spring, Slotted
5630580
Unavailable
11
Spring, Compression
7042074-067
Unavailable
12
Retainer, Spring, Threaded
1500063
$44.51
13
Shock, IFS
7041932
Unavailable
14
SCREW
7517583
$4.35
14
SCREW
7517583
$4.35
14
SCREW
7517583
$4.35
15
WSHR-.813X.406X.105-Y
7555832
$2.39
15
WSHR-.813X.406X.105-Y
7555832
$2.39
16
Arm, Steering
5132728
$79.99
17
Washer, Flat
7555797
$3.99
17
Washer, Flat
7555797
$3.99
18
Asm., Trailing Arm, Cloud Silver, LH [Incl. 21,22]
1821165-385
Unavailable
18
Asm., Trailing Arm, Cloud Silver, RH [Incl. 21,22]
1821166-385
Unavailable
19
WASHER, FLAT
7555820
$3.99
20
Cup, Mount, Trailing Arm
5132364
$20.22
21
Bearing, Spherical
7061042
$31.99
22
Ring, Retaining
7710437
$3.19
23
Screw
7512099
$19.99
24
Rod End, RH
7061057
$48.56
25
Bushing
3573909
$2.39
26
Fitting, Lubrication
7080433
$1.49
27
Bushing, Torsion Bar
5433234
$23.99
28
Rivet
7621452
$1.49
29
Bar, Torsion
5244415-067
Unavailable
30
Slide, Torsion Bar
5434369
Unavailable
31
Bushing
7556509
$1.59
32
BUSHING, FLANGED
3574208
$3.19
33
Shaft, Spindle
6230225-067
$219.99
34
Fitting, Lubrication
7080306
$3.19
35
Bushing
5010158
$19.99
36
Rod End
7061060
$48.56
37
Nut, Jam
7542711
$2.39
38
Rod, Radius, Lower, Cloud Silver
1820677-385
$104.99
39
Nut, Nylok
7547065
$3.99
40
Rod End
7061061
$48.56
41
Bushing, Shoulder
5132780
$7.99
42
Bolt
7512684
Unavailable
