- FRONTIER CLASSIC BUILT AFTER 1/01/02 - S03ND7DS
DRIVE TRAIN - S03ND7DS (4977987798B09)

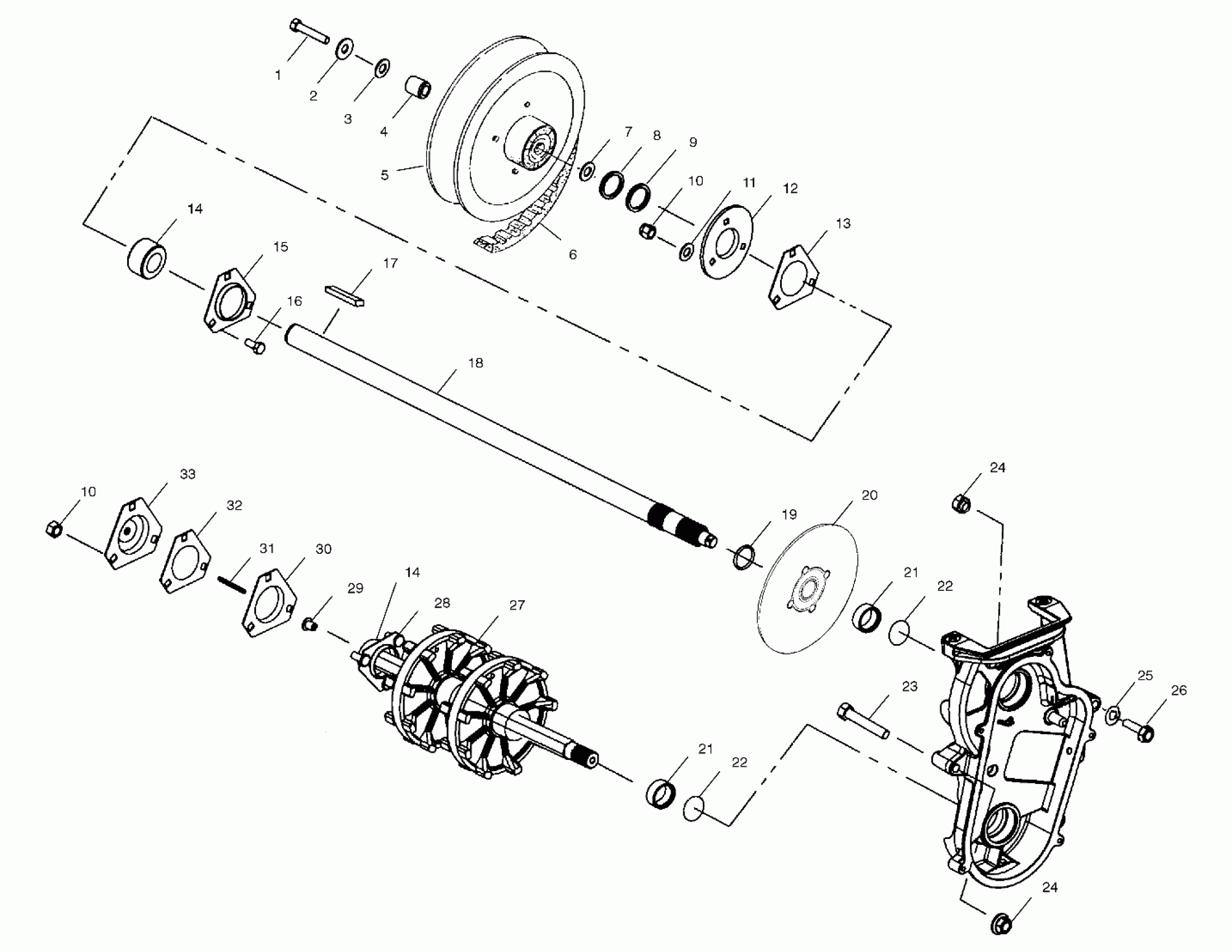

Polaris FRONTIER CLASSIC BUILT AFTER 1/01/02 - S03ND7DS DRIVE TRAIN - S03ND7DS (4977987798B09) Diagram
#
Description
Price
1
Bolt
7517820
Unavailable
2
WASHER, FLAT
7555701
$3.99
3
Washer, Flat
7555734
Unavailable
4
Spacer, Input Shaft
5020291
Unavailable
5
ASM., DRIVEN CLUTCH, R8 [SEE DRIVEN CLUTCH PG. C3, REF. 9]
-------
Unavailable
6
Belt, Drive
3211092
Unavailable
7
WASHER
7555917
Unavailable
8
WASHER
7555864
Unavailable
9
Bushing
7556509
Unavailable
10
NUT-5/16-18 NYLOK-Y
7542324
$1.49
10
NUT-5/16-18 NYLOK-Y
7542324
$1.49
11
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
12
Fitting, Lubrication
7080561
$4.79
12
Flangette w/Grease Zerk
5241359
$32.37
13
Gasket, Jackshaft
5811095
$2.41
14
BEARING
3514525
$31.99
14
BEARING
3514525
$31.99
15
FLANGETTE
5222751
$16.44
16
Bolt, Carriage
7512377
$4.79
17
Key
7721128
$10.39
18
Asm., Jackshaft [Incl. 16,19]
1332220
$158.73
19
RING, RETAINING
7710422
$3.99
20
Disc, Brake
1910612
Unavailable
21
SLEEVE, SEAL
5020588
$23.99
21
SLEEVE, SEAL
5020588
$23.99
22
O-RING
5410613
$1.99
22
O-RING
5410613
$1.99
23
Bolt, Carriage
7515428
$4.79
24
Nut, Flange
7542423
$3.99
24
Nut, Flange
7542423
$3.99
25
Washer
7558403
$4.79
26
Screw
7518002
$3.03
27
Asm., Drive Shaft [Incl. 14,28,29]
1590340
$343.71
28
ASM., FLANGETTE W/SCREWS
1012945
$114.99
29
Bushing, Metal, Speedometer
3280019
$11.99
30
Flangette
5243529
$13.75
31
Key, Square, Speedometer
3280017
$13.75
32
Gasket, Drive Adaptor
5830012
$2.41
33
Adaptor w/Zerk, Drive
3280116
$101.17
