CRANKCASE - S03ND7DS (4977987798C09)

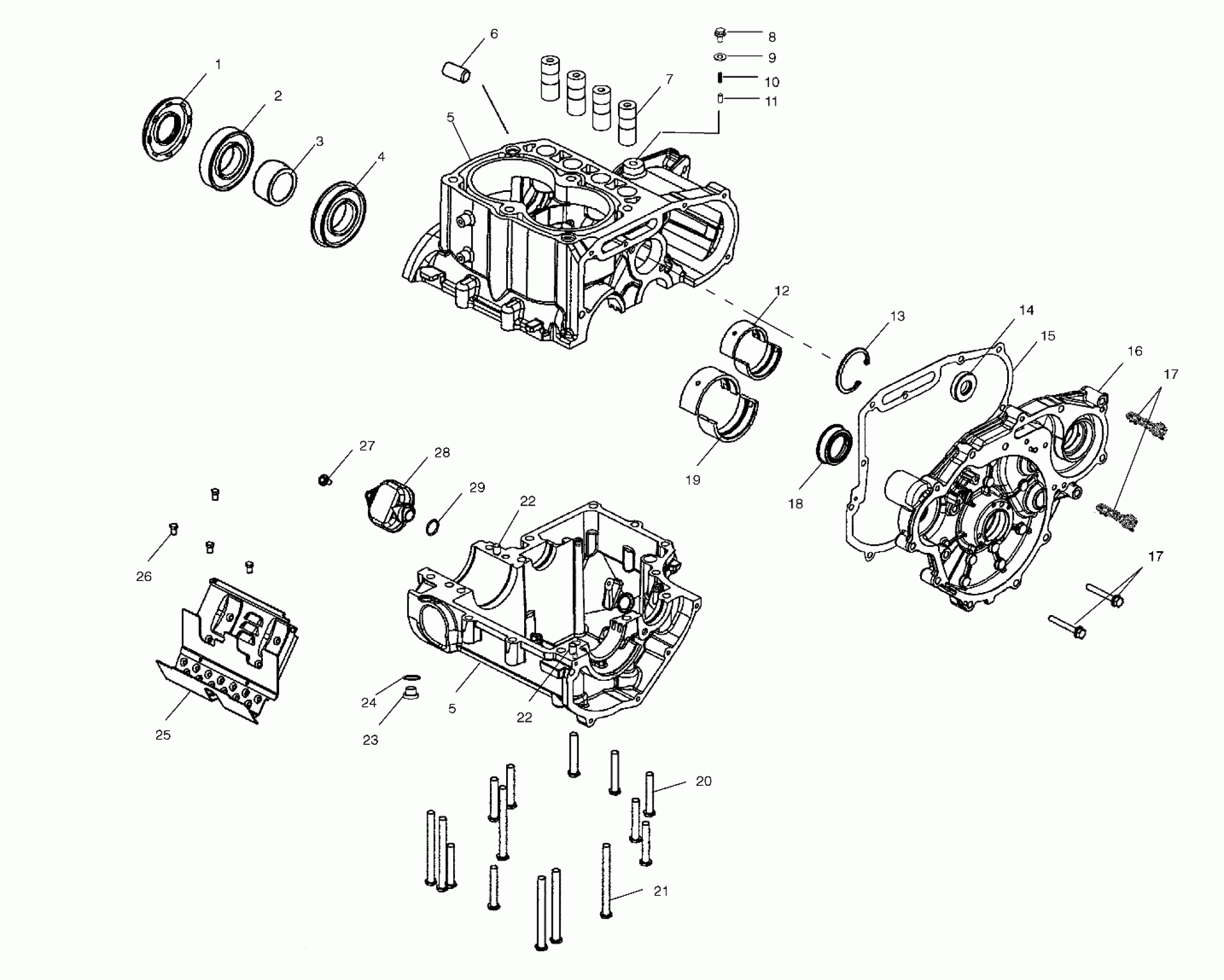

Polaris FRONTIER CLASSIC BUILT AFTER 1/01/02 - S03ND7DS CRANKCASE - S03ND7DS (4977987798C09) Diagram
#
Description
Price
1
Seal, Flanged
5412114
$39.99
2
BEARING, BALL
3514310
$39.99
3
Bushing
7556258
$36.79
4
BEARING, BALL
3514318
$43.99
5
Kit, Crankcase [Incl. 13,23-29]
2202133
Unavailable
5
Kit, Crankcase [Incl. 13,23-29]
2202133
Unavailable
6
Nipple, Oil Filter
2540023
Unavailable
7
Lifter, Valve
5131415
Unavailable
8
SCREW
7516824
$39.99
9
WASHER
7556003
$6.39
10
Spring, Pressure Relief
7041563
$12.39
11
PIN, DOWEL
7661127
$12.94
12
Bearing, Journal Balance Shaft
5132753
Unavailable
13
RING, RETAINING
7710512
$3.99
14
Seal, Oil
5411184
Unavailable
15
Gasket
5812364
$24.27
16
Asm., Cover, Engine, Magneto
1202384
$246.89
17
Screw
7517950
$5.59
17
Screw
7517950
$5.59
18
Seal, Flanged
5412048
Unavailable
19
BEARING, MAIN JOURNAL
3585704
$28.56
20
SCREW
7517793
$5.59
21
SCREW
7517792
$2.39
22
PIN-DOWEL,M8 X 16 SS
7663001
$11.19
22
PIN-DOWEL,M8 X 16 SS
7663001
$11.19
23
PLUG, SOCKET
7052306
$15.37
24
WASHER, COPPER
5812232
$1.59
25
Baffle, Oil
1202113
Unavailable
26
SCREW
7518045
$10.39
27
Screw
7516603
$10.39
28
Pickup, Oil
1201970
Unavailable
29
O-Ring
5812016
$3.19
