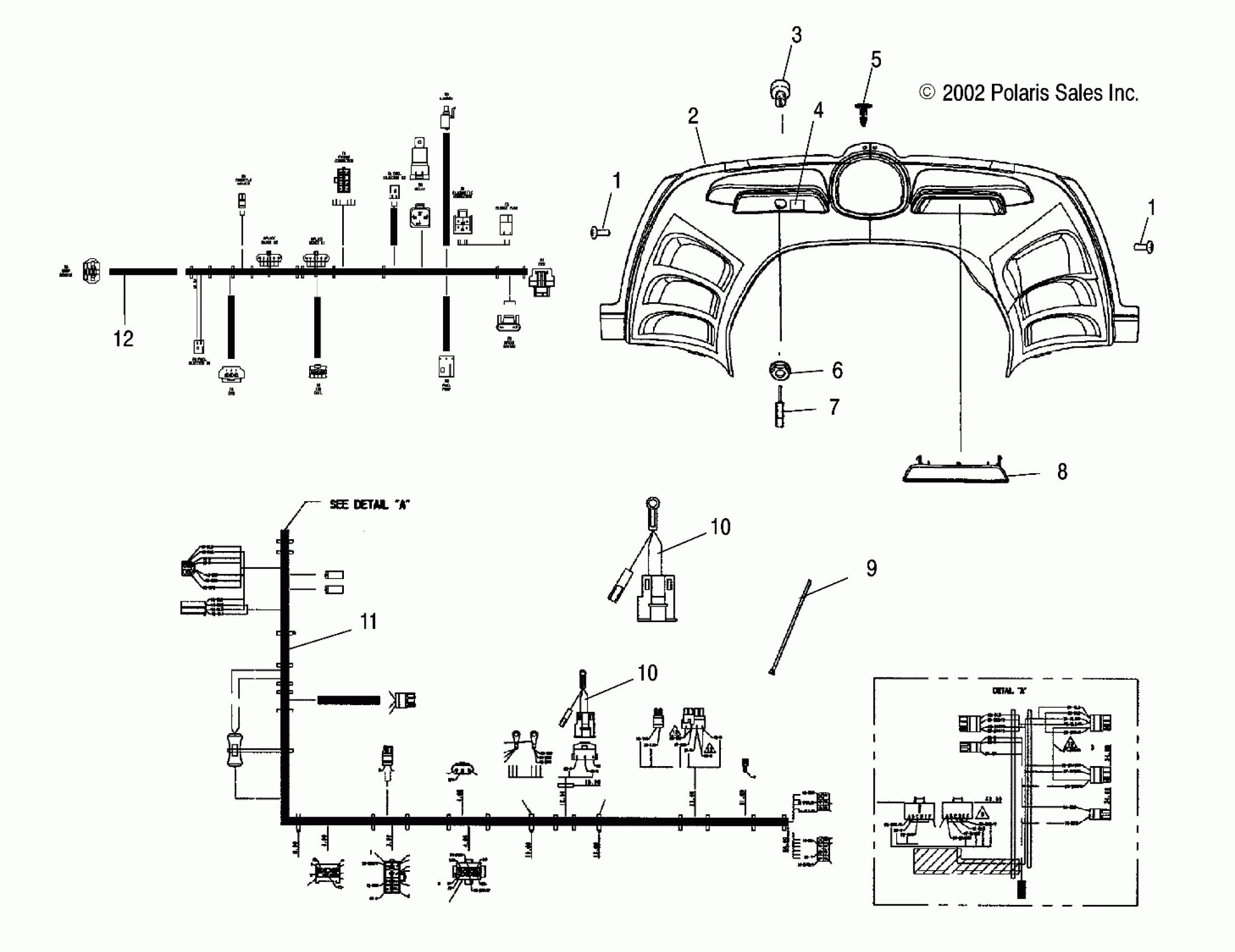

Polaris FRONTIER CLASSIC BUILT AFTER 1/01/02 - S03ND7DS CONSOLE/HARNESS - S03ND7DS (4977987798A12) Diagram

Screw

7515199

$1.49

Screw

7515199

$1.49

Console w/Foil

2632649

$74.39

Foil, Console Side

5812401

Unavailable

Foil, Console Louver

5812402

$1.19

Kit, Ignition Switch

2200358

$76.89

Decal, Ignition

7170039

Unavailable

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

Nut, Ignition

7547035

$8.79

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

Plug

5434438

$11.59

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

RELAY, SEALED

4010725

$48.87

Harness, Fuse Link

2461076

$17.43

RELAY, SEALED

4010725

$48.87

Harness, Fuse Link

2461076

$17.43

Harness, Main

2461161

$329.99

Harness, Engine, 4 Stroke

2461169

$394.99
