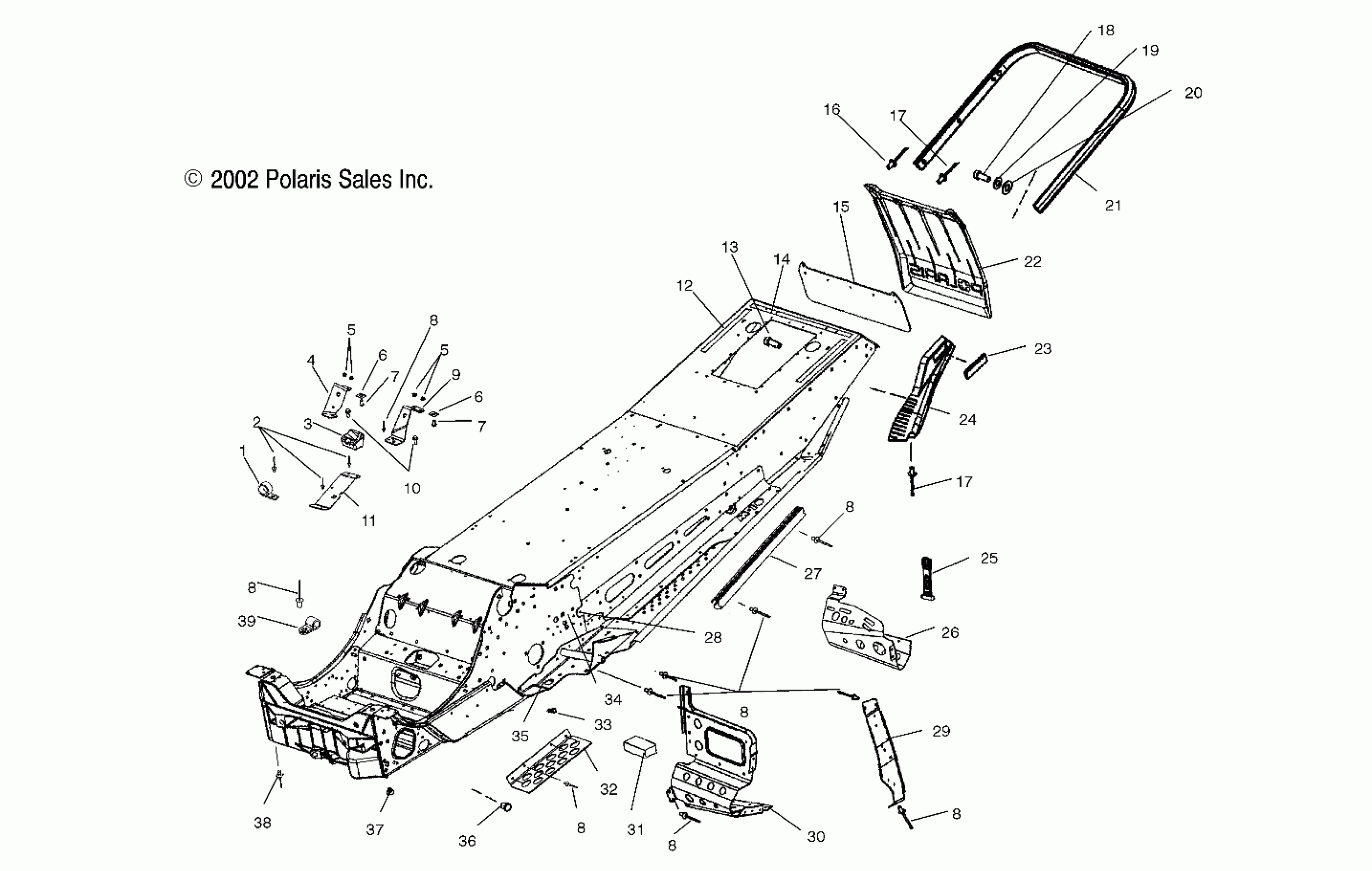

Polaris FRONTIER CLASSIC BUILT AFTER 1/01/02 - S03ND7DS CHASSIS - S03ND7DS (4977987798A03) Diagram

#

Description
Price

-

Asm., Chassis

1014147-309

Unavailable

1

CLAMP, HOSE

7080693

$5.59

2

Rivet

7621432

$1.49

3

Stop, Torque

5412224

$20.63

4

Mount, Engine, Rear, LH

1013542

$42.39

5

Nut, Nylok

7542122

$1.49

5

Nut, Nylok

7542122

$1.49

6

Nut, Speed

7670021

$6.99

6

Nut, Speed

7670021

$6.99

7

BOLT, CARRIAGE

7515203

$3.99

7

BOLT, CARRIAGE

7515203

$3.99

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

9

Mount, Engine, Rear, RH

1013543

$42.39

10

Screw

7517854

$5.59

11

Bracket, Coil w/Nuts

1013786

$41.59

12

Gasket, Seat Base

5812290

$1.49

13

Screw

7517441

$2.39

14

Gasket, Seat Base

5812360

$1.83

15

Backer, Snow Flap

5812430

Unavailable

16

RIVET

7621418

$1.49

17

RIVET

7621472

$1.49

17

RIVET

7621472

$1.49

18

BOLT

7512240

$3.99

19

WASHER, SPRING LOCK

7552801

$1.59

20

Washer, Flat

7558301

$1.49

21

Bumper, Rear, Unpainted

2632165-309

Unavailable

22

Flap, Snow

5434847-1106

$139.99

23

Reflector, Red

2670133

$5.75

24

Skirt, Snow/Reflector, LH [Incl. 23]

2632443-070

$64.75

24

Skirt, Snow/Reflector, RH [Incl. 23]

2632444-070

$55.99

25

STRAP-AIRBOX TOP

5433150

$24.27

26

Mount, Toe Clip, Console, LH

5245457

Unavailable

26

Mount, Toe Clip, Console, RH

5245458

Unavailable

27

Brace, Tunnel Roll

5245118

$23.81

28

Brace, Lower, Tunnel, LH

5244997-067

$19.83

28

Brace, Lower, Tunnel, RH

5244998-067

$19.83

29

Support, Footrest, LH

5246310

$19.83

29

Support, Footrest, RH

5246311

$32.37

30

Footrest, RH

5242740

Unavailable

30

Footrest, LH

5246914

$62.39

31

Foam, Tool

5812437

$4.95

32

Guard, Adapter

5246811

$45.59

33

PLUG, BARBED

7081085

$7.27

34

Pad, Suspension, Front, LH

5244999-067

Unavailable

34

Pad, Suspension, Front, RH

5245001-067

$24.27

35

Kit, Trailing Arm Mount, LH

2202059

$213.00

35

Kit, Trailing Arm Mount, RH

2202060

Unavailable

36

PLUG, HOLE

7080416

$5.65

37

Bushing, Open/Close

7080399

$2.39

38

Rivet

7661639

Unavailable

39

Clamp, Nylon

7080539

$4.79
