- FRONTIER CLASSIC BUILT AFTER 1/01/02 - S03ND7DS
CHAINCASE - S03ND7DS (4977987798B08)

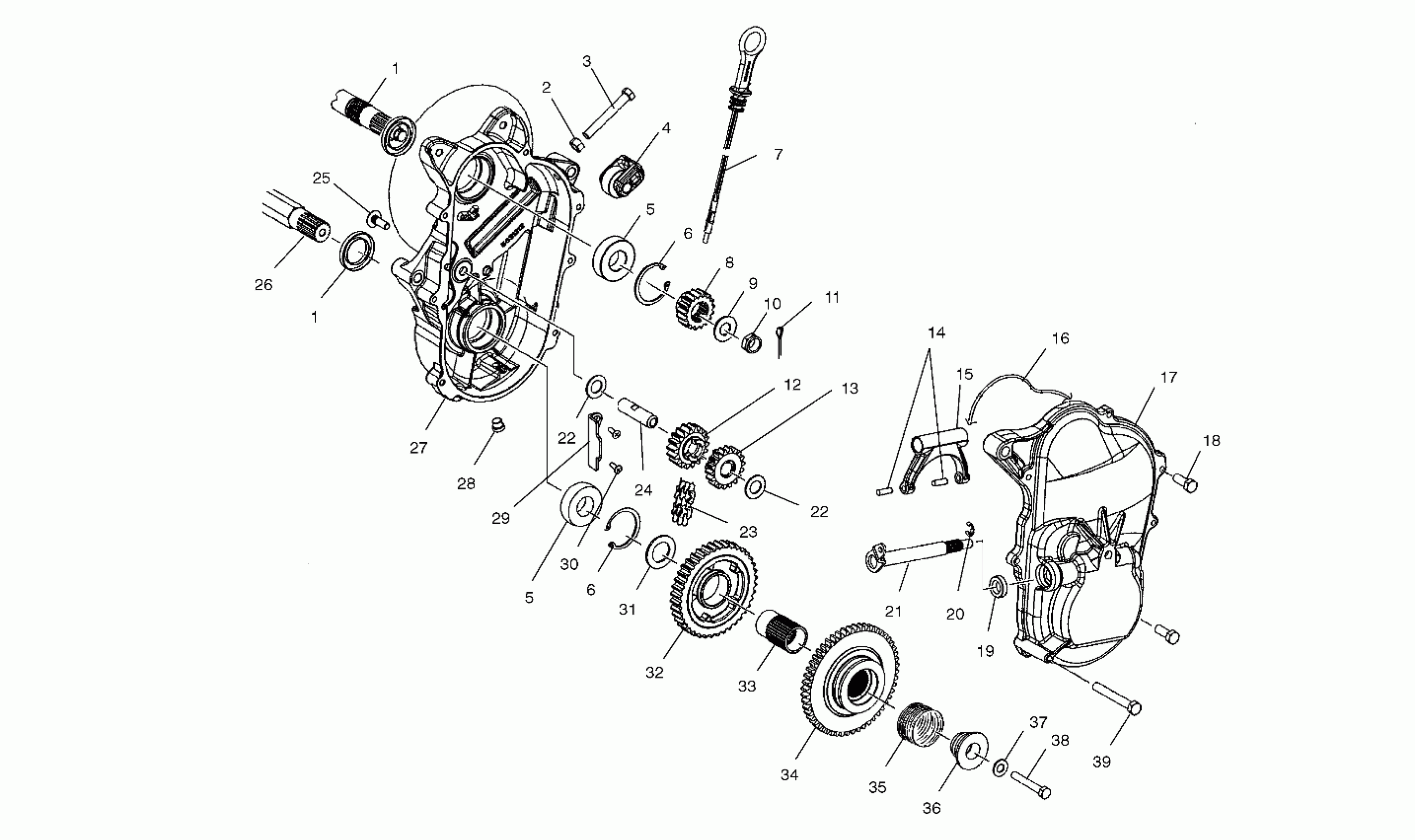

Polaris FRONTIER CLASSIC BUILT AFTER 1/01/02 - S03ND7DS CHAINCASE - S03ND7DS (4977987798B08) Diagram
#
1
SEAL-OIL
3610030
$20.22
1
SEAL-OIL
3610030
$20.22
2
NUT
7542404
$1.59
3
SCREW
7515459
$5.59
4
Asm., Tightener
1341437
$71.41
5
BEARING, BALL
3514309
$15.87
5
BEARING, BALL
3514309
$15.87
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
O-RING
5410675
$1.60
7
Asm., Dipstick [Incl. O-Ring]
1332143
$54.99
8
SPROCKET, 18T, 3/4W
3221094
$44.99
9
Washer, Spring
7571620
$7.19
10
Nut, Nylok
7547202
$5.59
11
PIN, COTTER
7661401
$1.49
12
Sprocket, Pinion, 18T, 3/4W
1341241
Unavailable
12
Bearing, Needle
3554508
$16.99
13
Gear, Pinion, Spur
1341075
$149.99
13
Bearing, Needle
3554508
$16.99
14
Pin, Dowel
7661826
$5.65
15
Kit - Shift Fork/Shaft [Incl. 14,21]
2200363
Unavailable
15
Fork, Shift
5130805
Unavailable
16
Gasket, Chaincase
5411497
$20.22
17
Cover, Chaincase
5133615
$298.99
18
SCREW
7512242
$2.39
19
Seal, Oil
3610029
$8.89
20
Ring, Retaining
7710415
$3.99
21
Shaft, Shift
1341388-067
Unavailable
22
WASHER, THRUST
7555877
$3.99
22
WASHER, THRUST
7555877
$3.99
23
CHAIN, 72P, 3/4W
3221110
$164.99
24
Shaft, Pinion
5131770
Unavailable
25
Screw
7515477
$34.99
26
ASM., JACKSHAFT [See Drive Train Pg. B9, Ref. 18]
-------
Unavailable
27
Chaincase
5133579
$113.32
28
PLUG
7052115
$5.65
29
Bracket, Chain Retention
5246421
$36.41
30
Screw
7512019
$3.99
31
Washer
7555871
$5.59
32
Sprocket, 39T, 3/4W
1341243
Unavailable
33
Coupler, Drive
5130720
Unavailable
34
Gear, Reverse
1341410
$559.99
35
Spring, Compression
7041887
$44.99
36
Retainer, Drive Coupler
5130727
Unavailable
37
WASHER, SPRING LOCK
7552901
$1.49
38
SCREW
7517581
$1.59
39
SCREW
7518052
$7.19
