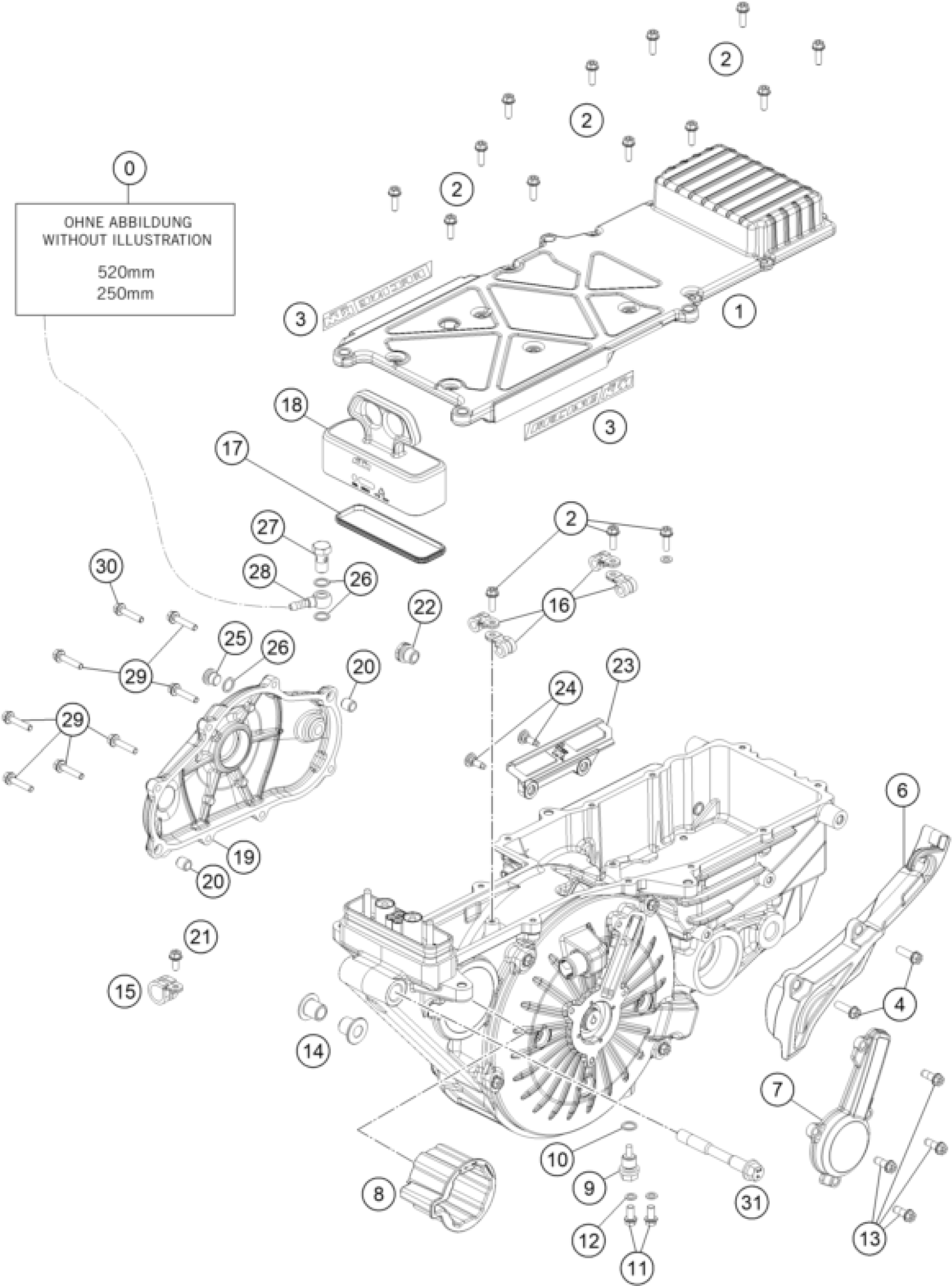

KTM FREERIDE E-SM 2016 ENGINE CASE Diagram

#

Description
Price

0

PVC-HOSE 6X9

50335030001

$6.72

1

ENGINE COVER

70045062200

$106.39

2

HH collar screw M5x16 TX30

0025050166

$2.05

3

DECAL ENGINE COVER

70045099000

$17.57

4

HH collar screw M6x20 TX30

0025060206

$3.08

6

SPROCKET COVER

70003096100

$19.53

7

ROTOR COVER OUTER

70045001200

$10.46

8

WATER PUMP SUPPORT

70035158000

$5.79

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

10

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

11

HH collar screw M6x12 TX30

0025060126

$3.08

12

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

13

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

14

BUSHING

70045058000

$5.60

15

CLAMP RSGU 15/12

49007439000

$5.23

16

BRAKE CABLE CLAMP RSGU 9/12

45001070000

$5.23

17

SEAL HV-PLUG

70045002100

$13.83

18

HV-PLUG COVER CAP

70029001005

$10.93

19

GEAR BOX COVER

70045012200

$43.10

20

DOWEL 9,8 X 7 X 10

49030090000

$2.05

21

HH collar screw M5x12 TX30

0025050126

$3.08

22

BLEEDER VALVE M12X1,5

70045084000

$40.76

23

CABLE COVER

70045005000

$14.58

24

special screw M5x17

69008021060

$3.08

25

PLUG DIN0908-M10X1 A2

0908100000

$5.23

26

sealing ring DIN 7603 10x14x1

0603100141

$2.05

27

HOLLOW SCREW M10 X 1

54313025000

$6.44

28

RING COMPONENT 10/6MM

49138493000

$10.74

29

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

30

HH collar screw M5x20 TX30

0025050206

$2.05

31

ENGINE BRACKET SCREW 85 SX

47003013000

$8.41
