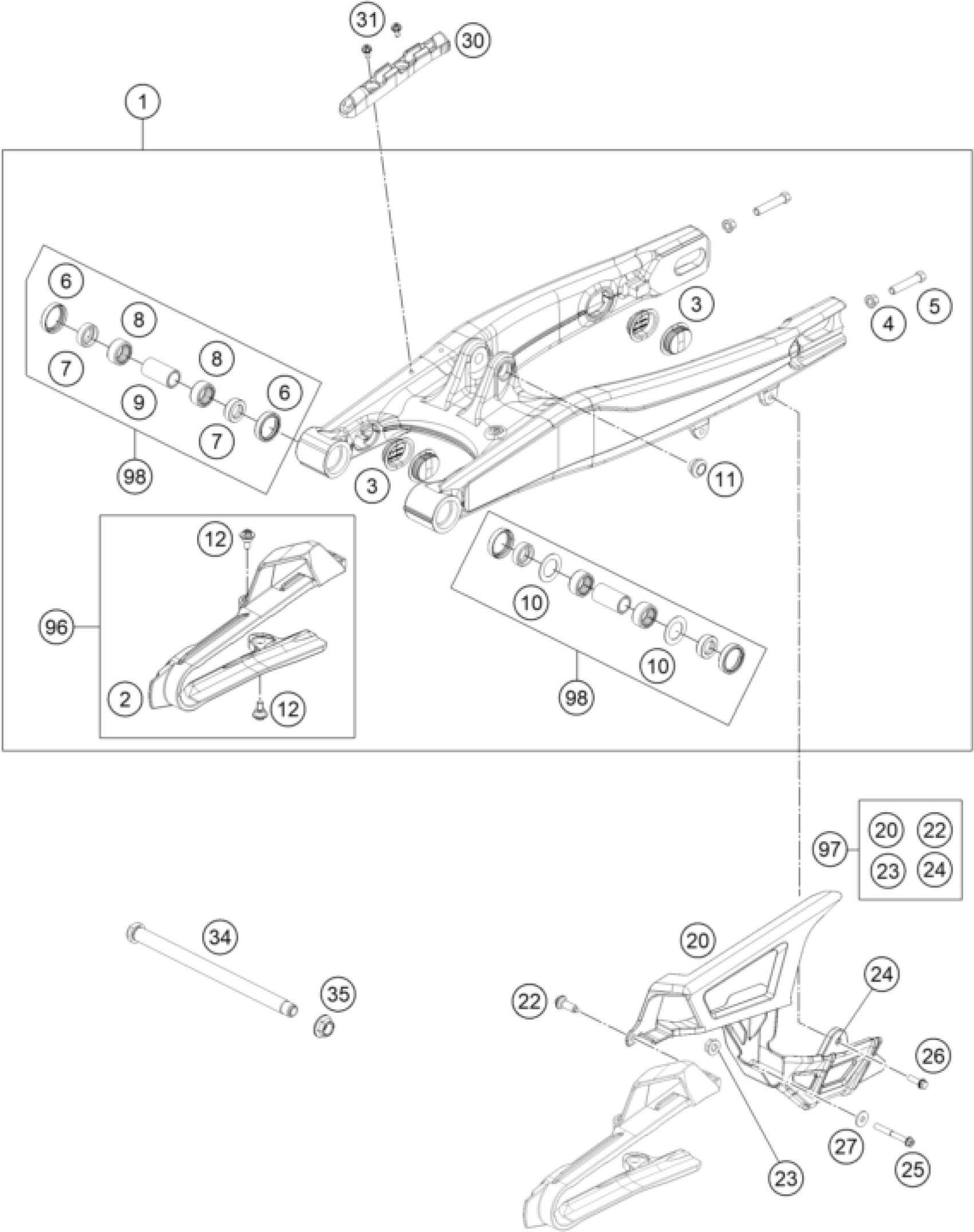

KTM FREERIDE E-SM 2015 SWING ARM Diagram

#

Description
Price

98

SWINGARM REP. KIT 105/85 SX

47004230010

Unavailable

12

Special screw M6x15x5.5

83008100015

$3.08

20

CHAIN GUARD

70004060100

Unavailable

2

CHAIN GUIDE GUARD

70004066000

$18.22

3

Locking cap swingarm

77204041000

$4.11

4

flanged nut M8 WS10

46030045000

$7.85

5

HH SCREW M8X40 WS=10

50203030090

$4.11

6

radial shaft seal 25x32x7

0760253270

$6.63

7

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

8

NEEDLE BUSH HK2012V

59004031000

$15.51

9

BUSHING SLEEVE 15X20X38,75

50203081700

$17.20

10

Shim 20x31.9x1

59033080000

$2.05

22

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

23

Self locking nut M6 - 10

56509064100

$2.05

24

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

30

BRAKE HOSE GUIDE

70013047000

$4.11

31

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

34

SWING ARM BOLT L=239 '12

70004037000

$63.57

35

hex nut M14x1.5 WS17

77204087000

$2.05

96

CHAIN GUARD KIT FREERIDE

70004066010

Unavailable

97

CHAIN PROTECTION KIT FREERIDE

70004060110

Unavailable

27

Washer DIN9021-A 6.4

0021060003

$2.05

1

SWINGARM CPL.

70004030044

$611.95

11

Threaded bush M12 d20

50180105

$15.51

25

HH collar screw M6x50 TX30

0025060506

$3.08

26

HH collar screw M6x20 TX30

0025060206

$3.08
