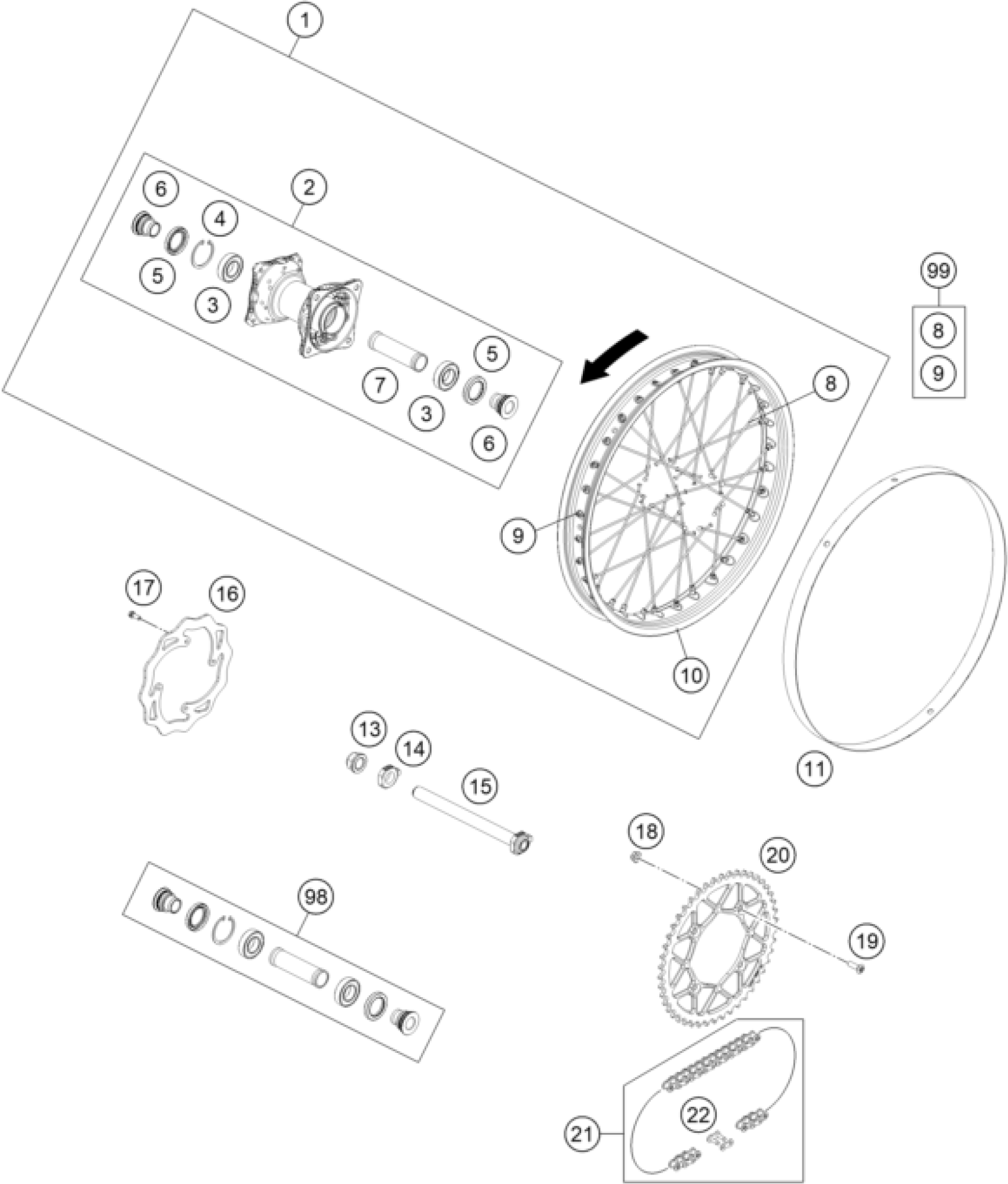

KTM FREERIDE E-SM 2015 REAR WHEEL Diagram

#

Description
Price

4

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

2

REAR WHEEL HUB CPL. 12

70010010044

$670.01

99

SPOKE KIT REAR 17''

00050000976

Unavailable

1

RE. WHEEL CPL. BK. FREER. E-SM

7001010104430

Unavailable

3

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

6

BUSHING FOR HUB 08

78010016000

$32.90

7

BEAR.SPACER TUBE ´12

70010011000

$26.17

8

SPOKE 178

70010071178

Unavailable

9

Spoke nipple M4.5 AL

77109072000

$3.08

10

RIM REAR 17X3.5-32 BLACK

7001017000030

Unavailable

11

rim tape 17"

58309073000

$15.04

13

Hexagon nut M20x1.5

50310099000

$11.30

14

Chain tensioner right 12

70010084000

$16.07

15

WHEEL SPINDLE REAR CPL. 12

70010085044

$75.17

16

BRAKE DISC REAR

70010160000

Unavailable

17

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

18

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

19

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

20

SPROCKET 40-T BLACK

7201005104030

Unavailable

21

CHAIN DID 118 LINKS

78010167118

Unavailable

22

CONNECTING LINK F. 78010167118

78010166000

Unavailable

98

REAR WHEEL REP. KIT

70010015000

Unavailable

21

CHAIN 5/8X1/4'' MX

50310165118

$84.14

22

Connecting link for 5031016511

50310166000

$6.79
