Description

Price

38

WASHER F. IGNITION LOCK 03

58411066450

$5.41

39

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable

1

DIGITAL SPEEDOMETER 17''

70014069000

Unavailable

2

SPEEDOMETER BRACKET EXC/XCW 14

77714060000

$13.74

3

Plug SFL16

50210086000

$3.08

4

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

5

HH collar screw M6x20 TX30

0025060206

$3.08

6

STEERING HEAD LOCK 08

78003035000

$20.94

7

FLASHER CONTROL LIGHT

27014081000

$30.19

8

O-RING 8,00X1,5 NBR 70

0770080015

$1.49

10

FLASHER HARNESS

72511081000

Unavailable

11

BATTERY CHARGING-LEVEL CONTROL

70045090000

$228.79

12

CABLE SUPPORT 10/6MM 06

54813026000

$2.05

13

CABLE FOR SPEEDOMETER

81314068000

$78.91

14

CLIP 5/7 MM 06

60111094000

$3.08

15

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

$20.19

16

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05

17

BATTERY COVER F. SPEEDOMETER

81314069010

$16.82

36

LOCK SYSTEM

70011066044

$83.95

37

IGNITION LOCK NUT M24X1

50311066050

$6.26

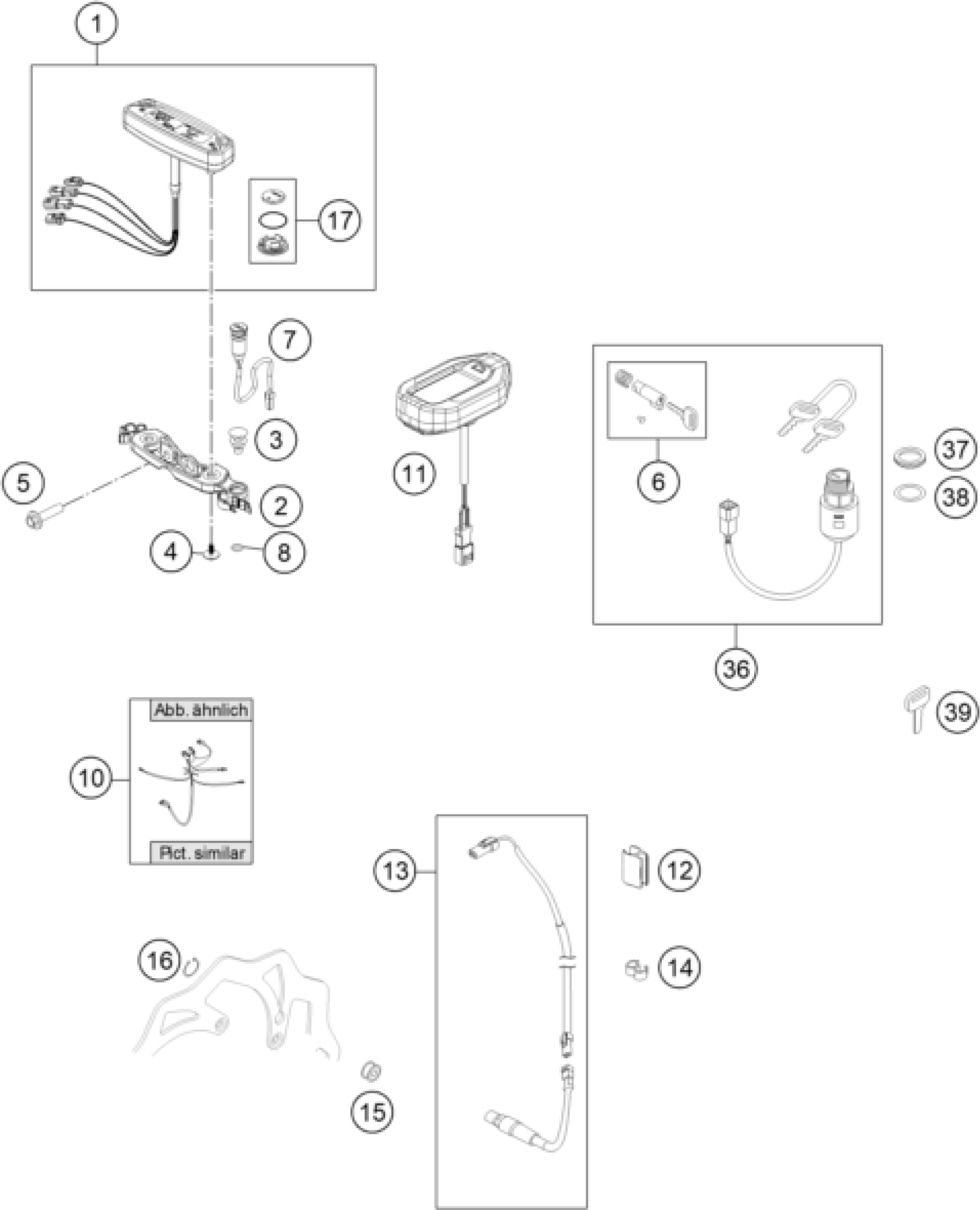

KTM FREERIDE E-SM 2015 INSTRUMENTS / LOCK SYSTEM Diagram

WASHER F. IGNITION LOCK 03

KEY BLANK BLACK ''T'' GR

DIGITAL SPEEDOMETER 17''

SPEEDOMETER BRACKET EXC/XCW 14

Plug SFL16

EJOT DELTA PT SCREW 45X12-Z

HH collar screw M6x20 TX30

STEERING HEAD LOCK 08

FLASHER CONTROL LIGHT

O-RING 8,00X1,5 NBR 70

FLASHER HARNESS

BATTERY CHARGING-LEVEL CONTROL

CABLE SUPPORT 10/6MM 06

CABLE FOR SPEEDOMETER

CLIP 5/7 MM 06

MAGNET FOR DIGITAL SPEEDOM. 03

CIRCLIP DIN0471- 9X1 INOX

BATTERY COVER F. SPEEDOMETER

LOCK SYSTEM

IGNITION LOCK NUT M24X1
