Description

Price

99

SPOKE KIT REAR 17''

00050000976

Unavailable

3

BEAR.SPACER TUBE FRONT D22MM

70009011000

$18.60

4

SHAFT SEAL RING 32X42X7 BSL

0760324271

$17.10

5

BALL BEARING 6905 J1LLUC3

0625069050

$37.20

1

FR. WHEEL CPL. BLK FREER. E-SM

7000910104430

Unavailable

2

FRONT WHEEL HUB CPL. 12

70009010044

$349.68

6

SPACER BUSHING D=22MM

70009012000

$31.03

7

SPOKE 178

70010071178

Unavailable

8

Spoke nipple M4.5 AL

77109072000

$3.08

9

RIM FRONT 17X2.5-32 BLACK

7000917000030

Unavailable

10

rim tape 17"

58309073000

$15.04

11

RIM LOCK 1,60''

78109090000

$17.57

12

NUT FOR WHEEL HOLDER

77110090050

$5.23

13

PLUG BUSHING SW17 '12

70009081050

$9.34

14

AXLE FRONT D=22 '12

70009081000

$78.91

15

AXLESCREW M20X1.5 SW17

70009082000

$9.44

16

BRAKE DISC FRONT D=260MM

72509060000

$133.23

17

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

98

FRONT WHEEL REP. KIT

70009015000

Unavailable

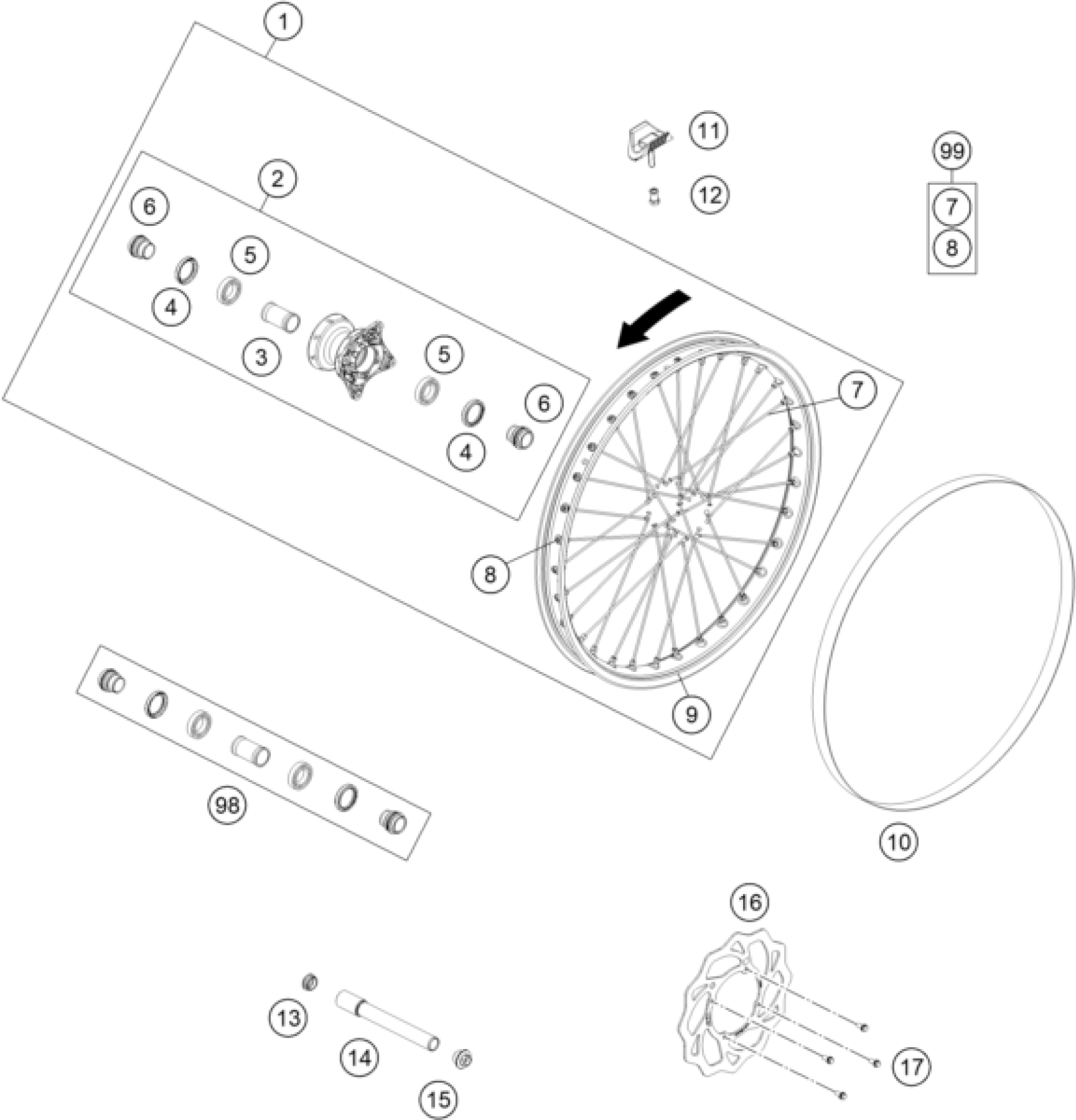

KTM FREERIDE E-SM 2015 FRONT WHEEL Diagram

SPOKE KIT REAR 17''

BEAR.SPACER TUBE FRONT D22MM

SHAFT SEAL RING 32X42X7 BSL

BALL BEARING 6905 J1LLUC3

FR. WHEEL CPL. BLK FREER. E-SM

FRONT WHEEL HUB CPL. 12

SPACER BUSHING D=22MM

SPOKE 178

Spoke nipple M4.5 AL

RIM FRONT 17X2.5-32 BLACK

rim tape 17"

RIM LOCK 1,60''

NUT FOR WHEEL HOLDER

PLUG BUSHING SW17 '12

AXLE FRONT D=22 '12

AXLESCREW M20X1.5 SW17

BRAKE DISC FRONT D=260MM

SPECIAL SCREW M6X13 WS=8 10.9

FRONT WHEEL REP. KIT
