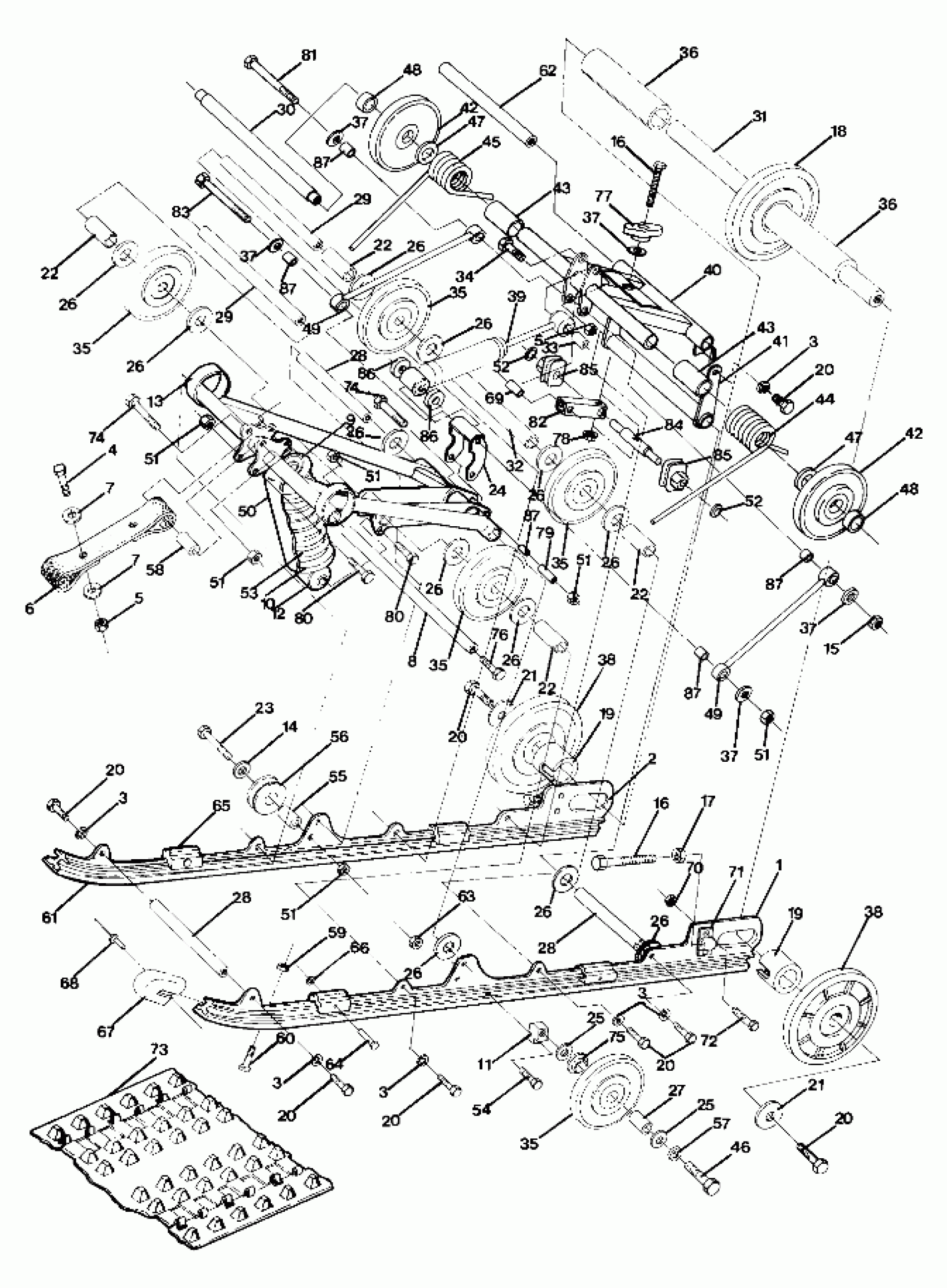

Polaris FIN TRAIL - F900761 SUSPENSION Trail (4916831683015A) Diagram
#
1
RAIL ASM., LH (Trail Deluxe)(Incl. 64-66, 70-72)
1540615
$271.99
1
RAIL ASM, LH,SILVER (Trail)(Incl. 64-66, 70-72)
1540553
Unavailable
2
RAIL ASM,RH, SILVER (Trail)(Incl. 64-66, 70-72)
1540554
Unavailable
2
RAIL ASM,RH (Trail Deluxe)(Incl. 64-66, 70-72
1540616
$271.99
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
4
BOLT(10)
7515307
$3.99
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
6
STRAP, LIMITER
5410397
Unavailable
7
WASHER(10)
7555716
$1.59
7
WASHER(10)
7555716
$1.59
8
SHAFT,MOUNTING
5010149
Unavailable
9
RETAINER-TOP
5220225
$10.39
10
SPACER,SHOCK RETAINER(10)
5210953
$6.39
11
BRACKET,BOGIE WHEEL
5130570
$48.56
12
SHOCK-SUSP
7041142
Unavailable
13
ARM,FRONT TORQUE Substituted by 1540667-067
1540667
Unavailable
14
WASHER(10)
7555743
Unavailable
15
NUT FLEX LOC,(10)
7542402
$6.39
16
BOLT, ADJUSTER(10)
7515455
$29.99
16
BOLT, ADJUSTER(10)
7515455
$29.99
17
NUT(10)
7542440
Unavailable
18
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
19
SPACER-IDLER-OUTER
5332641
Unavailable
19
SPACER-IDLER-OUTER
5332641
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
21
WASHER FLAT(10)
7555732
Unavailable
21
WASHER FLAT(10)
7555732
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
23
BOLT Substituted by 7515491
7515433
$1.59
24
ARM, SHOCK PIVOT Substituted by 1540664-067
1540664
Unavailable
25
WASHER(10)
7555804
$3.99
25
WASHER(10)
7555804
$3.99
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
27
SPACER
5332786
$7.99
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
29
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
29
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
30
AXLE Substituted by 5020906
5020426
Unavailable
31
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
32
TUBE, SUSPENSION
5332783
Unavailable
33
BUSHING,R.SHOCK
5333030
Unavailable
34
BOLT(10)
7512329
$3.99
35
WHEEL, IDLER
1543018
$56.65
35
WHEEL, IDLER
1543018
$56.65
35
WHEEL, IDLER
1543018
$56.65
35
WHEEL, IDLER
1543018
$56.65
35
WHEEL, IDLER
1543018
$56.65
36
SPACER,IDLER,R.INNER Substituted by 5333086
5332734
Unavailable
36
SPACER,IDLER,R.INNER Substituted by 5333086
5332734
Unavailable
37
WASHER(10) Substituted by 7555806
7555720
$0.79
37
WASHER(10) Substituted by 7555806
7555720
$0.79
37
WASHER(10) Substituted by 7555806
7555720
$0.79
37
WASHER(10) Substituted by 7555806
7555720
$0.79
37
WASHER(10) Substituted by 7555806
7555720
$0.79
38
WHEEL, IDLER
1594032
Unavailable
38
WHEEL, IDLER
1594032
Unavailable
39
SHOCK ASM.
7041237
Unavailable
40
ARM,REAR TORQUE Substituted by 1540666-067
1540666
Unavailable
41
ARM, REAR PIVOT Substituted by 1540665-067
1540665
Unavailable
42
WHEEL,CARRIER,ASM
1543022
$69.99
42
WHEEL,CARRIER,ASM
1543022
$69.99
43
TUBE
5431171
Unavailable
43
TUBE
5431171
Unavailable
44
SPRING, LH Substituted by 7041235-067
7041235
Unavailable
45
SPRING, RH Substituted by 7041236-067
7041236
Unavailable
46
BOLT(10)
7512659
$7.99
47
WASHER(10)
7555726
$1.59
47
WASHER(10)
7555726
$1.59
48
SPACER-CARR.WHEEL
5332730
$14.99
48
SPACER-CARR.WHEEL
5332730
$14.99
49
ROD, SUSPENSION Substituted by 1540662-067
1540662
Unavailable
49
ROD, SUSPENSION Substituted by 1540662-067
1540662
Unavailable
50
SHIELD-SPRING
5430671
$24.27
51
NUT-LOCK(10)
7542439
$1.49
51
NUT-LOCK(10)
7542439
$1.49
51
NUT-LOCK(10)
7542439
$1.49
51
NUT-LOCK(10)
7542439
$1.49
51
NUT-LOCK(10)
7542439
$1.49
51
NUT-LOCK(10)
7542439
$1.49
52
CLIP-PUSH ON
7080394
$2.39
52
CLIP-PUSH ON
7080394
$2.39
53
SPRING-SHOCK SUSP
7041140
Unavailable
54
BOLT(10)
7512404
$3.99
55
Spacer
5332787
Unavailable
56
ROLLER-SPRING
5430540
Unavailable
57
LOCK WASHER(10)
7553201
$3.99
58
BUSHING,SUSPENSION
5010212
Unavailable
59
NUT-LOCK(10)
7542122
$1.49
60
SCREW(10)
7512227
$3.19
61
SLIDE,RED,(HIFAX) Substituted by 5521321
5521104
$40.46
62
SHAFT,R.TORQUE ARM Substituted by 5020727
5020559
Unavailable
63
NUT LOCK(10)
7542403
$3.99
64
RIVET,(50)
7661609
Unavailable
65
BUMPER-SUSPENSION Substituted by 5810554
5410315
Unavailable
66
PALNUT(10)
7670009
$2.39
67
COVER-RAIL TIP
5430627
$32.37
68
RIVET(50)
7621435
$1.49
69
SPACER,R.PIVOT ARM
5333026
$3.03
71
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
72
BOLT(10)
7512247
$2.39
73
TRACK, 133 Substituted by 5410594 (Trail Deluxe Only)
5410461
Unavailable
73
TRACK Substituted by 5410498 (Trail Only)
5410492
Unavailable
74
BOLT(10)
7515438
$4.79
74
BOLT(10)
7515438
$4.79
75
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
76
BOLT(10)
7515432
Unavailable
77
KNOB, SPRING ADJ.
5630361
Unavailable
78
NUT,FLANGE LOCK(10)
7542449
$3.99
79
Spacer
5333028
$1.59
80
BOLT(10)
7515415
$1.49
80
BOLT(10)
7515415
$1.49
81
BOLT(10)
7515459
$5.59
82
TUBE
5130748
Unavailable
83
BOLT(10)
7515496
$9.59
84
ROD, SPRING ADJ.
5130746
Unavailable
85
ROLLER, SPRING ADJ.
5431168
Unavailable
85
ROLLER, SPRING ADJ.
5431168
Unavailable
86
SPACER, R.SHOCK(10)
5211224
Unavailable
86
SPACER, R.SHOCK(10)
5211224
Unavailable
87
CLIP,METAL(YOKOHAMA),(10)
5222109
Unavailable
87
BUSHING Substituted by 5020561
5333027
$1.59
87
CLIP,METAL(YOKOHAMA),(10)
5222109
Unavailable
87
BUSHING Substituted by 5020561
5333027
$1.59
87
CLIP,METAL(YOKOHAMA),(10)
5222109
Unavailable
87
BUSHING Substituted by 5020561
5333027
$1.59
87
CLIP,METAL(YOKOHAMA),(10)
5222109
Unavailable
87
BUSHING Substituted by 5020561
5333027
$1.59
87
CLIP,METAL(YOKOHAMA),(10)
5222109
Unavailable
87
BUSHING Substituted by 5020561
5333027
$1.59
