CHASSIS AND SEAT Trail Updated 2/90 (4916831683001A)

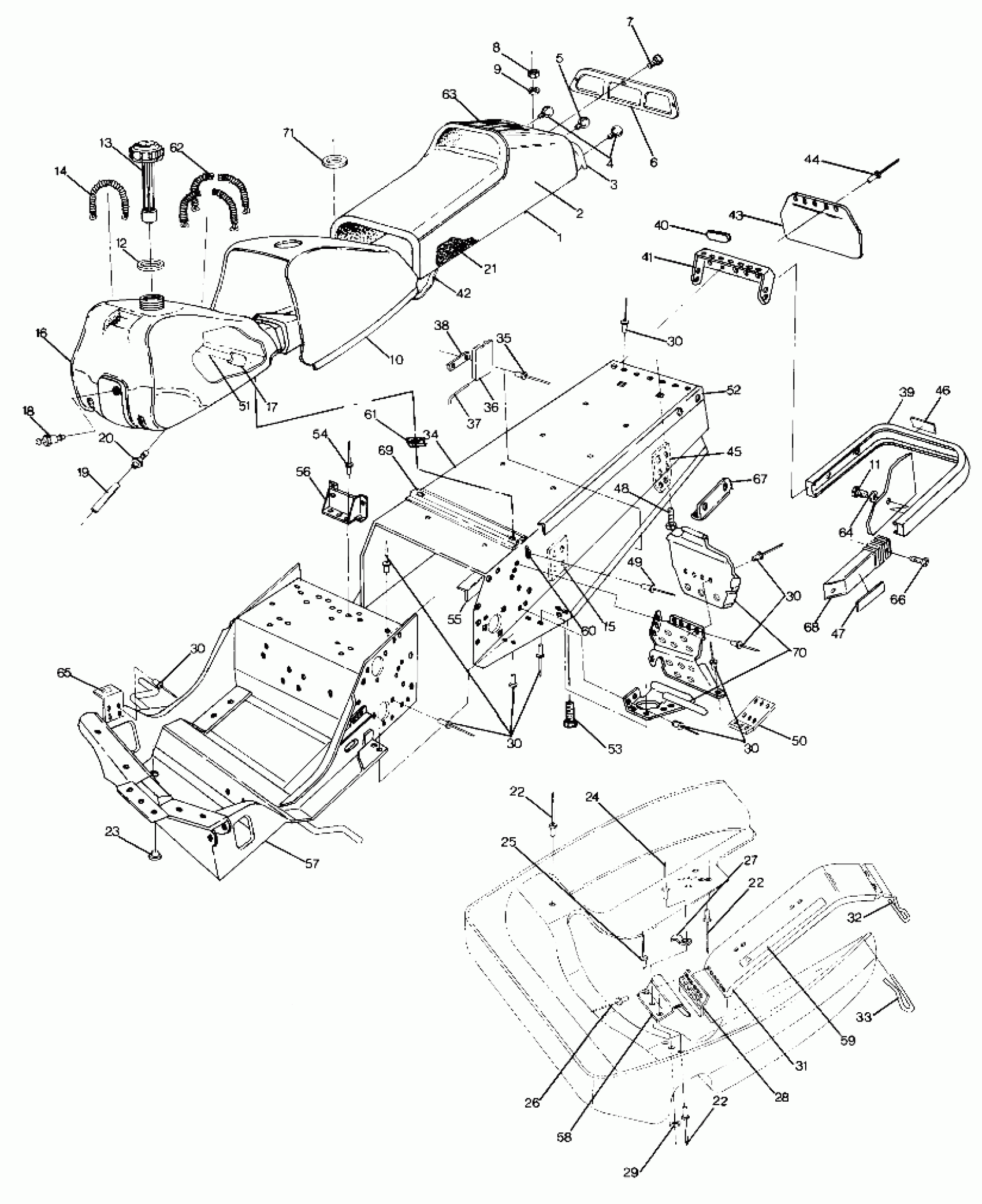

Polaris FIN TRAIL - F900761 CHASSIS AND SEAT Trail Updated 2/90 (4916831683001A) Diagram
#
1
SEAT, (TRAIL) (Incl. 2-7,21,63)
2681440
Unavailable
2
COVER,SEAT [No Longer Available]
2681441
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
COVER,TANK.(TRAIL'90)
2681475
Unavailable
11
BOLT(10)
7512240
$3.99
12
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
13
CAP,GAS(HI.CAP.)
2511184
Unavailable
14
SPRING,TANK,(10)
7042020
$13.75
15
BRKT. Substituted by 5220542-067
5220542
Unavailable
16
TANK, GAS Substituted by 2511199
2511185
Unavailable
17
FUELPICKUP,W/STRAINER
7052037
$12.94
18
FITTING - OUTLET(10)
7052023
$24.99
19
KIT-TANK VENT
2200190
Unavailable
20
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
21
BUN, SEAT [No Longer Available]
5431134
Unavailable
22
RIVET(50)
7621457
$1.49
22
RIVET(50)
7621457
$1.49
22
RIVET(50)
7621457
$1.49
23
PLUG
7080288
Unavailable
24
POP RIVET(50)
7621402
$1.49
25
RIVET(50)
7621452
$1.49
26
RIVET, POP(50)
7621330
$1.49
27
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
28
HINGE
5211047
$3.49
29
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
31
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
32
PIN,RETAINING,(10)
7080216
$9.70
33
PIN, FRONT
7080311
Unavailable
34
TUNNEL,(TRAIL) [No Longer Available]
1011776
Unavailable
35
POP RIVET(50)
7621323
$1.49
36
BELT,SEAT
7080322
Unavailable
37
WIRE-SEAT-BELT
5223864
Unavailable
38
PLATE-SEAT BELT
5210842
Unavailable
39
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
39
BUMPER,R.(N-INDY) Substituted by 5224347-067
5224347
Unavailable
40
DECAL, TRACK [No Longer Available]
7072872
Unavailable
41
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
42
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
43
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
44
POP RIVET(50)
7621418
$1.49
45
BRKT,R.SUSP,RH MTG. Substituted by 1011750-067
1011667
Unavailable
45
BRKT,R.SUSP,LH MTG. Substituted by 1011749-067
1011666
Unavailable
46
DECAL,36'',R.BUMP [No Longer Available]
7072582
Unavailable
47
REFLECTOR RED
2670070
$9.91
48
BOLT(10)
7512103
$3.19
49
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
50
PLATE,TUNNEL,LH
5220634
Unavailable
50
PLATE,TUNNEL,RH
5220635
Unavailable
51
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
52
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
53
BOLT(10)
7512193
$2.39
56
BRKT,GASTANK,WELD. Substituted by 1011733-067
1011733
Unavailable
57
BULKHEAD, (TRAIL)
1011612
Unavailable
58
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
59
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
60
SNAP-MALE(10)
7080227
Unavailable
61
SPEED NUT(10)
7670021
$6.99
62
SPRING, TANK
7042033
Unavailable
63
BUCKLE&STRAP
2681291
Unavailable
64
WASHER(10)
7558301
$1.49
65
SUPPORT, MUFFLER Substituted by 1011601-067
1011601
Unavailable
66
SCREW-SEMS(10)
7511848
$3.99
67
WEARPLATE,TUNNEL
5222061
Unavailable
68
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
69
BRKT,R.FUELTANK MTG. Substituted by 5222375-067
5222375
Unavailable
70
FOOTREST ASM,LH
2200250
Unavailable
70
FOOTREST ASM,RH
2200254
Unavailable
71
REFLECTOR
5430781
Unavailable
71
DESC NOT_AVAILABLE
543119O
Unavailable
