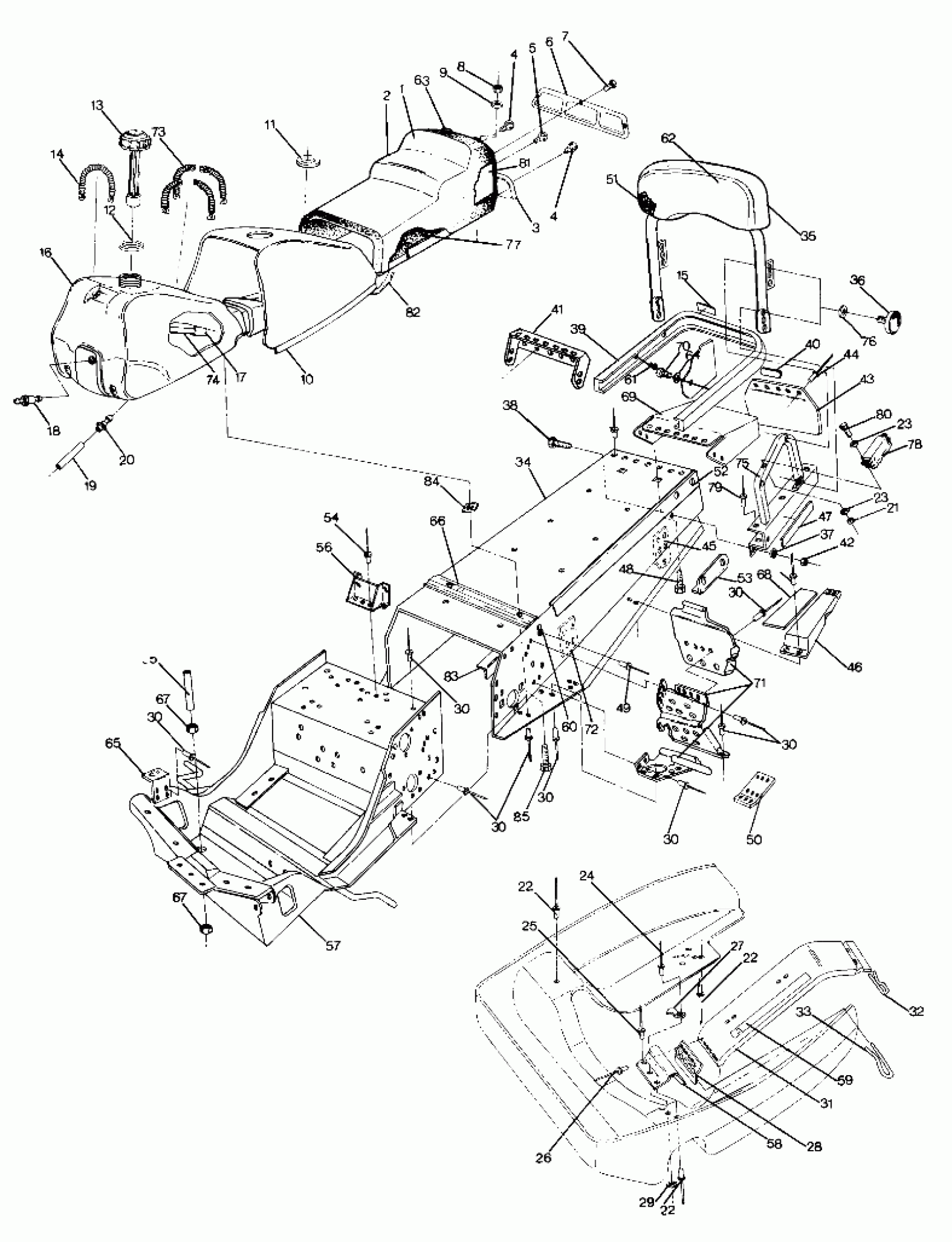

Polaris FIN TRAIL - F900761 CHASSIS AND SEAT Trail Deluxe Updated 2/90 (4916831683003A) Diagram

SEAT,(TRAIL DELUXE) Substituted by 2200746 (Incl. 2-7, 63, 77)

2681443

Unavailable

COVER, SEAT Substituted by 2200743

2681444

Unavailable

HOUSING,TAILLIGHT

5430425

Unavailable

BULB TAILLIGHT(10)

4030015

$4.03

BULB TAILLIGHT(10)

4030015

$4.03

BULB, BRAKELIGHT

4030019

Unavailable

LENS,TAILLIGHT

5430423

Unavailable

SCREW(10)

7511840

Unavailable

NUT-LOCK(10)

7542122

$1.49

WASHER(10)

7558221

$2.39

COVER,TANK

2681442

Unavailable

GROMMET,GAS TANK [No Longer Available]

5431190

Unavailable

GASKET-GAS CAP Substituted by 5810513

5810142

Unavailable

CAP,GAS(HI.CAP.)

2511184

Unavailable

SPRING,TANK,(10)

7042020

$13.75

DECAL,36'',R.BUMP [No Longer Available]

7072582

Unavailable

TANK, GAS Substituted by 2511199

2511185

Unavailable

FUELPICKUP,W/STRAINER

7052037

$12.94

FITTING - OUTLET(10)

7052023

$24.99

KIT-TANK VENT

2200190

Unavailable

VENT FITTING,TANK Substituted by 5430579

5430669

Unavailable

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable

RIVET(50)

7621457

$1.49

RIVET(50)

7621457

$1.49

RIVET(50)

7621457

$1.49

WASHER(10)

7555783

$3.99

WASHER(10)

7555783

$3.99

POP RIVET(50)

7621402

$1.49

RIVET(50)

7621452

$1.49

RIVET, POP(50)

7621330

$1.49

CLIP, WIRING,(10) Substituted by 7080665

4020035

Unavailable

HINGE

5211047

$3.49

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

GUARD,CLUTCH Substituted by 5240965

5230118

Unavailable

PIN,RETAINING,(10)

7080216

$9.70

PIN, FRONT

7080311

Unavailable

TUNNEL,(TRAIL DELUXE)

1011774

Unavailable

BACKREST ASM. (Incl. 51, 62)

2681449

Unavailable

KNOB,ADJ. Substituted by 2670130

7030007

Unavailable

WASHER,WROUGHT(10)

7558302

$1.59

BOLT(10)

7512325

$2.39

BUMPER, REAR Substituted by 2670122

5224420

Unavailable

DESC NOT_AVAILABLE

5224421

Unavailable

DECAL, TRACK [No Longer Available]

7072872

Unavailable

PANEL, BACK [No Longer Available]

5220767

Unavailable

NUT-5/16-18 NYLOK-Y

7542324

$1.49

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

POP RIVET(50)

7621418

$1.49

BRKT,R.SUSP,RH MTG. Substituted by 1011750-067

1011667

Unavailable

BRKT,R.SUSP,LH MTG. Substituted by 1011749-067

1011666

Unavailable

FOOTREST,LH REAR

5220893

Unavailable

FOOTREST,RH REAR

5220894

$32.15

FOOTREST,RH LOWER Substituted by 5220643-067

5220643

Unavailable

FOOTREST,LH LOWER Substituted by 5220642-067

5220642

Unavailable

REFLECTOR RED

2670070

$9.91

SCREW(10)

7512116

Unavailable

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

PLATE,TUNNEL,LH

5220634

Unavailable

PLATE,TUNNEL,RH

5220635

Unavailable

FOAM, BACKREST [No Longer Available]

2681456

Unavailable

BACKREST ASM, FOAM [No Longer Available]

2681341

Unavailable

DECAL(47.5'')TUNNEL [No Longer Available]

7072078

Unavailable

WEARPLATE,TUNNEL

5222061

Unavailable

RIVET(50)

7621301

$3.99

TUBE, BATT.DRAIN Substituted by 5332405

5332893

Unavailable

BRKT,GASTANK,WELD. Substituted by 1011733-067

1011733

Unavailable

BULKHEAD Substituted by 1011612

1011673

Unavailable

BRACKET, HINGE Substituted by 5241437

5220406

Unavailable

DECAL,ENG/CLUTCH [No Longer Available]

7072871

Unavailable

SNAP-MALE(10)

7080227

Unavailable

RIVNUT(10)

7542130

$6.23

COVER, BACKREST

2681450

Unavailable

BUCKLE&STRAP

2681291

Unavailable

SUPPORT, MUFFLER Substituted by 1011601-067

1011601

Unavailable

BRKT,R.FUELTANK MTG. Substituted by 5222375-067

5222375

Unavailable

PALNUT(10)

7670031

Unavailable

PALNUT(10)

7670031

Unavailable

PAD,LH FOOT SAFETY

5830007

$7.89

PAD,RH FOOT SAFETY

5830008

$4.92

PANEL,CLOSE-OFF,REAR Substituted by 1011694-067 (Incl. 41)

1011694

Unavailable

FOOTREST ASM,LH

2200250

Unavailable

FOOTREST ASM,RH

2200254

Unavailable

BRKT. Substituted by 5220542-067

5220542

Unavailable

SPRING, TANK

7042033

Unavailable

GAS LINE, (FT.) [Cannot Purchase as Assembly]

8450003

Unavailable

GRAB BAR,LH Substituted by 1011729-067

1011729

Unavailable

GRAB BAR,RH Substituted by 1011730-067

1011730

Unavailable

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

BUN, SEAT [No Longer Available]

5431135

Unavailable

GRIP, HAND Substituted by 5433383

5431015

$19.68

RIVET(50)

7621429

$1.49

SCREW(10)

7510504

$6.76

BOX,TOOL,(2-UP SEAT) Substituted by 5431345

5430925

Unavailable

HARNESS-TAILLIGHT Substituted by 2460399

2460226

Unavailable

BRACE,TUNNEL REINF.

5222412

Unavailable

SPEED NUT(10)

7670021

$6.99

BOLT(10)

7512193

$2.39

SPRING,HOOD CABLE

7041202

Unavailable

REFLECTOR

5430781

Unavailable

BRACKET, HITCH

5220941

Unavailable

BRACKET-CLUTCH GUARD [No Longer Available]

5223798

Unavailable

COVER,TANK.(TRAIL'90)

2681475

Unavailable

DECAL,TUNNEL,REAR [No Longer Available]

7072897

Unavailable

DESC NOT_AVAILABLE

5222112

Unavailable
