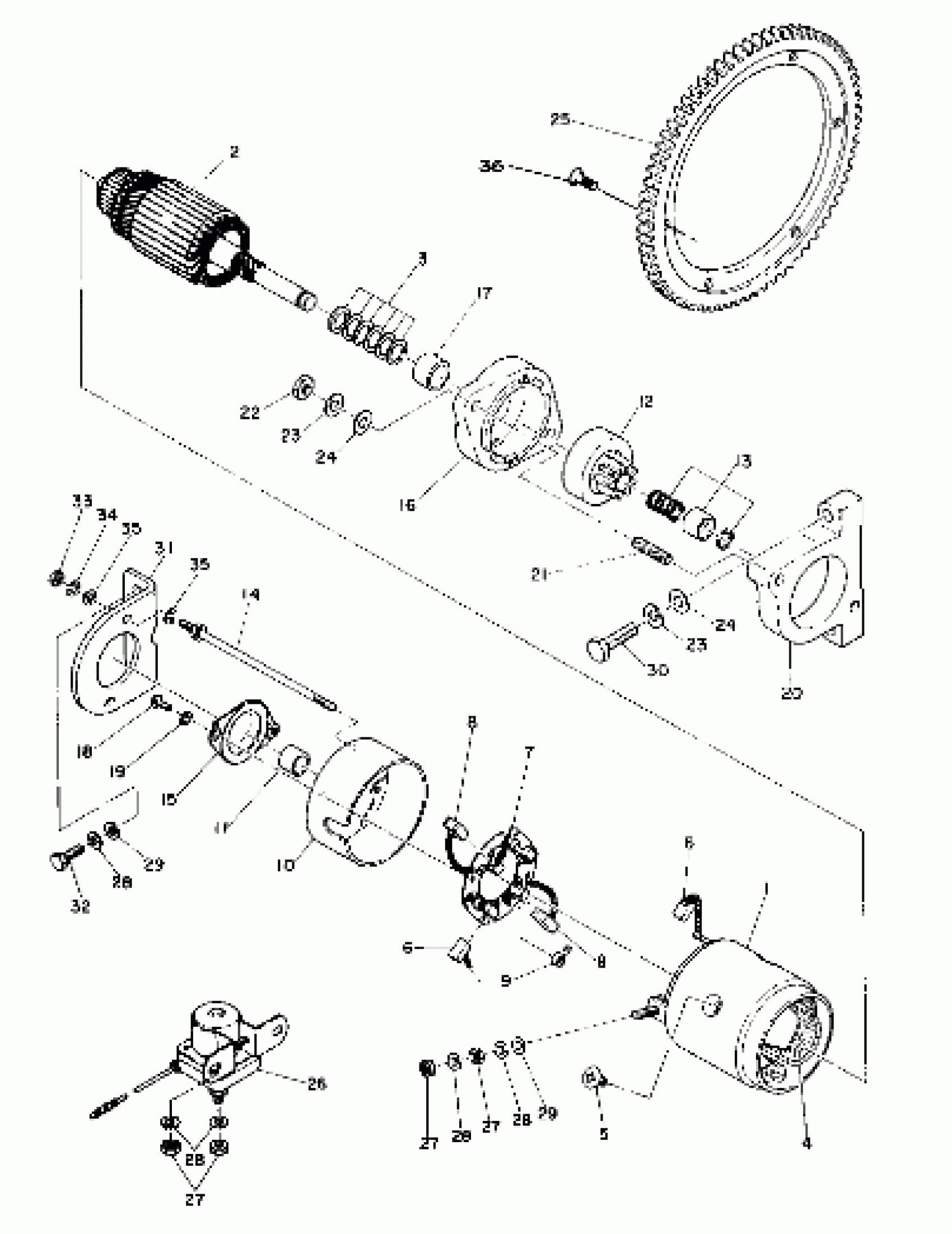

Polaris FIN STAR - F850927 Starter (4909550955023A) Diagram
#
1
MOTOR-STARTER (Incl. 2-19, 27-29) (Twin ES)
3083189
Unavailable
2
ARMATURE ASM Substituted by 3084115 (Twin ES)
3083190
Unavailable
3
KIT-WASHER (Twin ES)
3083191
Unavailable
4
COIL-FIELD (Incl. 5, 6) (Twin ES)
3083192
Unavailable
5
SCREW-POLE CORE SET (Twin ES)
3083193
Unavailable
6
BRUSH, (+) (+) (Twin ES)
3083194
Unavailable
6
BRUSH, (+) (+) (Twin ES)
3083194
Unavailable
7
HOLDER ASM,BRUSH (Incl. 8, 9) (Twin ES)
3083195
Unavailable
8
BRUSH, (-) (-) (Twin ES)
3083196
Unavailable
8
BRUSH, (-) (-) (Twin ES)
3083196
Unavailable
9
SPRING-BRUSH (Twin ES)
3083197
Unavailable
10
COVER ASM-REAR (Incl. 11) (Twin ES)
3083198
Unavailable
11
COVER-REAR METAL (Twin ES)
3083199
Unavailable
12
PINION ASM (Twin ES)
3083201
Unavailable
13
SET-PINION STOPPER Substituted by 3084116 (Twin ES)
3083202
Unavailable
14
BOLT-THROUGH (Twin ES)
3083203
Unavailable
15
COVER-DUST (Twin ES)
3083204
Unavailable
16
COVER ASM-FRONT. (Incl. 17) (Twin ES)
3083205
Unavailable
17
BUSHING,METAL,FRONT (Twin ES)
3083206
Unavailable
18
SCREW (Twin ES)
3083207
Unavailable
19
WASHER-SPRING(10) (Twin ES)
3083208
Unavailable
20
BRACKET (Twin ES)
3083535
Unavailable
21
STUD (Twin ES)
3083210
Unavailable
22
NUT Substituted by 3081086 (Twin ES)
3080048
Unavailable
23
WASHER LOCK ,(10) (Twin ES)
3080530
$3.19
23
WASHER LOCK ,(10) (Twin ES)
3080530
$3.19
24
WASHER(10) (Twin ES)
3080142
$3.99
24
WASHER(10) (Twin ES)
3080142
$3.99
25
GEAR, RING (Twin ES)
3083075
Unavailable
26
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 27, 28) (Twin ES)
3083211
Unavailable
27
NUT(10) (Twin ES)
3082939
Unavailable
27
NUT(10) (Twin ES)
3082939
Unavailable
27
NUT(10) (Twin ES)
3082939
Unavailable
28
WASHER SPRING(10) (Twin ES)
3080077
$2.39
28
WASHER SPRING(10) (Twin ES)
3080077
$2.39
28
WASHER SPRING(10) (Twin ES)
3080077
$2.39
28
WASHER SPRING(10) (Twin ES)
3080077
$2.39
29
WASHER(10) (Twin ES)
3080078
Unavailable
29
WASHER(10) (Twin ES)
3080078
Unavailable
30
BOLT (Twin ES)
3083229
Unavailable
31
BRACKET #1 (Twin ES)
3083213
$22.23
32
BOLT(10) [No Longer Available] (Twin ES)
3083214
Unavailable
33
NUT(10) (Twin ES)
3083042
Unavailable
34
WASHER SPRING(10) (Twin ES)
3083133
Unavailable
35
WASHER Substituted by 3083774 (Twin ES)
3083134
Unavailable
35
WASHER Substituted by 3083774 (Twin ES)
3083134
Unavailable
