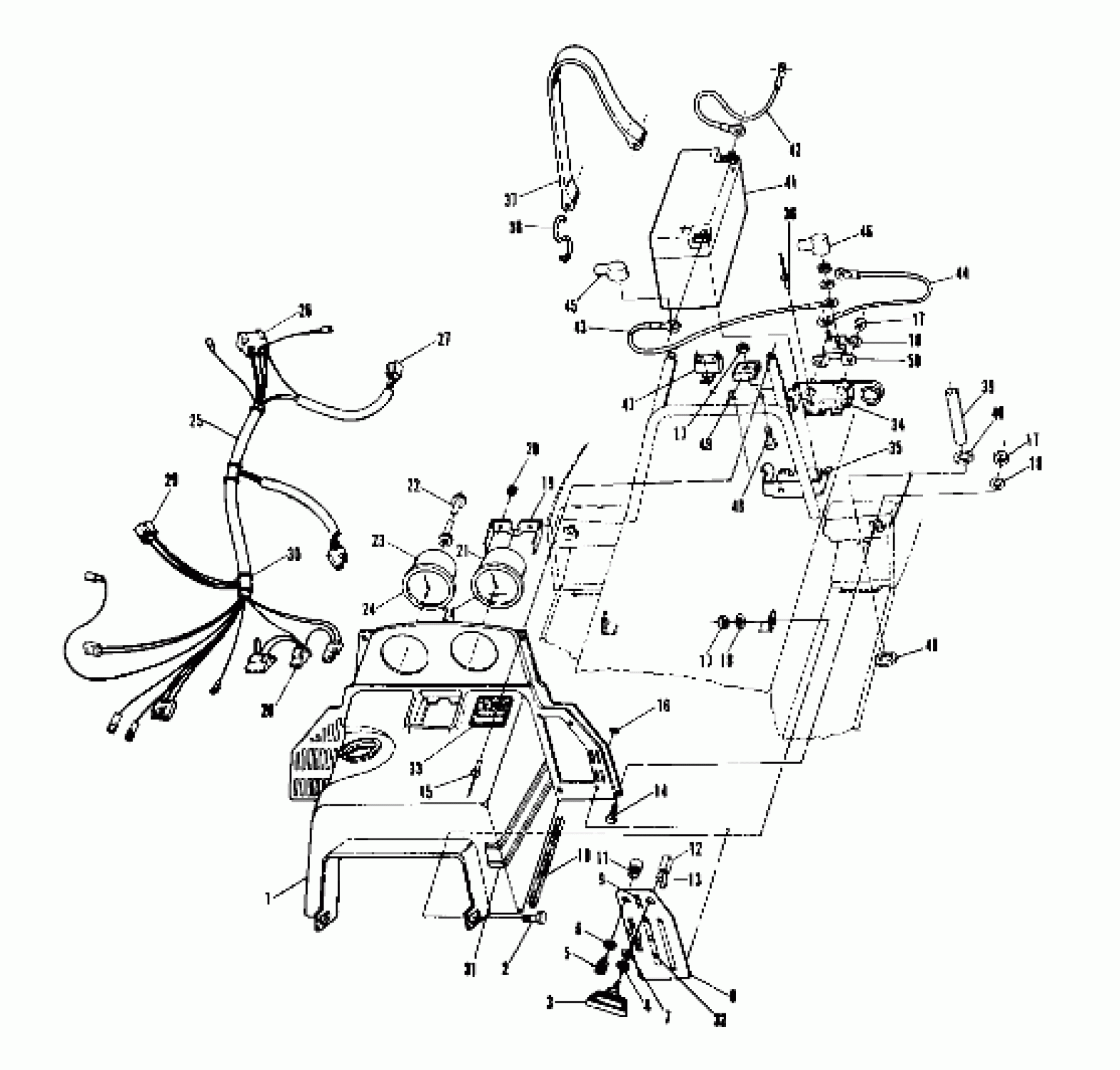

Polaris FIN STAR - F850927 Console and Electrical (4909550955004A) Diagram
#
1
CONSOLE-TANK COVER [No Longer Available] (Twin)
5430677
Unavailable
1
CONSOLE-TANK COVER Substituted by 5430677 (Twin ES)
5430609
Unavailable
2
SCREW(10)
7511989
Unavailable
3
HANDLE-RECOIL
5430520
Unavailable
4
Nut
7080229
$19.99
5
KEY, IGNITION
5410378
$13.75
6
NUT-IGNITION SWITCH
7542807
Unavailable
7
WASHER-LOCK(10)
7571610
$3.99
8
INSERT-RECOIL CONSOLE [No Longer Available]
5430605
Unavailable
9
DECAL-IGN.SWITCH [No Longer Available] (Twin)
7071744
Unavailable
9
DECAL, IGNITION SWITCH [No Longer Available] (Twin ES)
7072170
Unavailable
10
REINFORCE.-CONSOLE [No Longer Available]
5220337
Unavailable
11
SWITCH IGNITION (Twin)
4110038
$44.51
11
SWITCH-E/S (Twin ES)
4110061
Unavailable
12
Cable, Choke Control
7080290
$105.22
13
KIT-CHOKE CONTROL
2200188
$24.27
14
SCREW(10)
7511990
Unavailable
15
RIVET(50)
7621462
$1.49
16
PALNUT(10)
7670009
$2.39
17
NUT(10) (Twin)
7541925
$1.49
17
NUT(10) (Twin)
7541925
$1.49
17
NUT(10) (Twin)
7541925
$1.49
17
NUT(10) (Twin)
7541925
$1.49
18
WASHER(10) (Twin)
7558203
$3.19
18
WASHER(10) (Twin)
7558203
$3.19
18
WASHER(10) (Twin)
7558203
$3.19
19
BRACKET [No Longer Available] (Twin ES)
3280062
Unavailable
20
NUT (Twin ES)
3280063
Unavailable
21
HEAD-TACHOMETER [No Longer Available] (Twin ES)
3280066
Unavailable
22
CABLE-SPEEDO (Twin ES)
3280052
Unavailable
23
HEAD-SPEEDOMETER [No Longer Available] (Twin ES)
3280064
Unavailable
24
KIT-GLASS&BEZEL [No Longer Available] (Replacement) (Twin ES)
2200205
Unavailable
25
HARNESS-WIRE E/S (Electric Start) (Twin ES)
2460223
Unavailable
25
HARNESS, WIRE (Incl. 26-30) - Main
2460230
Unavailable
26
HOUSING, W/TABS [No Longer Available]
2200074
Unavailable
27
KIT-HOUSING
2200044
Unavailable
28
KIT.2 CKT.HOUSING [No Longer Available]
2200163
Unavailable
29
HOUSING 2 CIRCUIT W/REC [No Longer Available]
2200020
Unavailable
30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
Unavailable
31
DECAL, TANK COVER [No Longer Available]
7072080
Unavailable
32
DECAL SIGHT GAUGE [No Longer Available]
7071847
Unavailable
33
EMBLEM, 30 YR.,GOLD
5430740
Unavailable
34
BRACKET-FRONT [No Longer Available] (Twin ES)
1011443
Unavailable
35
BRKT.,BATTERY,REAR(PTD.) (Twin ES)
5220257
Unavailable
36
RIVET(50) (Twin ES)
7621318
$1.49
37
STRAP-BATTERY (Twin ES)
5430621
$20.22
38
HOOK-BATT.H/D(10) (Twin ES)
7010032
$1.59
39
TUBE,DRAIN BATTERY [No Longer Available] (Twin ES)
5332405
Unavailable
40
PALNUT(10) (Twin ES)
7670031
Unavailable
40
PALNUT(10) (Twin ES)
7670031
Unavailable
41
BATTERY (Twin ES)
4140004
Unavailable
42
CABLE-STARTER-14 IN. [No Longer Available] (Twin ES)
4010057
$12.39
43
CABLE-START-16 IN RD. [No Longer Available] (Twin ES)
4010058
Unavailable
44
CABLE-START.22IN.BLK (Twin ES)
4010059
Unavailable
45
INSUL.CABLE BATT. [No Longer Available] (Twin ES)
5410347
Unavailable
46
INSULATOR-CABLE (Twin ES)
5410346
$6.39
47
CIRCUIT BREAKER (Twin ES)
2434008
Unavailable
48
SCREW(10) (Twin ES)
7511930
$2.39
49
RECTIFIER (Twin ES)
4060064
Unavailable
50
SWITCH-MAGNETIC Substituted by 3085521 (See page 23) (Twin ES)
3083211
Unavailable
