BRAKE AND CHAINCASE Sport and Trail (4914161416013A)

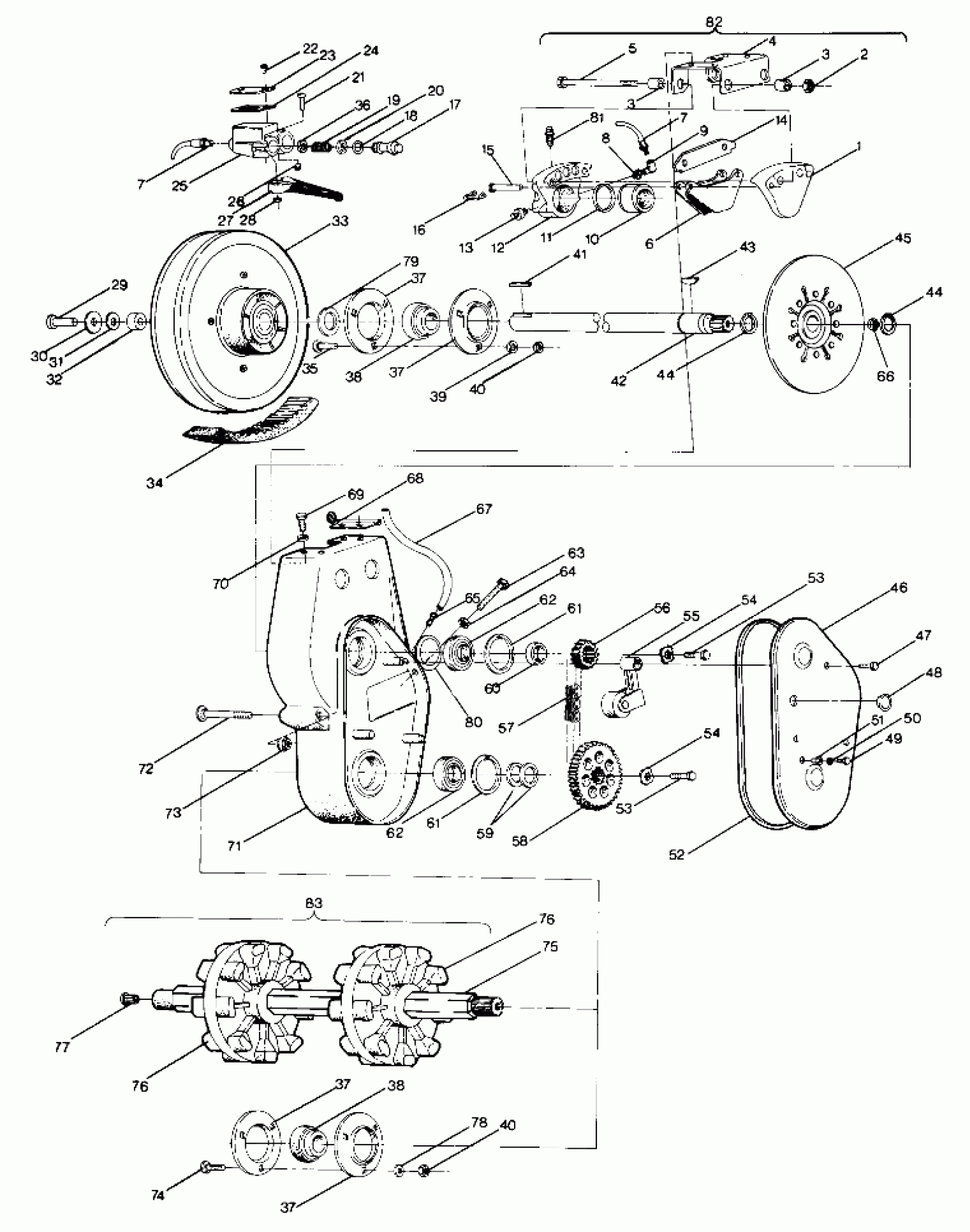

Polaris FIN SPORT - F880433 BRAKE AND CHAINCASE Sport and Trail (4914161416013A) Diagram
#
1
CASTING-CARRIER (TRAIL)
1930570
Unavailable
2
NUT
1930558
Unavailable
3
BUSHING
1930559
Unavailable
3
BUSHING
1930559
Unavailable
4
BRACKET
1930560
Unavailable
5
BOLT-BRIDGE
1930561
Unavailable
6
PAD, BRAKE
1930569
Unavailable
7
LINE-BRAKE [No Longer Available]
5420114
Unavailable
7
LINE-BRAKE [No Longer Available]
5420114
Unavailable
8
CONNECTOR
5020371
Unavailable
9
ELBOW-FEMALE
7052034
$5.19
10
PISTON
1930568
Unavailable
11
SEAL-PISTON
1930567
Unavailable
12
CALIPER ASM, BRAKE Substituted by 1930556
1930566
Unavailable
13
SWITCH-STOPLIGHT
4110046
Unavailable
14
SCREW-BLEEDER
1930564
Unavailable
15
PIN,PAD RETAINING
1930563
Unavailable
16
CLIP-SPRING
1930562
Unavailable
17
PISTON-BRAKE Substituted by 5020511
5020319
Unavailable
18
O RING
5410163
$1.60
19
SPRING-INNER Substituted by 7041203
7041067
$33.87
20
U PACKING SEAL
5410164
Unavailable
21
SCREW(10)
7511975
Unavailable
22
SCREW(10)
7511841
Unavailable
23
COVER RESERVOIR
5630127
$47.39
24
GASKET
5410487
Unavailable
25
HOUSING-MASTER CYL Substituted by 2050056
5630125
Unavailable
26
SCREW,SET(10)
7512308
Unavailable
27
LEVER, BRAKE Substituted by 5630335
5630126
$53.17
28
BUSHING-BRAKE LEVER [No Longer Available]
5332326
Unavailable
29
BOLT(10)
7515301
Unavailable
30
WASHER FLAT(10)
7555701
$3.99
31
WASHER(10)
7555734
Unavailable
32
SPACER
5020291
Unavailable
33
Driven Clutch Asm.
-------
Unavailable
34
BELT DRIVE(5) (Trail)
3211042
$109.99
34
BELT-DRIVE (SPORT)
3211046
Unavailable
35
BOLT(10) Substituted by 7512377
7512394
Unavailable
36
WASHER(10)
7555708
$3.99
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
38
BEARING
3514501
Unavailable
38
BEARING
3514501
Unavailable
39
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
41
KEY-SQUARE(10)
7721204
$3.19
42
SHAFT, INPUT,BLK. Substituted by 5020323-067
5020323
Unavailable
43
KEY,(10)
7727003
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
45
DISC BRAKE ASM
1332091
Unavailable
46
COVER CHAINCASE Substituted by 5222579
5223775
Unavailable
47
BOLT(10)
7512246
Unavailable
48
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
49
SCREW(10)
7511909
$3.99
50
WASHER, FLAT(10)
7558201
$5.79
51
NUT-WELL(10)
7541918
Unavailable
52
GASKET-CHAINCASE
5410277
$24.99
53
BOLT(10)
7512325
$2.39
53
BOLT(10)
7512325
$2.39
54
WASHER SHAKEPROOF(10) Substituted by 7577902
7577908
Unavailable
54
WASHER SHAKEPROOF(10) Substituted by 7577902
7577908
Unavailable
55
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
56
SPROCKET 19 T (Trail SKS Only)
3221034
Unavailable
56
SPROCKET 17 T (Sport)
3221033
Unavailable
56
SPROCKET-18T (400 Only)
3221037
Unavailable
57
CHAIN 64 PITCH (TRAIL)
3224023
Unavailable
57
CHAIN,62P,SILENT (Sport)
3224026
Unavailable
58
SPROCKET 35 T
3222036
$53.59
59
WASHER SPECIAL(10)
7556509
$1.59
60
SPACER Substituted by 5010270
5010128
Unavailable
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
62
BEARING
3514303
$11.99
62
BEARING
3514303
$11.99
63
SCREW(10)
7512470
Unavailable
64
NUT(10)
7542404
$1.59
65
PIN-SPIRAL(10)
7661504
$1.27
66
SPACER,DISK BRAKE
5020430
Unavailable
67
KIT-TANK VENT
2200190
Unavailable
68
RETAINER, RECOIL Substituted by 1011593-067 (SPORT)
1011593
Unavailable
69
BOLT(10)
7512240
$3.99
70
LOCK WASHER(10)
7552801
$1.59
71
CHAINCASE Substituted by 1332124
5130652
$261.90
72
BOLT(10)
7515428
$4.79
73
NUT(10)
7542423
$3.99
74
BOLT(10)
7512331
$3.99
75
DRIVE SHAFT
5020388
Unavailable
76
SPROCKET, 9T
5430571
Unavailable
76
SPROCKET, 9T
5430571
Unavailable
77
BUSHING METAL SPEEDO
3280019
$11.99
78
WASHER(10)
7555725
Unavailable
80
O-RING,CHAINCASE
5410401
Unavailable
81
CALIPER ASM, BRAKE (Incl. 1-6, 10-12)
1930556
Unavailable
82
DRIVE SHAFT ASM (Incl. 75-77)
1590198
Unavailable
