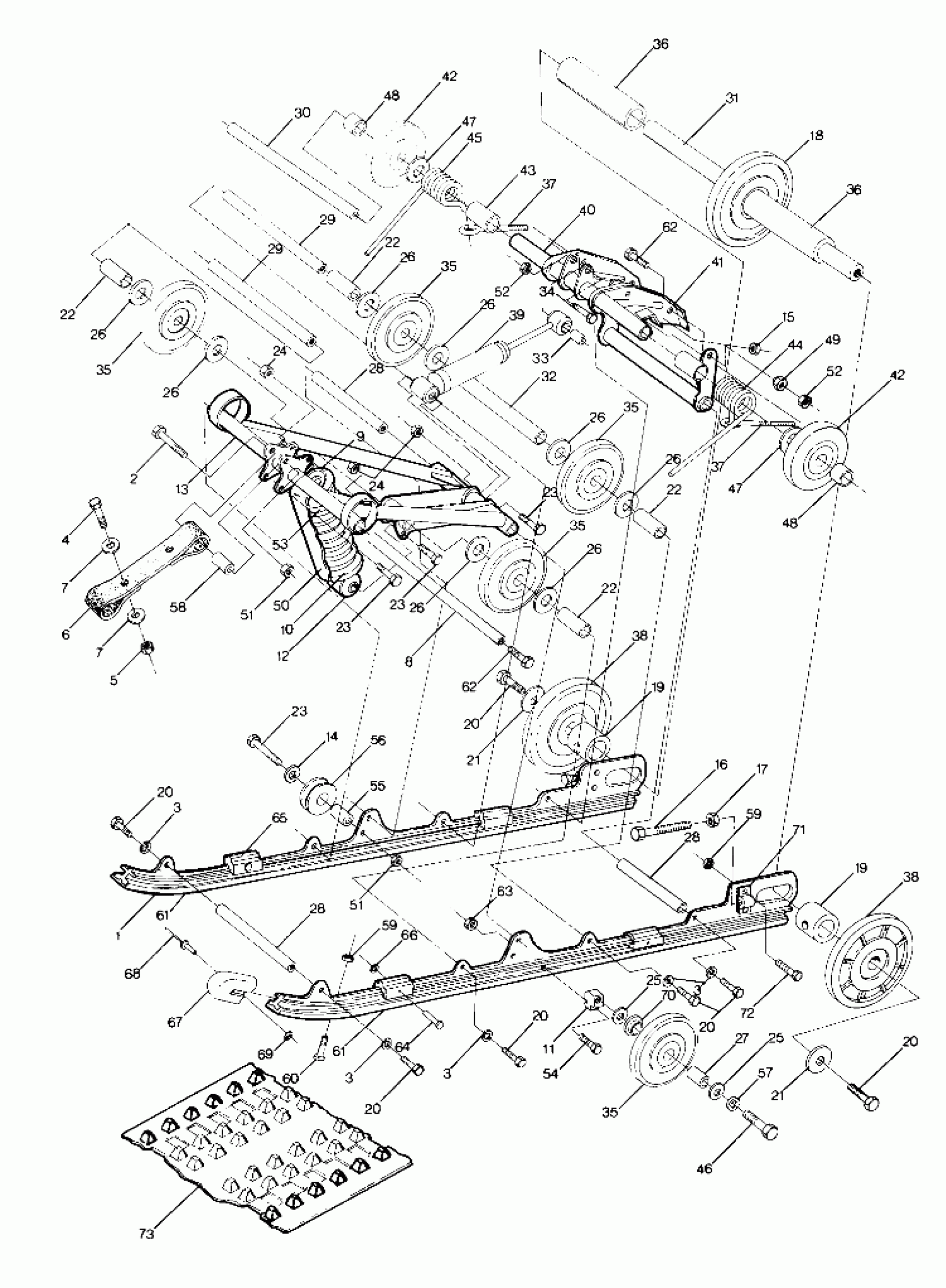

Polaris FIN LTR - F881549 SUSPENSION STARTRAK (4914141414025A) Diagram
#
-
RAIL ASM,RH (Incl. 59, 64-66, 71, 72)
1540616
$271.99
1
RAIL ASM., LH (Incl. 59, 64-66, 71, 72)
1540615
$271.99
2
BOLT(10)
7515438
$4.79
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
4
BOLT(10)
7515307
$3.99
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
6
STRAP, LIMITER
5410397
Unavailable
7
WASHER(10)
7555716
$1.59
7
WASHER(10)
7555716
$1.59
8
SHAFT,MOUNTING
5010149
Unavailable
9
RETAINER-TOP
5220225
$10.39
10
SPACER,SHOCK RETAINER(10)
5210953
$6.39
11
BRACKET,BOGIE WHEEL
5130570
$48.56
12
SHOCK-SUSP
7041142
Unavailable
13
ARM, FRONT TORQUE Substituted by 1540565-067
1540565
Unavailable
14
WASHER(10)
7555743
Unavailable
15
NUT FLEX LOC,(10)
7542402
$6.39
16
BOLT, ADJUSTER(10)
7515455
$29.99
17
NUT(10)
7542440
Unavailable
18
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
19
SPACER-IDLER-OUTER
5332641
Unavailable
19
SPACER-IDLER-OUTER
5332641
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
BOLT(10) Substituted by 7512492
7515458
Unavailable
21
WASHER FLAT(10)
7555732
Unavailable
21
WASHER FLAT(10)
7555732
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
22
SPACER, OUTER
5332784
Unavailable
23
BOLT Substituted by 7515491
7515433
$1.59
23
BOLT Substituted by 7515491
7515433
$1.59
23
BOLT Substituted by 7515491
7515433
$1.59
23
BOLT Substituted by 7515491
7515433
$1.59
24
NUT(10)
7542425
$1.75
24
NUT(10)
7542425
$1.75
25
WASHER(10)
7555804
$3.99
25
WASHER(10)
7555804
$3.99
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
26
MACHINERY BUSHING(10)
7556301
$3.19
27
SPACER
5332786
$7.99
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
28
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
29
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
29
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
30
AXLE Substituted by 5020906
5020426
Unavailable
31
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
32
TUBE, SUSPENSION
5332783
Unavailable
33
SPACER
5332631
$6.39
34
BOLT(10) Substituted by 7515352
7515306
Unavailable
35
WHEEL, IDLER
1543018
$56.65
35
WHEEL, IDLER
1543018
$56.65
35
WHEEL, IDLER
1543018
$56.65
35
WHEEL, IDLER
1543018
$56.65
36
SPACER,IDLER,R.INNER Substituted by 5333086
5332734
Unavailable
36
SPACER,IDLER,R.INNER Substituted by 5333086
5332734
Unavailable
37
BOLT-EYE, SPRING ADJ.(10)
7080221
$9.59
37
BOLT-EYE, SPRING ADJ.(10)
7080221
$9.59
38
WHEEL, IDLER
1594032
Unavailable
38
WHEEL, IDLER
1594032
Unavailable
39
SHOCK Substituted by 7041154
1540552
Unavailable
40
ARM, REAR TORQUE Substituted by 1540539-067
1540539
Unavailable
41
ARM, PIVOT Substituted by 1540562-067
1540562
Unavailable
42
WHEEL-TRACK CARRIER
1543017
$48.56
42
WHEEL-TRACK CARRIER
1543017
$48.56
43
TUBE-SPRING
5521089
Unavailable
44
SPRING LH Substituted by 7041119-067
7041119
Unavailable
45
SPRING RH Substituted by 7041120-067
7041120
Unavailable
46
BOLT(10)
7512659
$7.99
47
WASHER(10)
7555726
$1.59
47
WASHER(10)
7555726
$1.59
48
SPACER-CARR.WHEEL
5332730
$14.99
48
SPACER-CARR.WHEEL
5332730
$14.99
49
NUT, SHOULDER(10)
7542326
$19.99
50
SHIELD-SPRING
5430671
$24.27
51
NUT LOCK(10)
7542403
$3.99
51
NUT LOCK(10)
7542403
$3.99
52
NUT LOCK(10)
7542302
$3.99
52
NUT LOCK(10)
7542302
$3.99
53
SPRING-SHOCK SUSP
7041140
Unavailable
54
BOLT(10)
7512404
$3.99
55
Spacer
5332787
Unavailable
56
ROLLER-SPRING
5430540
Unavailable
57
LOCK WASHER(10)
7553201
$3.99
58
BUSHING,SUSPENSION
5010212
Unavailable
59
NUT-LOCK(10)
7542122
$1.49
59
NUT-LOCK(10)
7542122
$1.49
60
SCREW(10)
7512227
$3.19
61
SLIDE,BLACK,(HIFAX) Substituted by 5521320 (Blk)
5521086
Unavailable
61
SLIDE,BLACK,(HIFAX) Substituted by 5521320 (Blk)
5521086
Unavailable
62
BOLT(10)
7515317
$4.79
62
BOLT(10)
7515317
$4.79
64
RIVET,(50)
7661609
Unavailable
65
BUMPER-SUSPENSION Substituted by 5810554
5410315
Unavailable
66
PALNUT(10)
7670009
$2.39
67
COVER-RAIL TIP
5430627
$32.37
68
RIVET(50)
7621435
$1.49
69
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
71
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
71
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
72
BOLT(10)
7512247
$2.39
73
TRACK,(STARTRACK)
5410452
Unavailable
