ENGINE MOUNTING STARTRAK (4914141414029A)

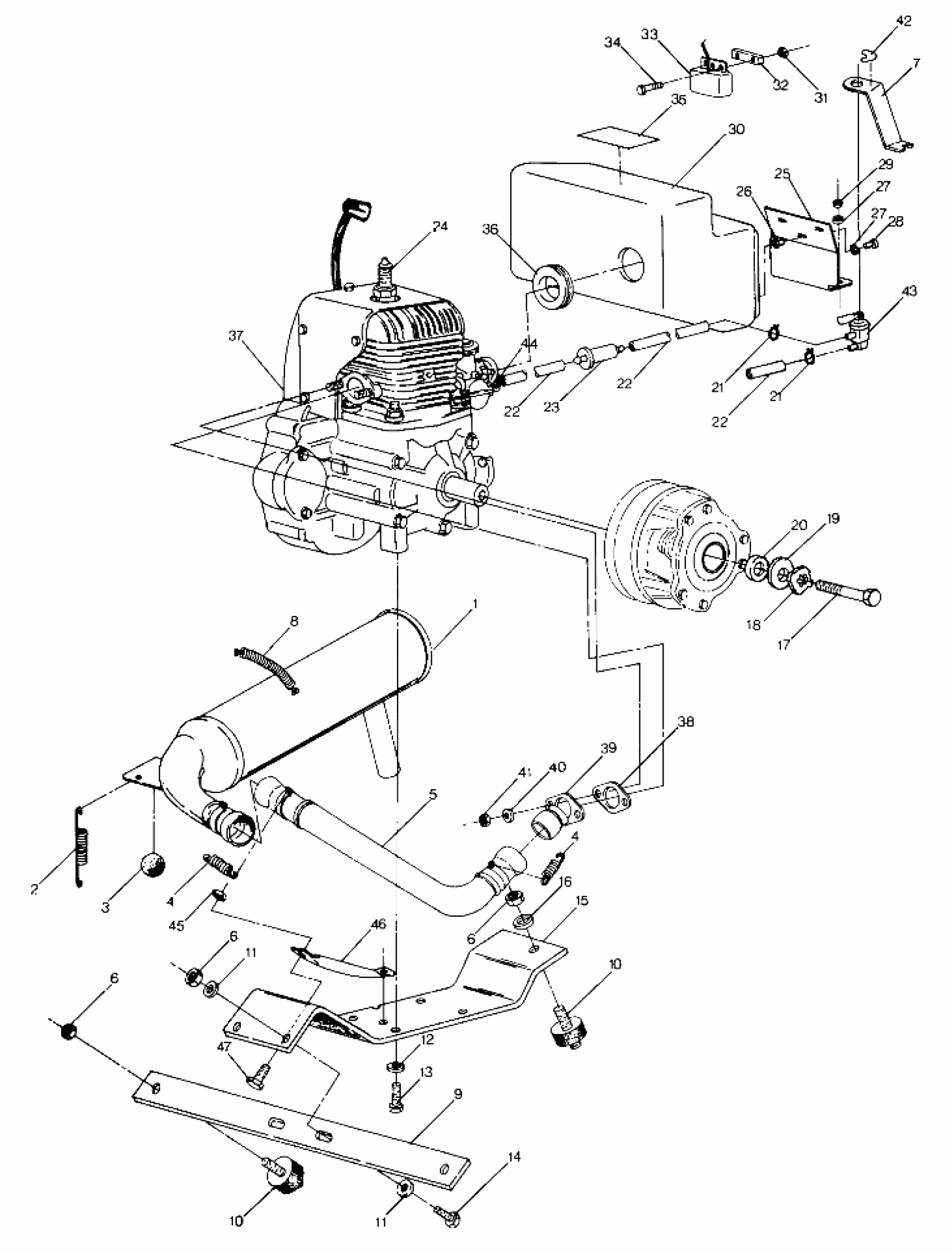

Polaris FIN LTR - F881549 ENGINE MOUNTING STARTRAK (4914141414029A) Diagram
#
1
MUFFLER [No Longer Available]
1260488
Unavailable
2
SPRING-EXHAUST(10)
7042029
$4.84
3
BALL-EXH.MT.
5430687
$13.19
4
SPRING RETURN EXHAUST Substituted by 7042031
3081078
Unavailable
4
SPRING RETURN EXHAUST Substituted by 7042031
3081078
Unavailable
5
PIPE-EXHAUST [No Longer Available]
1260478
Unavailable
6
NUT LOCK(10)
7542403
$3.99
6
NUT LOCK(10)
7542403
$3.99
6
NUT LOCK(10)
7542403
$3.99
7
BRACKET
5220536
Unavailable
8
SPRING
7042015
Unavailable
9
BRACE [No Longer Available]
5211054
Unavailable
10
MOUNT-MTR.
3110020
Unavailable
10
MOUNT-MTR.
3110020
Unavailable
11
WASHER, FLAT(10)
7555815
$3.99
11
WASHER, FLAT(10)
7555815
$3.99
12
WASHER LOCK(10)
7553101
$3.99
13
BOLT(10)
7512539
$3.99
14
BOLT(10)
7512405
$3.99
15
PLATE, MOTOR Substituted by 1270082-067
5220404
Unavailable
16
WASHER-LOCK(10)
7571611
$3.19
17
BOLT(10)
7512565
$19.99
18
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
19
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
20
BUSHING-.437 X.770 X.50
5430261
$7.19
21
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
21
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
22
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
22
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
22
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
23
FILTER FUEL,(10)
2530008
$4.84
24
SPARKPLUG, RN3C(8)
3070166
$3.99
25
BRACKET [No Longer Available]
5220405
Unavailable
26
NUT-WELL(10)
7541923
$5.59
27
WASHER,WROUGHT(10)
7558302
$1.59
27
WASHER,WROUGHT(10)
7558302
$1.59
28
SCREW(10)
7512279
$1.49
29
NUT-LOCK(10)
7542122
$1.49
30
SILENCER
5430720
Unavailable
31
NUT(10)
7541925
$1.49
32
HEAT SINK
5210650
Unavailable
33
REGULATOR - MINKS
4060071
Unavailable
34
SCREW(10)
7511930
$2.39
35
DECAL,SILENCER [No Longer Available]
7072087
Unavailable
36
BOOT-SILENCER
5410311
Unavailable
37
ENG. 25PS06(STAR) [No Longer Available]
1211435
Unavailable
38
GASKET,EXHAUST
5830001
$2.47
39
MANIFOLD WELD Substituted by 1260566-029
1260331
Unavailable
40
LOCK WASHER(10)
7552901
$1.49
41
NUT(10)
7542323
$1.99
42
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
43
VALVE,FUEL SHUT-OFF
7052040
Unavailable
44
CLAMP-HOSE(10)
7080134
Unavailable
45
NUT FLEX LOC,(10)
7542402
$6.39
46
BRACKET,ENG.MTG. [No Longer Available]
5220660
Unavailable
47
SCREW(10) Substituted by 7512490
7512402
Unavailable
