CRANKCASE AND CYLINDER STARTRAK (4914141414034A)

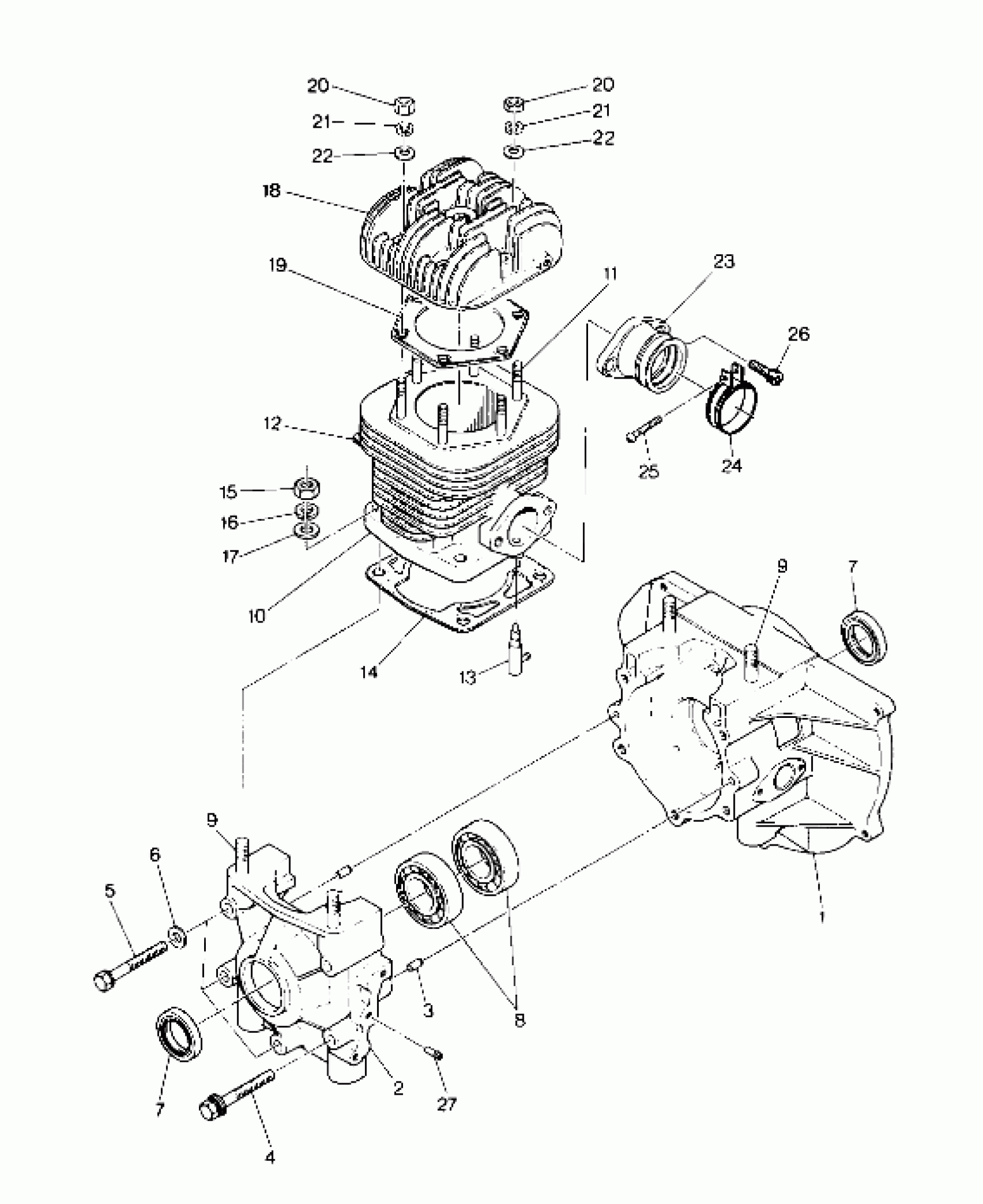

Polaris FIN LTR - F881549 CRANKCASE AND CYLINDER STARTRAK (4914141414034A) Diagram
#
Description
Price
-
CRANKCASE ASM. (Incl. 1-9)
3083797
$263.89
1
Crankcase - Recoil Side
-------
Unavailable
2
Crankcase - PTO Side
-------
Unavailable
3
PIN, DOWEL Substituted by 3086838
3080103
$7.14
4
BOLT AND WASHER ASSY.
3082096
$1.49
5
BOLT&WASHER ASM.
3083509
Unavailable
6
WASHER
3082505
Unavailable
7
SEAL,OIL Substituted by 3082162
3080006
$38.60
7
SEAL,OIL Substituted by 3082162
3080006
$38.60
8
BEARING,BALL
3083805
Unavailable
9
STUD Substituted by 3085713
3080746
Unavailable
9
STUD Substituted by 3085713
3080746
Unavailable
10
CYLINDER Substituted by 3083769 (Incl. 11-13)
3083411
Unavailable
11
Stud
3080283
$12.94
12
STUD (10)
3080016
$5.75
13
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
14
GASKET,CYLINDER
3080301
Unavailable
15
NUT Substituted by 3082911
3080047
Unavailable
16
WASHER SPRING(10)
3080050
Unavailable
17
WASHER(10)
3080356
$2.99
18
HEAD CYLINDER
3081219
Unavailable
19
GASKET HEAD Substituted by 3084019
3081520
Unavailable
20
NUT(10)
3080119
$2.39
20
NUT(10)
3080119
$2.39
21
WASHER LOCK ,(10)
3080530
$3.19
21
WASHER LOCK ,(10)
3080530
$3.19
22
WASHER(10)
3080142
$3.99
22
WASHER(10)
3080142
$3.99
23
ADAPTER, CARB Substituted by 3085013
3083022
$100.38
24
BAND ASSY (Incl. 25)
3082011
Unavailable
25
SCREW,(10)
3081497
$2.39
26
Bolt, Allen
3081330
$3.99
27
PIPE, PULSE
3083798
$9.52
