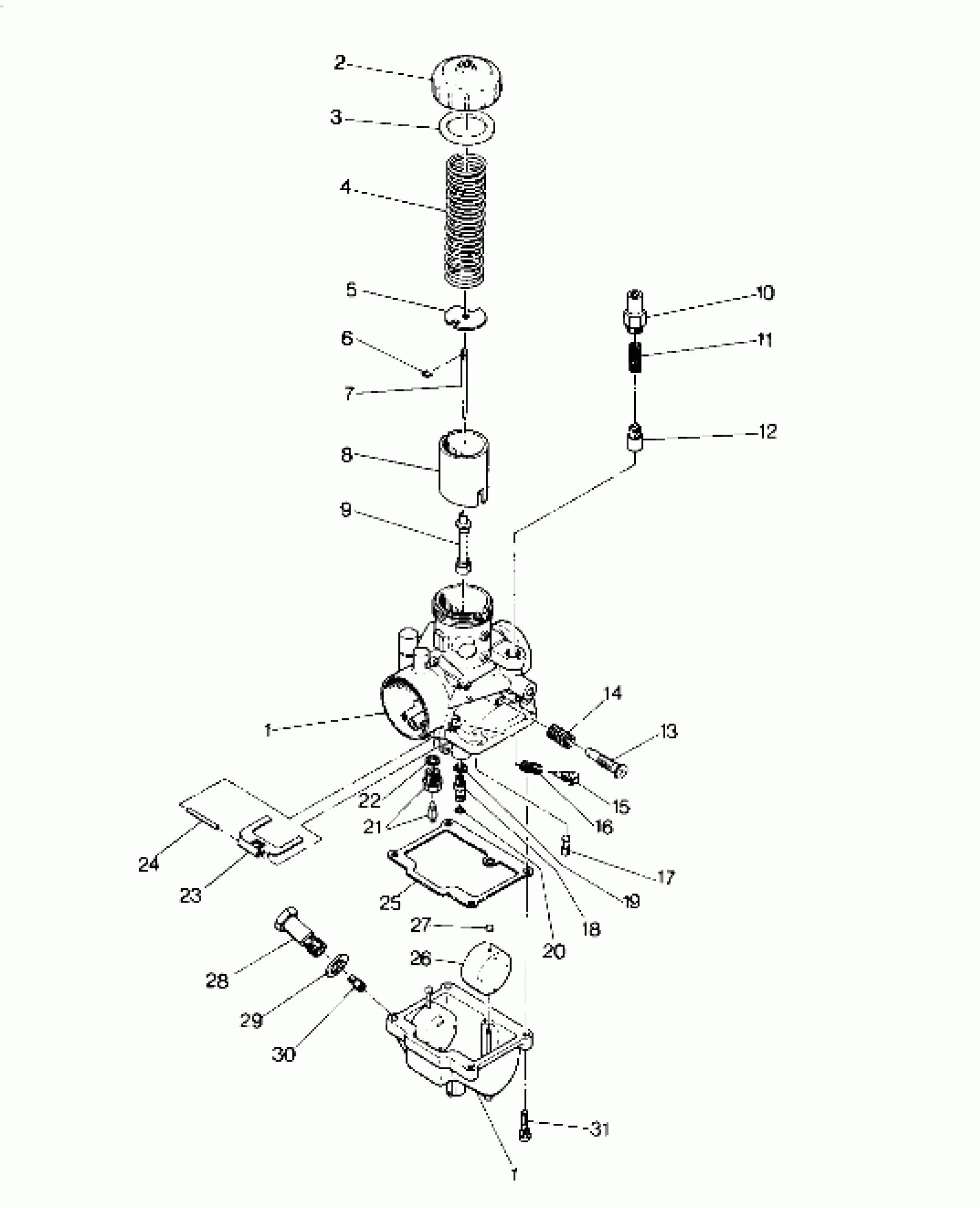

Polaris FIN LTR - F881549 CARBURETOR LTR (4914141414047A) Diagram
#
Description
Price
1
CARBURETOR ASM. (Incl. 2-31)
3130398
Unavailable
1
CARBURETOR ASM. (Incl. 2-31)
3130398
Unavailable
2
TOP,MIX CHAMBER (Incl. 3)
3130060
Unavailable
3
GASKET
-------
Unavailable
4
SPRING, THROTTLE
3130318
$20.22
5
PLATE,THROTTLE Substituted by 3130027
3130216
Unavailable
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
JET NEEDLE
3130329
Unavailable
8
VALVE-THROTTLE 2.5
3130308
Unavailable
9
JET NEEDLE
3130160
$36.41
10
HOLDER,GUIDE Substituted by 3130199
3082480
Unavailable
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR
3130011
$19.99
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#50(10) Substituted by 3130629 (No. 50)
3130069
$7.27
18
SETTER,NEEDLE JET
3130030
Unavailable
19
WASHER (10)
3130014
$1.59
20
O RING Substituted by 3130015
3130259
Unavailable
21
VALVE,NEEDLE Substituted by 3131146
3130016
$48.56
22
PACKING(10)
3130017
$4.03
23
ARM,FLOAT
3130018
$24.27
24
PIN, FLOAT
3130361
$8.89
25
PACKING,FLOAT CHAMBER
3130020
$16.17
26
FLOAT
3130399
Unavailable
27
CAP,(10)
3130237
$4.03
28
BOLT, BANJO
3130210
Unavailable
29
WASHER
3130024
Unavailable
30
JET,MAIN HX.HD#280(10) (No. 280)
3130131
$7.27
31
SCREW&WASHER
3130371
Unavailable
