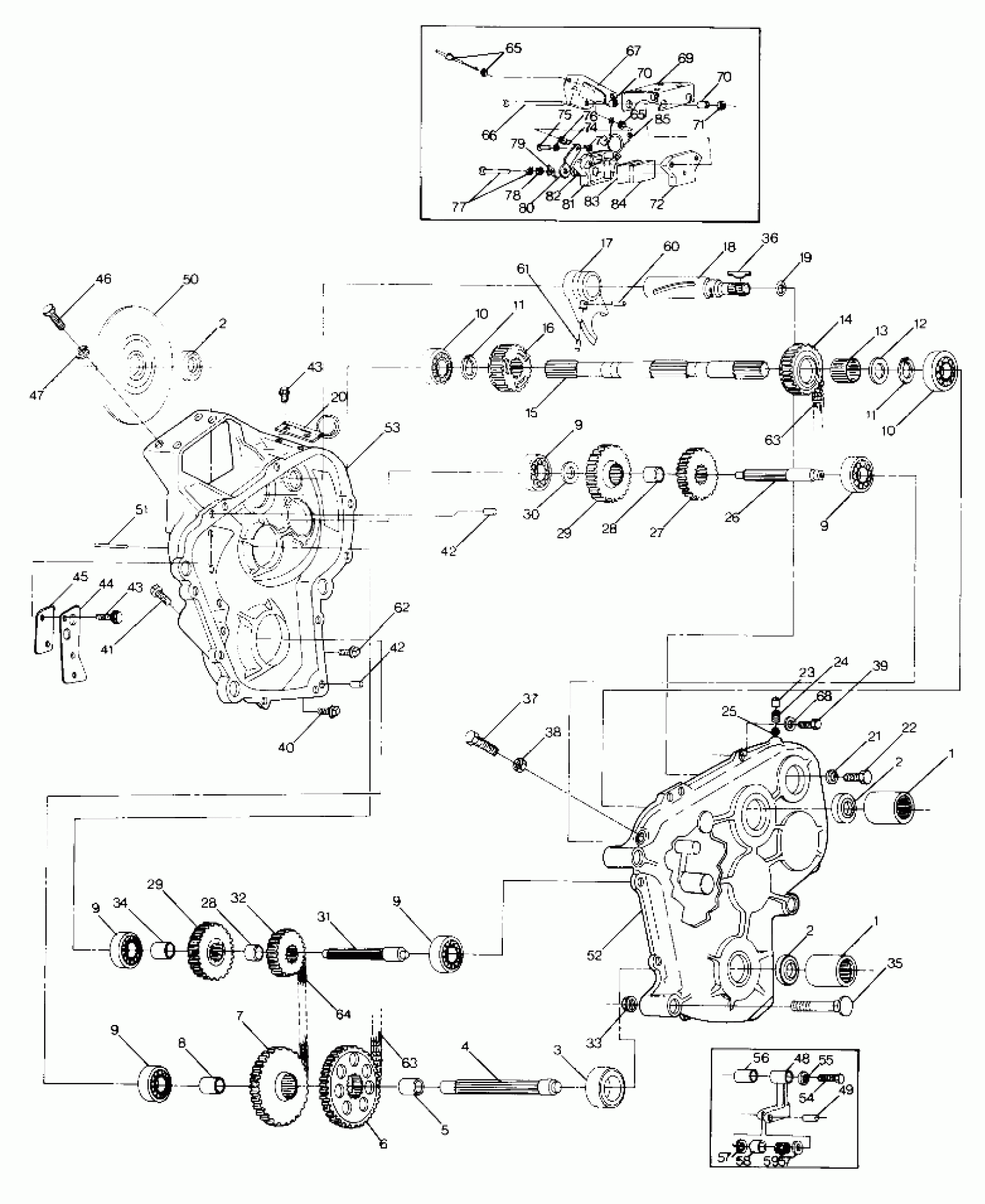

Polaris FIN LTR - F881549 BRAKE AND CHAINCASE LTR (4914141414019A) Diagram
#
1
COUPLER,SHAFT (O/P)
5020449
Unavailable
1
COUPLER,SHAFT (O/P)
5020449
Unavailable
2
SEAL, OIL
3610015
Unavailable
2
SEAL, OIL
3610015
Unavailable
2
SEAL, OIL
3610015
Unavailable
3
BEARING
3514303
$11.99
4
SHAFT, OUTPUT Substituted by 6230065
5020450
Unavailable
5
SPACER,OUTPUT SHAFT
5010227
Unavailable
6
SPROCKET 39 T
3222034
Unavailable
7
SPROCKET-41T
3222037
Unavailable
8
SPACER,OUTPUT
5020480
Unavailable
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
9
BEARING, BALL
3514001
$19.99
10
BEARING,205,W/O SEAL
3514304
$15.99
10
BEARING,205,W/O SEAL
3514304
$15.99
11
RING, RET.(10)
7710411
Unavailable
11
RING, RET.(10)
7710411
Unavailable
12
WASHER(10)
7555751
Unavailable
13
BEARING, NEEDLE
3554503
Unavailable
14
GEAR,FORWARD,21T (21T)
5130661
Unavailable
15
SHAFT, INPUT
5020508
Unavailable
16
PINION, REVERSE
5130667
Unavailable
17
FORK, SHIFT (Mach.)
5130662
$134.99
18
SHAFT, SHIFT Substituted by 5130802
5130669
Unavailable
19
O RING(10)
5410440
$4.84
20
RETAINER, RECOIL Substituted by 1011593-067
1011593
Unavailable
21
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
22
BOLT(10)
7512247
$2.39
23
SCREW, SET(10)
7515473
Unavailable
24
SPRING,SHIFTER DETENT Substituted by 7041483
7041187
Unavailable
25
BALL, DETENT
7080310
$5.99
26
SHAFT,LOW RANGE
5020481
Unavailable
27
GEAR, 24T
5130607
Unavailable
28
SPACER,REV.SHAFT
5010225
Unavailable
28
SPACER,REV.SHAFT
5010225
Unavailable
29
GEAR, 30T [No Longer Available]
5130608
Unavailable
29
GEAR, 30T [No Longer Available]
5130608
Unavailable
30
BUSHING,WASHER(10) Substituted by 5010260
7555765
Unavailable
31
SHAFT, REVERSE
5020446
Unavailable
32
SPKT, 18T
3221042
$68.48
33
NUT(10)
7542423
$3.99
34
SPACER,SHAFT,REV. Substituted by 5010261
5010226
Unavailable
35
BOLT(10)
7515474
$3.33
36
WEIGHT, KEY(10)
7721112
Unavailable
37
SCREW(10)
7512470
Unavailable
38
NUT(10)
7542404
$1.59
39
SCREW(10)
7512225
$3.99
40
PLUG, PIPE
7051513
Unavailable
41
PLUG, PIPE(10)
7051511
Unavailable
42
PIN, DOWEL(10)
7661904
Unavailable
42
PIN, DOWEL(10)
7661904
Unavailable
43
SCREW(10)
7512252
Unavailable
43
SCREW(10)
7512252
Unavailable
44
PLATE, VENT
5211036
Unavailable
45
GASKET, VENT
5810305
Unavailable
46
BOLT(10)
7512240
$3.99
47
LOCK WASHER(10)
7552801
$1.59
48
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
49
PIN, DOWEL(10)
7662208
Unavailable
50
DISC BRAKE WELD.
1910027
Unavailable
51
PIN-SPIRAL(10)
7661504
$1.27
52
GEARCASE,LH MACH.
5130660
Unavailable
53
GEARCASE,RH MACH. Substituted by 5130755
5130629
Unavailable
54
BOLT(10)
7512329
$3.99
56
BUSHING
5010217
Unavailable
57
WASHER THRUST(10)
7558702
$1.59
57
WASHER THRUST(10)
7558702
$1.59
58
WHEEL,C/C IDLER
5630123
Unavailable
59
BEARING
3553002
$11.99
60
PIN, DOWEL(10)
7661819
Unavailable
61
PIN, SPRING(10)
7661206
Unavailable
62
PLUG,PIPE,MAGNETIC
7051512
Unavailable
63
CHAIN 66 PITCH
3224024
Unavailable
63
CHAIN 66 PITCH
3224024
Unavailable
64
CHAIN, SILENT
3224037
Unavailable
65
CABLE, BRAKE [No Longer Available]
7080362
Unavailable
65
CABLE, BRAKE [No Longer Available]
7080362
Unavailable
66
BOLT(10)
7515478
$11.43
67
BRACKET Substituted by 1910024-067
1910024
Unavailable
68
WASHER(10)
7558301
$1.49
69
BRACKET Substituted by 5220514-067
5220514
Unavailable
70
BUSHING
1930559
Unavailable
70
BUSHING
1930559
Unavailable
71
NUT(10)
7542425
$1.75
72
CALIPER
5630305
$36.41
73
NUT-LOCK(10)
7542122
$1.49
74
PIN, CLEVIS
7080316
Unavailable
75
SCREW(10)
7512116
Unavailable
76
BUSHING
5332795
$5.56
77
Bolt & Stop
-------
Unavailable
78
Jam Nut
-------
Unavailable
79
Lock Tab
-------
Unavailable
80
Lever
-------
Unavailable
81
CALIPER (Incl. 77-80, 82)
1930593
Unavailable
82
Shaft
-------
Unavailable
83
PAD, BRAKE,(THICK)
1930588
Unavailable
84
PUCK
1930592
Unavailable
85
LEVER ASM,BRAKE
2050039
Unavailable
85
SPRING, BRAKE RETURN
7041147
Unavailable
85
CABLE, BRAKE
7080349
Unavailable
