- 1992
- FIN LITE GT - F923133
SUSPENSION Indy Lite GT (4921342134015A)

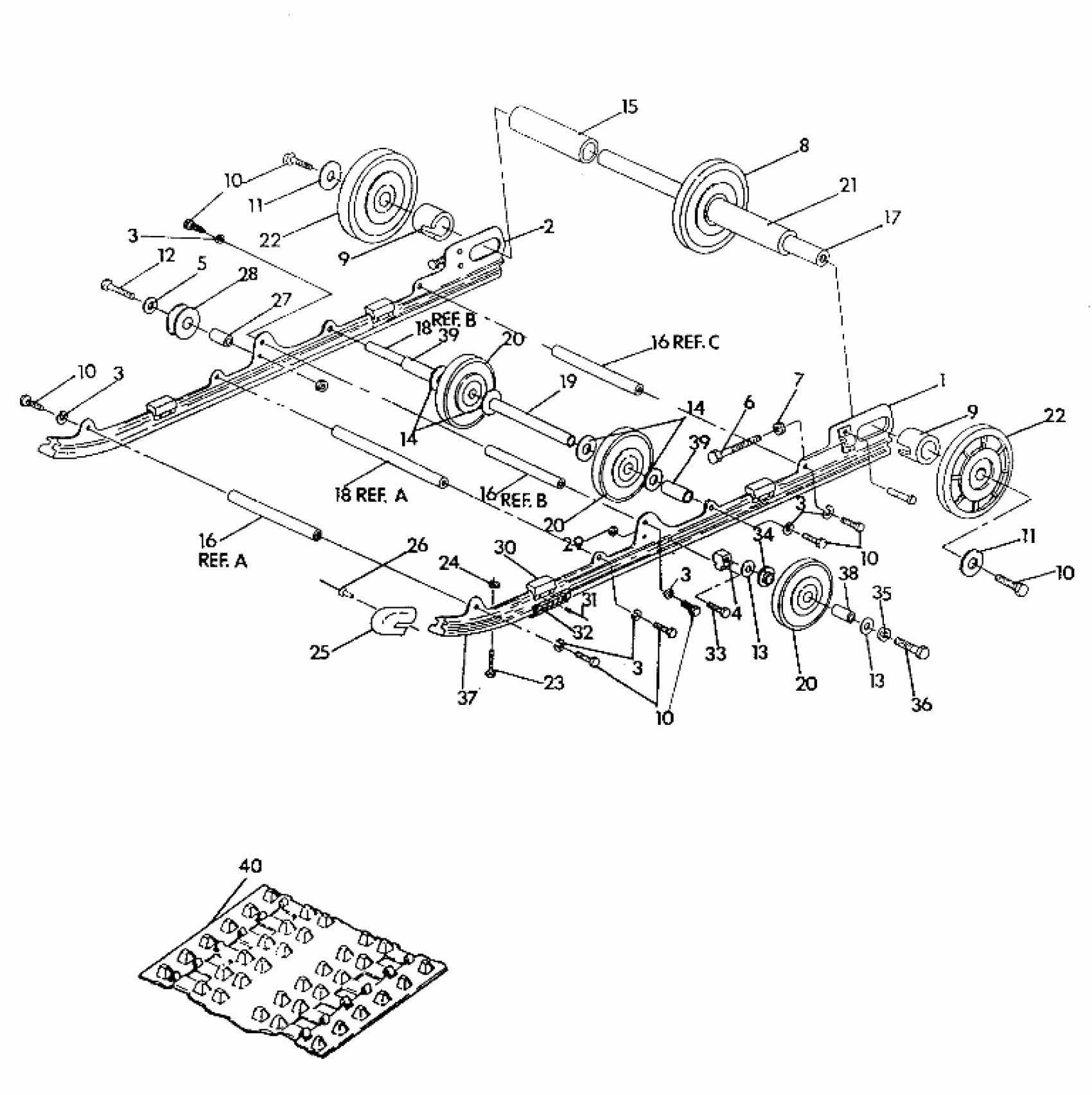

Polaris FIN LITE GT - F923133 SUSPENSION Indy Lite GT (4921342134015A) Diagram
#
1
RAIL ASM,LH,133''(LITE GT) Substituted by 1541119
1540691
Unavailable
2
RAIL ASM,RH,133''(LITE GT) Substituted by 1541120
1540692
Unavailable
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
4
BRACKET,BOGIE WHEEL
5130570
$48.56
5
WASHER(10)
7555743
Unavailable
6
BOLT, ADJUSTER(10)
7515455
$29.99
7
NUT(10)
7542440
Unavailable
8
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
12
BOLT Substituted by 7515491
7515433
$1.59
13
WASHER(10)
7555804
$3.99
13
WASHER(10)
7555804
$3.99
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
15
SPACER,IDLER,R.INNER
5333086
Unavailable
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
17
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
18
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
18
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
19
TUBE, SUSPENSION
5332783
Unavailable
20
WHEEL, IDLER
1543018
$56.65
20
WHEEL, IDLER
1543018
$56.65
20
WHEEL, IDLER
1543018
$56.65
21
SPACER INNER IDLER
5010169
Unavailable
22
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
22
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
23
SCREW(10)
7512227
$3.19
24
NUT-LOCK(10)
7542122
$1.49
25
COVER-RAIL TIP
5430627
$32.37
26
RIVET(50)
7621435
$1.49
27
Spacer
5332787
Unavailable
28
ROLLER-SPRING
5430540
Unavailable
29
NUT-LOCK(10)
7542439
$1.49
30
BUMPER, RAIL
5810554
$7.27
31
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
32
REINF., BUMPER
5222629
$13.75
33
BOLT(10)
7512404
$3.99
34
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
35
LOCK WASHER(10)
7553201
$3.99
36
BOLT(10)
7512659
$7.99
37
SLIDE,RED,(HIFAX) Substituted by 5521321
5521104
$40.46
38
SPACER
5332786
$7.99
39
SPACER, OUTER
5332784
Unavailable
39
SPACER, OUTER
5332784
Unavailable
40
TRACK Substituted by 5410727
5410615
Unavailable
