- Partiron
- OEM Parts
- Polaris
- SNOW
- SNO
- 1992
- FIN LITE GT - F923133
STEERING Indy Lite GT (4921342134011A)

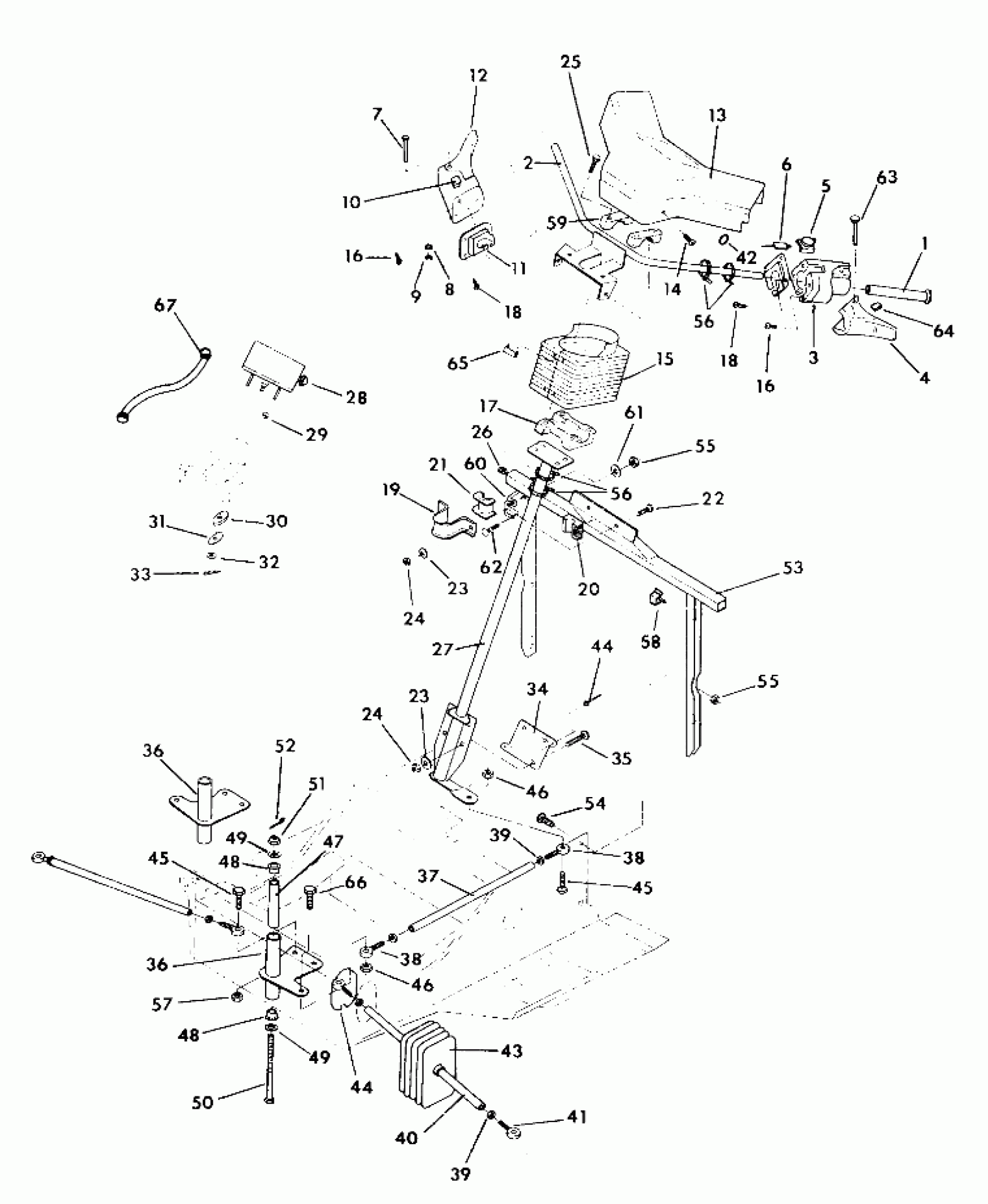

Polaris FIN LITE GT - F923133 STEERING Indy Lite GT (4921342134011A) Diagram
#
1
GRIP,H'BAR,BLACK Substituted by 5432634
5410272-067
$24.27
2
HANDLEBAR,ADJ,BLK.
1843036-067
$43.75
3
BLOCK,THROTTLE/BRAKE Substituted by 5431592
5431265
$49.99
4
LEVER-BRAKE
5430602
$36.41
5
Switch, Dimmer
4110104
Unavailable
6
Switch, Brake Light
4110105
Unavailable
7
PIN-RETAINING .186X1.780-AL
7661624
$12.79
8
WASHER(10)
7555730
$3.99
9
RING-RETAINING EXTERNAL
7710401
$3.99
10
SWITCH,AUX.SHUT-OFF
4110106
$94.99
11
BLOCK-ADAPTER
5430604
$13.75
12
LEVER-THROTTLE
5430601
Unavailable
13
COVER,H'BAR W/SPEEDO (w/Speedometer)
5431232-070
Unavailable
14
SCREW,(10)
7512024
$4.79
15
BOOT,STRG.POST
5431234-070
Unavailable
16
SCREW-SEMS(10)
7511848
$3.99
16
SCREW-SEMS(10)
7511848
$3.99
17
BLOCK,HANDLEBAR
5630187-067
$44.99
18
SCREW(10)
7512465
$3.99
18
SCREW(10)
7512465
$3.99
19
BRKT,UP.STRG.BUSH,BLK. Substituted by 5222999-067
5220887-067
$32.37
20
BUSHING,STRG.,UPPER Substituted by 5431572
5430966
Unavailable
21
BUSHING,UPPER STRG. Substituted by 5431573
5431138
$8.48
22
BOLT(10)
7515321
$1.49
23
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
23
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
24
NUT-5/16-18 NYLOK-Y
7542324
$1.49
24
NUT-5/16-18 NYLOK-Y
7542324
$1.49
25
BOLT(10)
7512254
Unavailable
26
NUT-LOCK(10)
7542122
$1.49
27
POST, STRG, BLK.
1823150-067
Unavailable
28
SPEEDOMETER
3280112
Unavailable
29
SPACER
5410592
Unavailable
30
SPACER,SPEEDO.MTG.
5810442
$10.99
31
PLATE,MTG,(SPEEDO)
5211189
$12.99
32
WASHER, FLAT(10)
7558201
$5.79
33
HAIRPIN, COTTER(10)
7660701
$1.99
34
BRKT, BOLT RETAINER
5222421
$5.52
35
BOLT(10) Substituted by 7512377
7512394
Unavailable
36
FROG, LH STRG.
5222402
Unavailable
36
FROG, LH STRG.
5222402
Unavailable
37
ROD, DRAG LINK
5333005
Unavailable
38
ROD END, LH Substituted by 7060166
7060151
$48.56
38
ROD END, RH Substituted by 7060167
7060152
$48.56
38
ROD END, LH Substituted by 7060166
7060151
$48.56
38
ROD END, RH Substituted by 7060167
7060152
$48.56
39
NUT HEX(10)
7542401
$2.39
39
NUT
7542424
$1.49
39
NUT HEX(10)
7542401
$2.39
39
NUT
7542424
$1.49
40
ROD,TIE,BLK.
5333006-067
Unavailable
41
ROD END,LH Substituted by 7060164
7060124
$48.56
41
ROD END RH Substituted by 7060165
7060125
$48.56
42
O RING
5410591
Unavailable
43
BOOT, TIE ROD Substituted by 5411652
5410639
$19.84
44
RETAINER, BOOT
5222283
Unavailable
44
RETAINER, BOOT
5222283
Unavailable
45
BOLT(10)
7512404
$3.99
45
BOLT(10)
7512404
$3.99
46
NUT LOCK(10)
7542411
$3.19
46
NUT LOCK(10)
7542411
$3.19
47
BUSHING, SPACER
5333009
$11.99
48
BUSHING
5630371
$5.03
48
BUSHING
5630371
$5.03
49
WASHER(10)
7555817
Unavailable
49
WASHER(10)
7555817
Unavailable
50
BOLT(10)
7512572
$13.19
51
NUT, CASTLE(10)
7542523
Unavailable
52
PIN COTTER(10)
7661203
$1.49
53
HOOP, STRG, BLK.
1011782-067
Unavailable
54
BOLT(10)
7512298
$3.99
56
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
56
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
57
NUT LOCK(10)
7542403
$3.99
58
CLIP ,(10)
5222672
Unavailable
59
BLOCK,H'BAR,UPPER,BLK.
5630382-067
Unavailable
60
RINGMOUNT,RECOIL,BLK.
5224442-067
$21.43
61
WASHER,WROUGHT(10)
7558302
$1.59
62
BOLT(10)
7512193
$2.39
63
RIVET,(50)
7661617
$4.03
64
CLIP-SPEED.(10)
7670044
$4.79
65
CLIP, STRG.BOOT(10)
7670073
Unavailable
66
SCREW(10)
7515434
Unavailable
67
CABLE,SPEEDOMETER
3280113
Unavailable
