NOSEPAN and CONSOLE Indy Lite GT (4921342134003A)

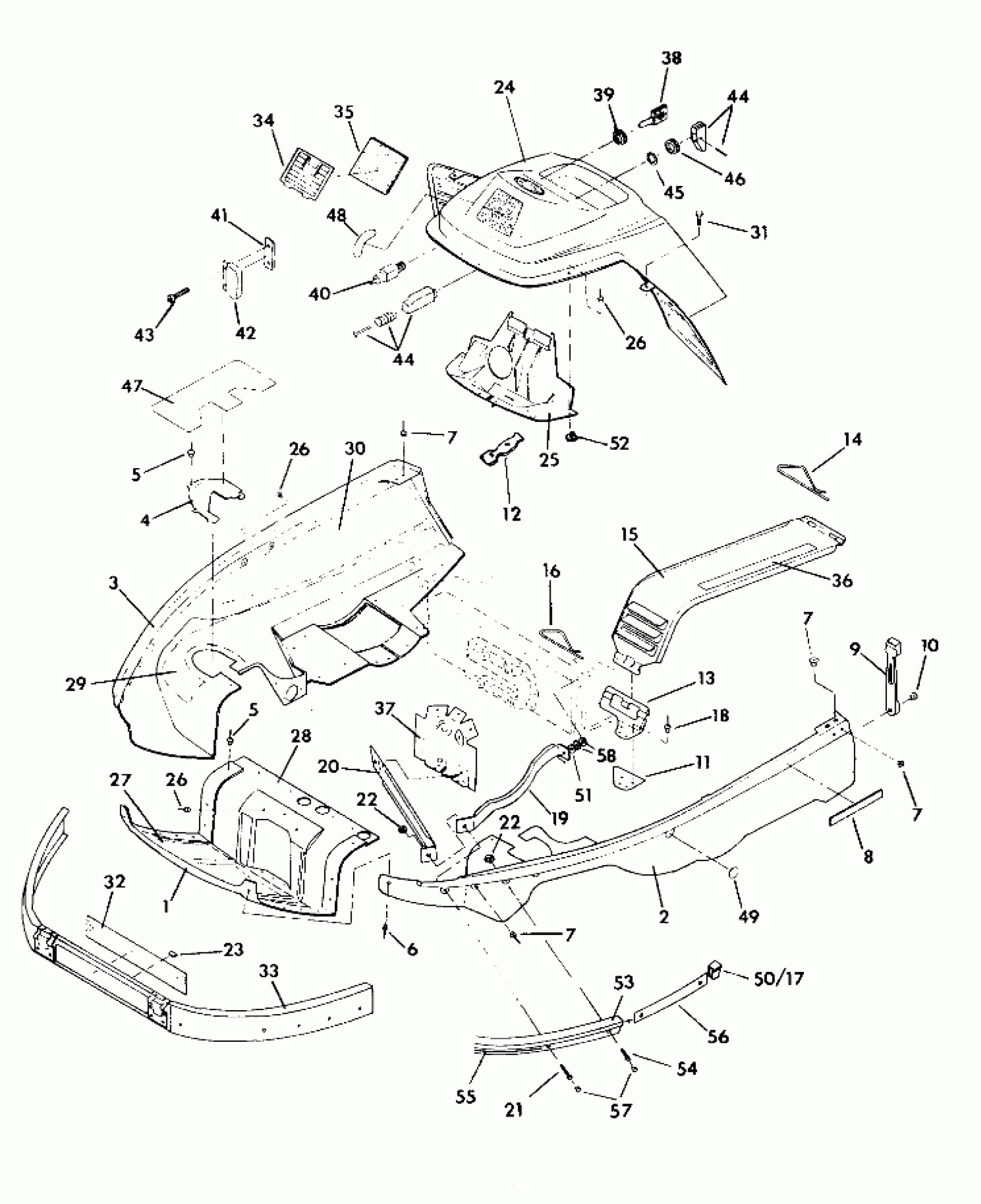

Polaris FIN LITE GT - F923133 NOSEPAN and CONSOLE Indy Lite GT (4921342134003A) Diagram
#
1
NOSEPAN, CTR.
5431154-070
Unavailable
2
NOSEPAN,LH,BLK.
5431155-070
Unavailable
3
NOSEPAN,RH,BLK.
5431156-070
Unavailable
3
NOSEPAN,RH,BLK.
5431156-070
Unavailable
4
COVER, RH SHOCK
5431253
Unavailable
4
COVER, LH SHOCK
5431252
Unavailable
5
RIVET(50)
7621457
$1.49
5
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
5
RIVET(50)
7621457
$1.49
5
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
7
RIVET(50)
7621472
$1.49
7
RIVET(50)
7621472
$1.49
7
RIVET(50)
7621472
$1.49
7
RIVET(50)
7621472
$1.49
8
REFLECTOR AMBER
2670071
Unavailable
9
STRAP, HOOD
5410573
Unavailable
10
RIVET,(50)
7621601
Unavailable
11
PLATE,CLUTCHGUARD,BLK.
5211249-067
$3.49
12
STRAP,TOOL COMPARTMENT
5410425
Unavailable
13
SUPPORT,CLUTCH GD,BLK.
5222332-067
$4.95
14
PIN, FRONT
7080311
Unavailable
15
GUARD, CLUTCH Substituted by 5243761
5230124
Unavailable
16
PIN
5224440
Unavailable
17
CAP,BUMPER END,RH,BLK Substituted by 5431251-070
5431251
Unavailable
18
RIVET(50)
7621449
$3.19
19
BRKT,LH PANBRACE,BLK.
5222339-067
Unavailable
19
BRKT,RH PANBRACE,BLK.
5222340-067
Unavailable
20
BRKT,LH BUMP.BRACE,BLK.
5222345-067
Unavailable
20
BRKT,RH BUMP.BRACE,BLK.
5222346-067
Unavailable
21
SCREW(10)
7515102
$4.79
22
NUT, LOCK(10)
7542103
$5.59
22
NUT, LOCK(10)
7542103
$5.59
23
U-CLIP,(10)
7670070
Unavailable
24
CONSOLE
5431157-070
Unavailable
25
CONSOLE, INNER
5431214-070
$66.39
26
Clip, Dart
7670067
$3.99
26
Clip, Dart
7670067
$3.99
26
Clip, Dart
7670067
$3.99
27
Tape, Foil
5810475
Unavailable
28
TAPE, FOIL
5810476
Unavailable
28
TAPE, FOIL
5810476
Unavailable
29
TAPE, FOIL
5810477
Unavailable
30
TAPE, FOIL
5810478
Unavailable
31
SCREW(10)
7512252
Unavailable
32
SCREEN
5211267-067
Unavailable
33
HINGE,LOWER,BLK.
2635010-067
Unavailable
34
LOUVER, INTAKE
5431211-070
Unavailable
35
Foam, Intake
5810458
Unavailable
36
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
37
BRKT,SUPPORT,BLK.
5222356-067
$38.19
39
NUT-IGNITION SWITCH
7542807
Unavailable
40
SWITCH IGNITION
4110038
$44.51
41
HEAT SINK
5210650
Unavailable
42
REGULATOR, VOLTAGE
4060092
Unavailable
43
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
44
CABLE, CHOKE(LITE) Substituted by 7080661
7080405
Unavailable
44
CABLE, CHOKE(LITE) Substituted by 7080661
7080405
Unavailable
45
WASHER-LOCK(10)
7571610
$3.99
46
Nut
7080229
$19.99
47
TAPE, FOIL,(PAN)
5810482
Unavailable
48
DECAL,FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Unavailable
49
PLUG,CATCH HOLE
5410582
$7.27
50
CAP,BUMPER END,LH,BLK Substituted by 5431250-070
5431250
Unavailable
51
WASHER(10)
7555806
$1.49
52
RIVET BURR(50)
7555727
$1.49
53
BUMPER,FRT,BLK. Substituted by 5224434-067
5224434
Unavailable
54
SCREW(10)
7512164
Unavailable
55
STRAP,TOOL COMPARTMENT
5410425
Unavailable
56
PLATE,BUMPER
5222611-067
Unavailable
57
PLUG, BUTTON(10)
7080430
Unavailable
58
WASHER WROUGHT(10)
7558403
Unavailable
