FRONT SUSPENSION and SKI Indy Lite GT (4921342134009A)

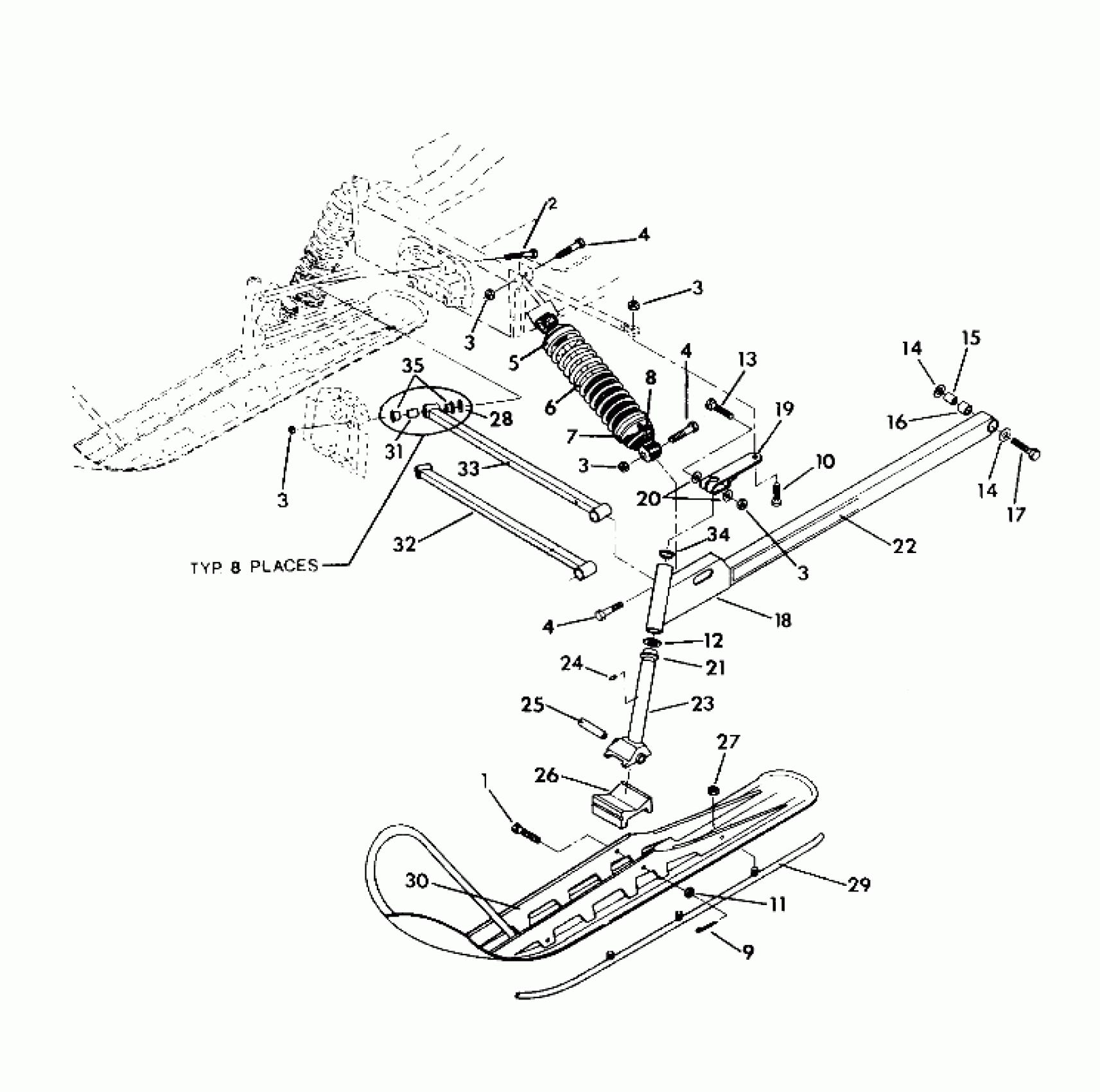

Polaris FIN LITE GT - F923133 FRONT SUSPENSION and SKI Indy Lite GT (4921342134009A) Diagram
#
1
BOLT(10)
7515462
$8.79
2
SCREW(10)
7515509
$1.49
3
NUT LOCK(10)
7542403
$3.99
3
NUT LOCK(10)
7542403
$3.99
3
NUT LOCK(10)
7542403
$3.99
3
NUT LOCK(10)
7542403
$3.99
3
NUT LOCK(10)
7542403
$3.99
4
BOLT(10)
7515415
$1.49
4
BOLT(10)
7515415
$1.49
4
BOLT(10)
7515415
$1.49
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.,BLK.
7041261-067
$164.99
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK,FR.SUSP.
7041144
Unavailable
9
PIN-COTTER(10)
7661205
$1.49
10
BOLT(10)
7512404
$3.99
11
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
12
WASHER SPECIAL(10)
7556509
$1.59
13
BOLT Substituted by 7515491
7515433
$1.59
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE,TRAILING ARM
5010187
Unavailable
16
PIVOT-TRAILING ARM
5410382
Unavailable
17
BOLT(10)
7512557
$7.60
18
ARM,LH TRLG,BLK.
1823136-067
Unavailable
18
ARM,RH TRLG,BLK.
1823137-067
$266.49
19
Arm, Steering
5220326-067
Unavailable
20
WSHR-.813X.406X.105-Y
7555832
$2.39
21
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
22
DECAL,LH,IFS,RED [No Longer Available]
7072950
Unavailable
22
DECAL,RH,IFS,RED [No Longer Available]
7072951
Unavailable
23
SPINDLE,BLK. Substituted by 5130919-067
6230055-067
Unavailable
24
ZERK,FITTING,THREADED(10)
7080433
$1.49
25
BUSHING,PIVOT,(10)
5010158
$19.99
26
Stop, Rubber
5521231
Unavailable
27
NUT-5/16-18 NYLOK-Y
7542324
$1.49
28
WASHER(10)
7555797
$3.99
29
SKAG,SHORT(20) (Pair)
1820267
$23.99
30
SKI Substituted by 1820333
1820325
Unavailable
31
Bushing
5010252
$1.59
32
ROD,RADIUS,BLK,BOTT.
1822083-067
Unavailable
33
ROD,RADIUS,BLK.TOP
1822082-067
Unavailable
34
BUSHING-FLANGE
3573909
$2.39
35
BUSHING, FLANGE
5431132
Unavailable
