BRAKE AND CHAINCASE All Swedish Indy Models (4916051605005A)

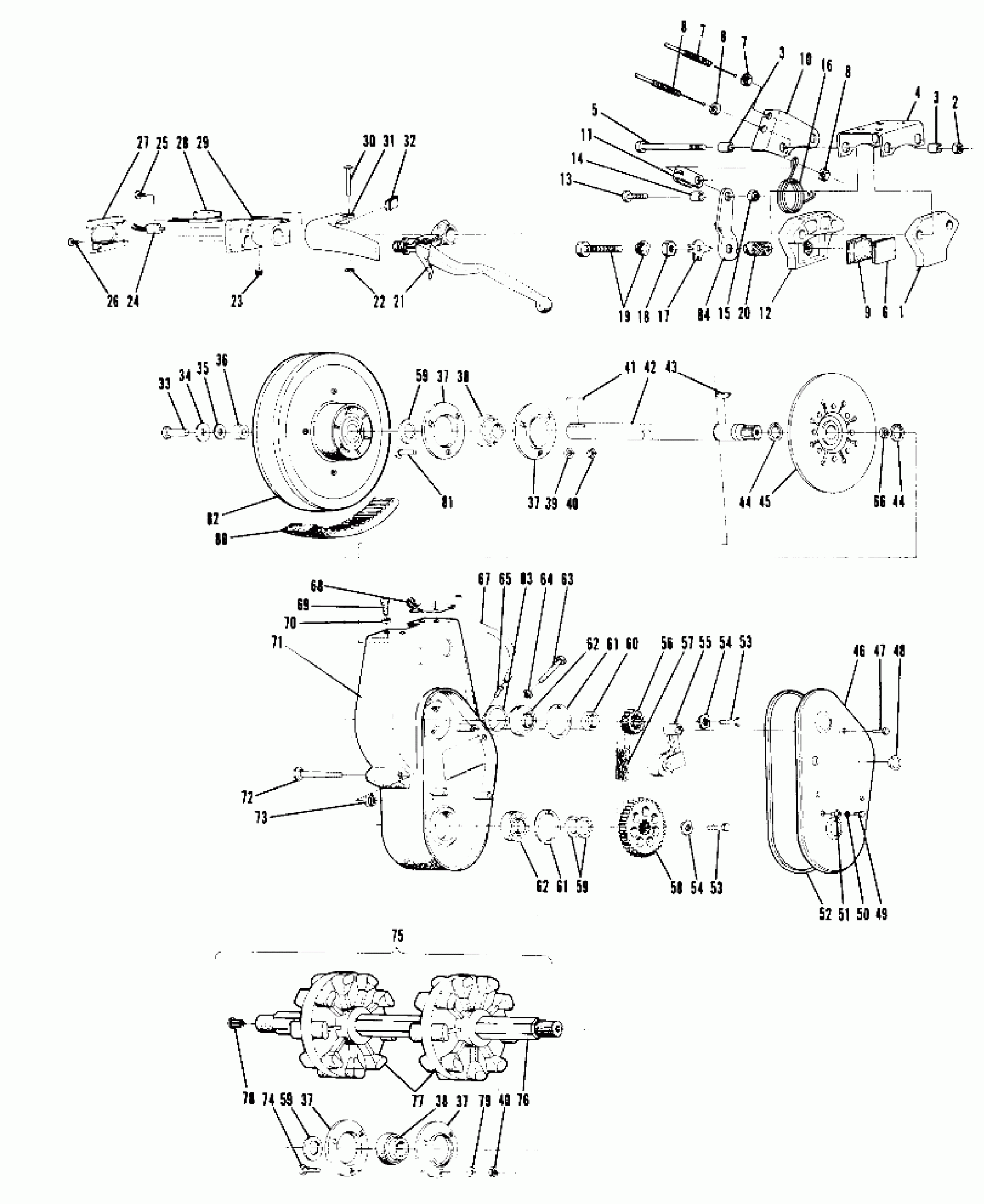

Polaris FIN 500 SKS - F890564 BRAKE AND CHAINCASE All Swedish Indy Models (4916051605005A) Diagram
#
1
CALIPER
5630305
$36.41
2
NUT(10)
7542425
$1.75
3
BUSHING
1930559
Unavailable
3
BUSHING
1930559
Unavailable
4
BRACKET Substituted by 5220514-067 (All except 650 SKS)
5220514
Unavailable
4
BRKT,BRAKE CALIPER (650 SKS)
5222234
Unavailable
5
BOLT(10)
7515478
$11.43
6
PUCK
1930592
Unavailable
7
CABLE [No Longer Available]
7080315
Unavailable
7
CABLE [No Longer Available]
7080315
Unavailable
8
CABLE, BRAKE [No Longer Available] (All except Supertrak)
7080348
Unavailable
8
CABLE, BRAKE (Supertrak)
7080349
Unavailable
8
CABLE, BRAKE [No Longer Available] (All except Supertrak)
7080348
Unavailable
8
CABLE, BRAKE (Supertrak)
7080349
Unavailable
8
CABLE, BRAKE [No Longer Available] (All except Supertrak)
7080348
Unavailable
8
CABLE, BRAKE (Supertrak)
7080349
Unavailable
9
PAD, BRAKE,(THICK)
1930588
Unavailable
10
BRACKET Substituted by 1910024-067
1910024
Unavailable
11
PIN, CLEVIS
7080316
Unavailable
12
CALIPER (All except 650 SKS)
1930593
Unavailable
12
CALIPER ASM,BRAKE (650 SKS)
1930652
Unavailable
12
CALIPER ASM,BRAKE
1930652
Unavailable
13
SCREW(10)
7512116
Unavailable
14
BUSHING
5332795
$5.56
15
NUT-LOCK(10)
7542122
$1.49
16
SPRING, BRAKE RETURN
7041147
Unavailable
17
TAB-JAM NUT LOCK
1930578
Unavailable
18
NUT-JAM
1930577
Unavailable
19
BOLT & STOP
1930590
Unavailable
20
SHAFT-HELIX
1930580
$29.27
21
LEVER ASM,BRAKE
2050039
Unavailable
22
CLIP-SPEED.(10)
7670044
$4.79
23
SCREW(10)
7512465
$3.99
24
SWITCH-BRAKE LITE
4110052
$23.99
25
SCREW(10)
7511840
Unavailable
26
SCREW-SEMS(10)
7511848
$3.99
27
BLOCK-ADAPTER
5430604
$13.75
28
SWITCH-DIMMER
4110051
$27.19
29
BLOCK, THROTTLE Substituted by 5431265 31
5431076
$49.99
29
BLOCK,THROTTLE/BRAKE Substituted by 5431265 (Supertrak, 650 SKS)
5430603
Unavailable
30
RIVET,(50)
7661617
$4.03
31
LEVER-BRAKE
5430602
$36.41
32
CLIP-SPEED.(10)
7670044
$4.79
33
BOLT(10)
7515301
Unavailable
34
WASHER FLAT(10)
7555701
$3.99
35
WASHER(10)
7555734
Unavailable
36
SPACER
5020291
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
37
FLANGETTE Substituted by 5222751
5221172
Unavailable
38
BEARING
3514501
Unavailable
38
BEARING
3514501
Unavailable
39
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
41
KEY-SQUARE(10)
7721204
$3.19
42
SHAFT, INPUT,BLK. Substituted by 5020323-067
5020323
Unavailable
43
KEY,(10)
7727003
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
45
DISC BRAKE ASM
1332091
Unavailable
46
COVER CHAINCASE Substituted by 5222579
5223775
Unavailable
47
BOLT(10)
7512246
Unavailable
48
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
49
SCREW(10)
7511909
$3.99
50
WASHER, FLAT(10)
7558201
$5.79
51
NUT-WELL(10)
7541918
Unavailable
52
GASKET-CHAINCASE
5410277
$24.99
53
BOLT(10)
7512325
$2.39
53
BOLT(10)
7512325
$2.39
54
WASHER SHAKEPROOF(10) Substituted by 7577902
7577908
Unavailable
54
WASHER SHAKEPROOF(10) Substituted by 7577902
7577908
Unavailable
55
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
56
SPROCKET 19 T
3221034
Unavailable
56
SPROCKET 21 T
3221035
Unavailable
56
SPROCKET 17 T
3221033
Unavailable
56
SPROCKET-18T
3221037
Unavailable
57
CHAIN 64 PITCH
3224023
Unavailable
57
CHAIN,62P,SILENT
3224026
Unavailable
58
SPROCKET 35 T
3222036
$53.59
59
WASHER SPECIAL(10)
7556509
$1.59
59
WASHER SPECIAL(10)
7556509
$1.59
59
WASHER SPECIAL(10)
7556509
$1.59
60
SPACER Substituted by 5010270
5010128
Unavailable
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
62
BEARING
3514303
$11.99
62
BEARING
3514303
$11.99
63
SCREW(10)
7512470
Unavailable
64
NUT(10)
7542404
$1.59
65
PIN-SPIRAL(10)
7661504
$1.27
66
SPACER,DISK BRAKE
5020430
Unavailable
67
KIT-TANK VENT
2200190
Unavailable
68
RETAINER,RECOIL [No Longer Available]
1011528
Unavailable
69
BOLT(10)
7512240
$3.99
70
LOCK WASHER(10)
7552801
$1.59
71
CHAINCASE Substituted by 1332124 (All except 650 SKS)
5130652
$261.90
71
CHAINCASE,(SWED) (650 SKS)
5130705
Unavailable
72
BOLT(10)
7515428
$4.79
73
NUT(10)
7542423
$3.99
74
BOLT(10)
7512331
$3.99
75
DRIVE SHAFT ASM 33
1590198
Unavailable
75
DRIVESHAFT ASM. (Incl. 76-78) 650 SKS
1590218
Unavailable
76
DRIVE SHAFT
5020388
Unavailable
77
SPROCKET, 9T
5430571
Unavailable
77
SPROCKET, HALF,9T (650 SKS Only)
5430993
Unavailable
78
BUSHING METAL SPEEDO
3280019
$11.99
79
WASHER(10)
7555725
Unavailable
80
BELT DRIVE(5)
3211042
$109.99
81
BOLT(10) Substituted by 7512377
7512394
Unavailable
82
Driven Clutch
-------
Unavailable
82
Driven Clutch
-------
Unavailable
82
Driven Clutch
-------
Unavailable
83
O-RING,CHAINCASE
5410401
Unavailable
84
LEVER
1930594
Unavailable
