Description

Price

14024L

COVER,SEAT,EBONY

14024-5106-H8

Unavailable

14024M

COVER,SEAT,P.A.WHITE

14024-5107-R1

Unavailable

21083

ARM,SEAT LOCK

21083-1063

$9.45

23036

BRACKET-TAIL LAMP

23036-1111

$19.30

27012

HOOK,SEAT LOCK

27012-1363

$52.38

32085

STOPPER,SEAT LOCK SPRING

32085-1270

$18.41

53001A

SEAT-ASSY,DUAL,BLACK

53001-1519-MA

$444.45

53003

LEATHER,SEAT,BLACK

53003-1179-MA

$157.70

56008

BAG,HAND BOOK

56008-1066

$52.38

59071

JOINT

59071-1103

$8.68

92001

BOLT

92001-1825

$4.11

92002

BOLT,6X14

92002-1351

$4.31

92015

NUT,6MM

92015-1671

$7.61

92075

DAMPER,10X24X12

92075-1690

$5.00

92075A

DAMPER,SIDE COVER

92075-1962

Unavailable

92144

SPRING

92081-1982

$6.87

130

BOLT-FLANGED,6X14

130D0614

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

$2.62

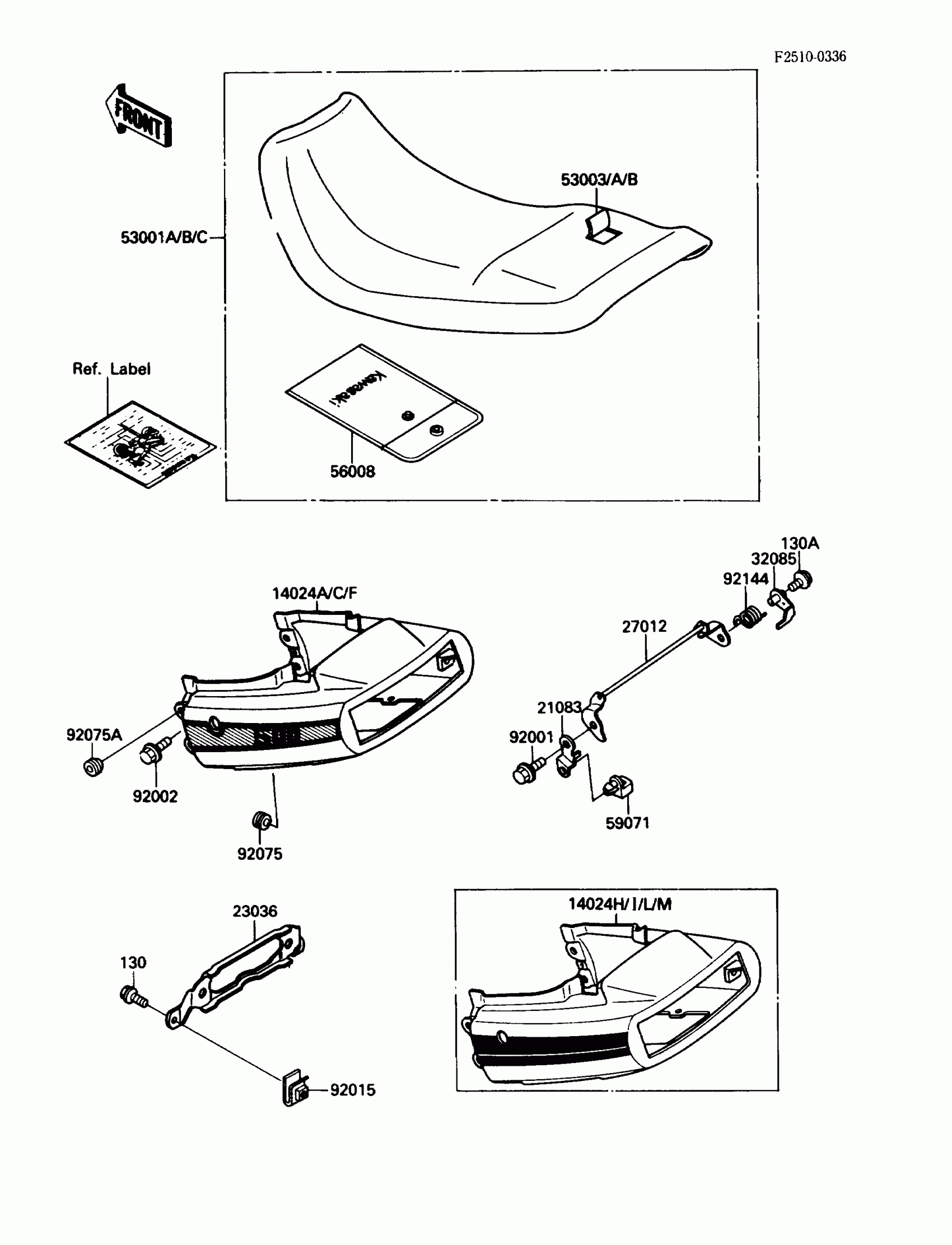

Kawasaki EX500 Seat Diagram

COVER,SEAT,EBONY

COVER,SEAT,P.A.WHITE

ARM,SEAT LOCK

BRACKET-TAIL LAMP

HOOK,SEAT LOCK

STOPPER,SEAT LOCK SPRING

SEAT-ASSY,DUAL,BLACK

LEATHER,SEAT,BLACK

BAG,HAND BOOK

JOINT

BOLT

BOLT,6X14

NUT,6MM

DAMPER,10X24X12

DAMPER,SIDE COVER

SPRING

BOLT-FLANGED,6X14

BOLT-FLANGED,6X25
