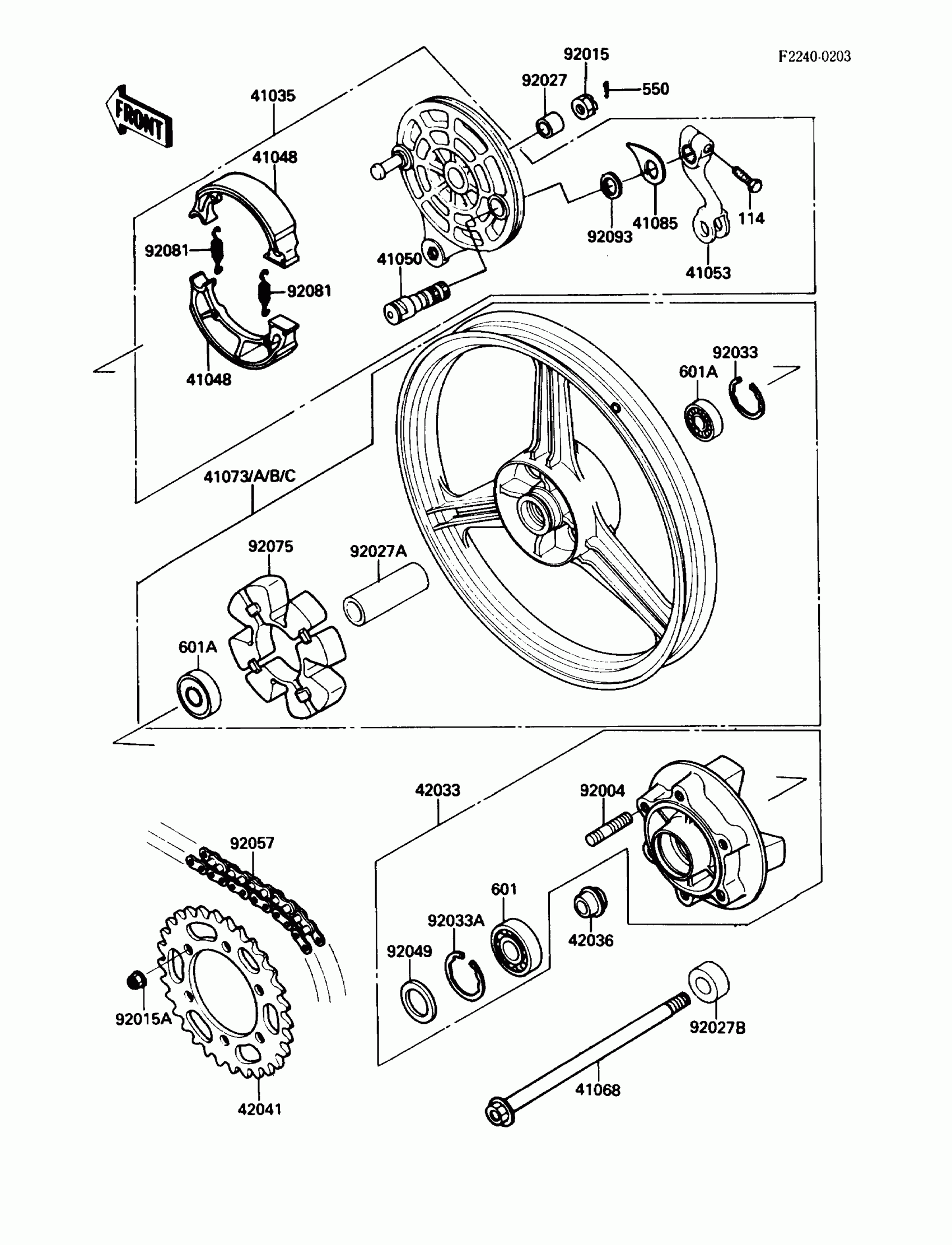

Kawasaki EX500 Rear Wheel/Chain Diagram
#
Description
Price
41035
PANEL-ASSY-BRAKE,RR
41035-1230
Unavailable
41048
SHOE-BRAKE
41048-020
$27.31
41050
CAM-BRAKE
41050-1065
$40.13
41053
LEVER-BRAKE CAM
42029-039
$65.77
41068
AXLE,RR
42031-053
$57.01
41073
WHEEL-ASSY,RR,WHITE NO.1
41073-1359-T6
$593.05
41073B
WHEEL-ASSY,RR,F.RED
41073-1359-X4
$625.66
41073C
WHEEL-ASSY,RR,F.RED
41073-1413-X4
$625.66
41085
INDICATOR,BRAKE SHOE
41085-004
Unavailable
42033
COUPLING-ASSY,RR HUB
42033-1114
$232.73
42036
SLEEVE,RR HUB,L=33
42036-1146
$49.58
42041
SPROCKET-HUB,42T
42041-1279
$75.39
92004
STUD,10X24
92004-1146
$5.60
92015
NUT,CASTLE,16MM
42045-014
$9.91
92015A
NUT,FLANGED,10MM
92015-1502
$10.28
92027
COLLAR,REAR AXLE,RH,L=18.5
92027-1484
Unavailable
92027A
COLLAR,REAR BRAKE DRUM,L=90
92027-1772
$16.91
92027B
COLLAR,RR HUB
92027-1784
$23.89
92033
RING-SNAP,47MM
92033-1042
$4.22
92033A
RING-SNAP,52MM
92033-1043
$8.05
92049
SEAL-OIL,TWC35527
92052-006
Unavailable
92057
CHAIN,DRIVE,EK520SX-OX104L
92057-1228
$264.07
92075
DAMPER,SHOCK,RR HUB
92075-1687
$79.09
92081
SPRING,BRAKE SHOE
42020-004
$8.51
92093
SEAL,BRAKE CAM
41051-003
$4.26
114
BOLT HEX HEAD 8X28
114G0828
$3.71
550
PIN-COTTER,4.0X35
550D4035
$2.17
601
BEARING-BALL,#6205G
601B6205G
$19.08
601A
BEARING-BALL,#6303ZZC3
601B6303ZZ
$40.38
