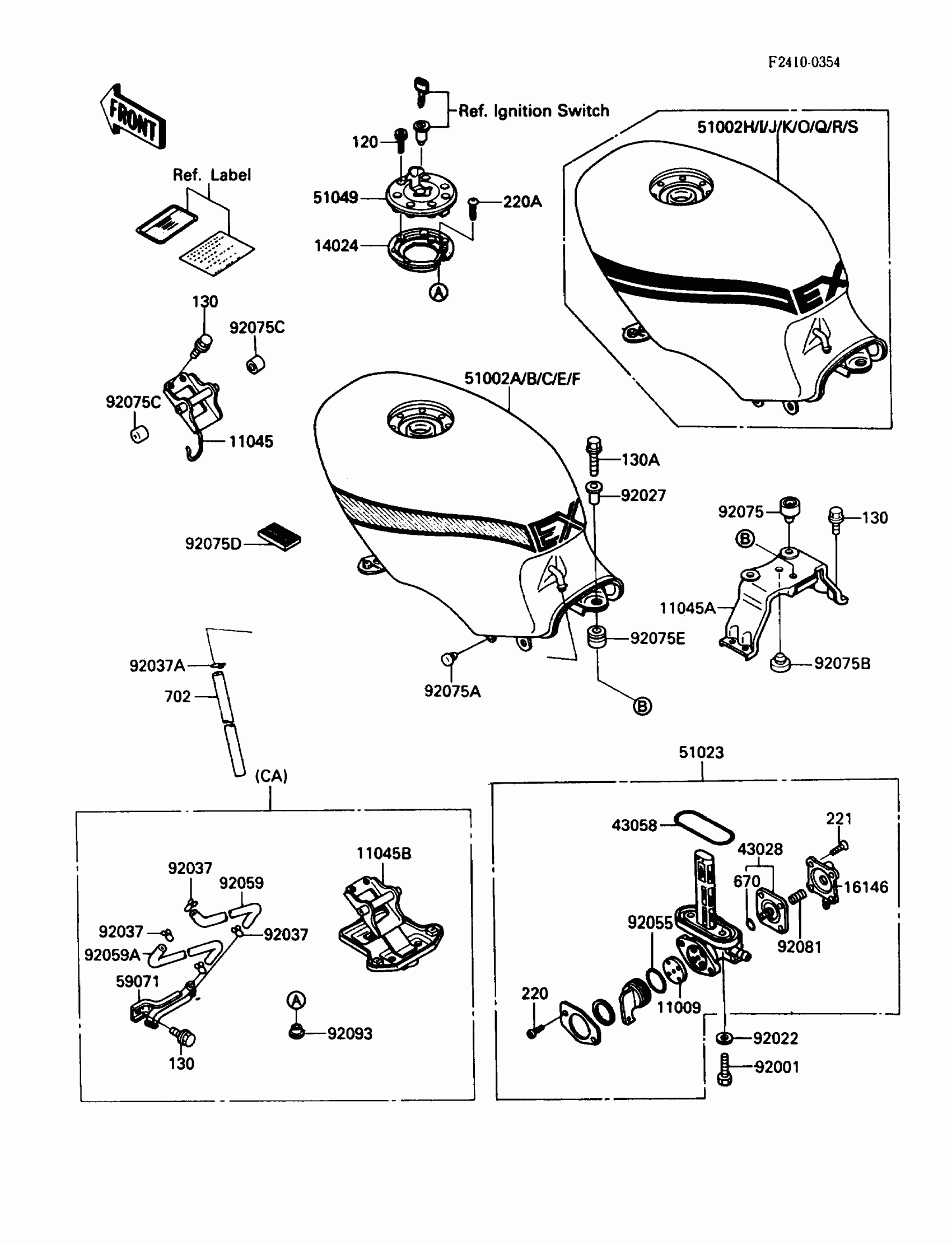

Kawasaki EX500 Fuel Tank Diagram
#
11009
GASKET,TAP VALVE
11009-1188
$5.74
11045
BRACKET,FUEL TANK,FR
11045-1362
$42.53
11045A
BRACKET,FUEL TANK,RR
11045-1363
Unavailable
11045B
BRACKET,FUEL TANK,FR
11045-1389
$73.47
14025
COVER,TANK CAP
14025-1913
$21.55
16146
COVER-ASSY,TAP DIAPHRAGM
16146-1010
$25.31
43028
DIAPHRAGM
43028-1033
$22.90
43028
DIAPHRAGM
43028-1033
$22.90
43058
RING,TAP FLANGED
51039-003
$6.27
51002O
TANK-COMP-FUEL,EBONY
51002-5410-H8
$674.33
51002Q
TANK-COMP-FUEL,EBONY
51002-5480-H8
$674.33
51002R
TANK-COMP-FUEL,P.A.WHITE
51002-5491-R1
$1,136.59
51002S
TANK-COMP-FUEL,P.A.WHITE
51002-5492-R1
$673.09
51023
TAP-ASSY,FUEL
51023-1142
$132.20
51049
CAP-TANK,FUEL
51049-1091
$115.45
59071
JOINT,EVAPO
59071-1122
$47.83
92001
BOLT,6X20
92001-1091
$3.92
92022
WASHER-PLAIN
92022-183
$3.92
92027
COLLAR,L=19.3
92027-1780
$6.57
92037
CLAMP,TUBE
92037-010
$3.92
92037A
CLAMP
92037-1712
$5.00
92055
RING-O,TAP LEVER
92055-1085
$5.05
92059
TUBE,EVAPO
92059-1767
$10.97
92059A
TUBE,EVAPO
92059-1768
$9.82
92075
DAMPER
92075-015
$5.00
92075A
DAMPER
92075-021
$5.24
92075B
DAMPER
92075-1045
$8.86
92075C
DAMPER,FUEL TANK,FR
92075-1115
$6.57
92075D
DAMPER
92075-1489
$8.94
92075E
DAMPER
92075-1736
$6.57
92081
SPRING,TAP DIAPHRAGM
92081-1240
$3.89
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
120
BOLT-SOCKET,5X12
120S0512
$1.71
130
BOLT
130B0612
$0.67
130
BOLT
130B0612
$0.67
130A
BOLT-FLANGED,8X30
130B0830
$0.74
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
220A
SCREW-PAN-CROSS
220C0508
$0.55
221
SCREW-CSK-CROS,4X14
221B0414
$3.41
670
O RING,4MM
670B1504
$4.11
702
TUBE-RUBBER,7X10X380
702A07380
$13.38
