Description

Price

11009

GASKET,CLUTCH COVER

11009-1484

Unavailable

11009A

GASKET,CHANGE MECHANISM COVER

11009-1485

Unavailable

11009B

GASKET,GENERATOR COVER

11009-1486

Unavailable

11009C

GASKET,10.5X16X1

92065-058

$3.96

11012

CAP

11012-1362

$8.79

11012A

CAP,TOP MARK

11012-1363

$6.51

12053

GUIDE-CHAIN

12053-1215

$15.76

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

14024

COVER,CHANGE MECHANISM

14024-1387

$109.83

14026

COVER-CHAIN

14026-1128

$75.63

14031

COVER-GENERATOR

14031-1202

$228.39

14032

COVER-CLUTCH

14032-1231

Unavailable

16115

CAP-OIL FILLER

16115-1009

$14.30

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92027

COLLAR

92027-1858

$6.16

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,TB12205.5

92049-1271

$9.28

92049A

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,31.5X2.6

92055-049

$4.31

92075

DAMPER

92075-1681

$6.16

130

BOLT-FLANGED

130Y0612

$1.69

132

BOLT-FLANGED-SMALL,6X20

132J0620

$3.64

132A

BOLT-FLANGED-SMALL

132W0625

$2.62

132B

BOLT-FLANGED-SMALL

132W0630

$3.84

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

$0.72

670

O RING,18MM

670B2018

$1.42

671

O RING,40MM

671B2540

$6.22

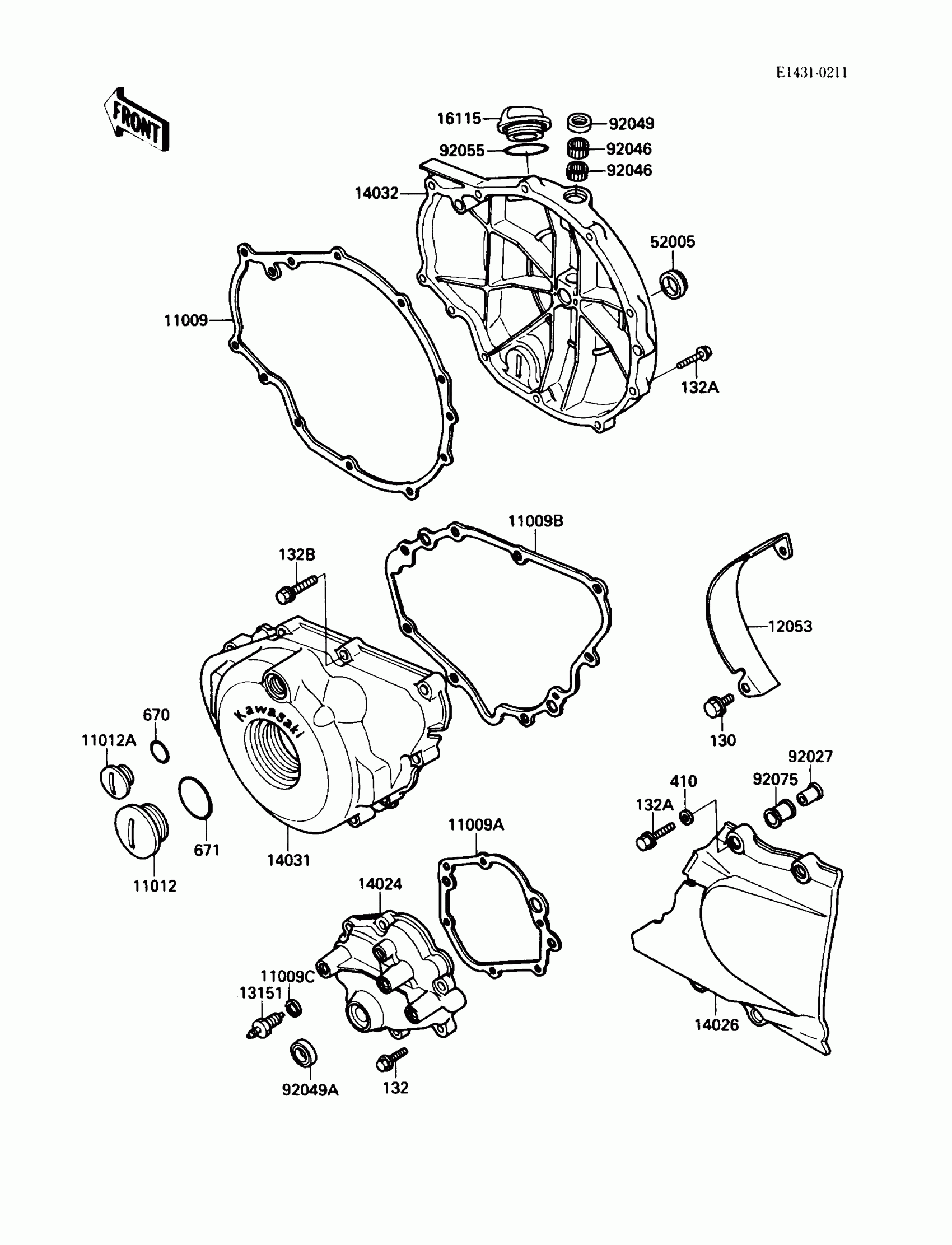

Kawasaki EX500 Engine Cover(s) Diagram

GASKET,CLUTCH COVER

GASKET,CHANGE MECHANISM COVER

GASKET,GENERATOR COVER

GASKET,10.5X16X1

CAP

CAP,TOP MARK

GUIDE-CHAIN

SWITCH-COMP,NEUTRAL

COVER,CHANGE MECHANISM

COVER-CHAIN

COVER-GENERATOR

COVER-CLUTCH

CAP-OIL FILLER

GAUGE,OIL LEVEL

COLLAR

BEARING-NEEDLE,HK1210

SEAL-OIL,TB12205.5

SEAL-OIL,TB13225.5

RING-O,31.5X2.6

DAMPER

BOLT-FLANGED

BOLT-FLANGED-SMALL,6X20

BOLT-FLANGED-SMALL

BOLT-FLANGED-SMALL

WASHER-PLAIN-SMALL,6MM,BLACK

O RING,18MM

O RING,40MM
