Description

Price

11045

BRACKET,COWLING

11045-1816

Unavailable

14024

COVER,UPPER COWLING,RED

14024-1385-L1

Unavailable

14024B

COVER,UPPER COWLING,LWR,EBONY

14024-1385-6C

Unavailable

14024C

COVER,INNER COWLING,RH

14024-1392

Unavailable

14025

COVER,TRIM END

14025-1756

$7.60

39154

WINDSHIELD

39154-1100

$340.25

53044

TRIM,WINDSHIELD

53044-1120

Unavailable

55028

COWLING,INNER,LH

55028-1145

Unavailable

55028A

COWLING,INNER,RH

55028-1146

$48.40

55048J

COWLING.,UPP,C.C.RED

55048-5473-L1

$1,103.77

55048K

COWLING.,UPP,EBONY

55048-5474-H8

$1,154.20

56001

MIRROR-ASSY,LH

56001-1250

Unavailable

56001A

MIRROR-ASSY,RH

56001-1251

Unavailable

92009

SCREW,TAPPING,5X15

92009-1479

$4.38

92009A

SCREW,5X12

92009-1652

$3.96

92009B

SCREW,5X16,BLACK

92009-1654

$3.13

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015A

NUT,5MM,COWLING

92015-1343

$4.39

92015B

NUT,5MM

92015-1638

Unavailable

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92075

DAMPER,MIRROR

92075-1492

$8.12

92075A

DAMPER,MIRROR

92075-1745

$8.12

221

SCREW-CSK-CROSS

221C0630

$1.69

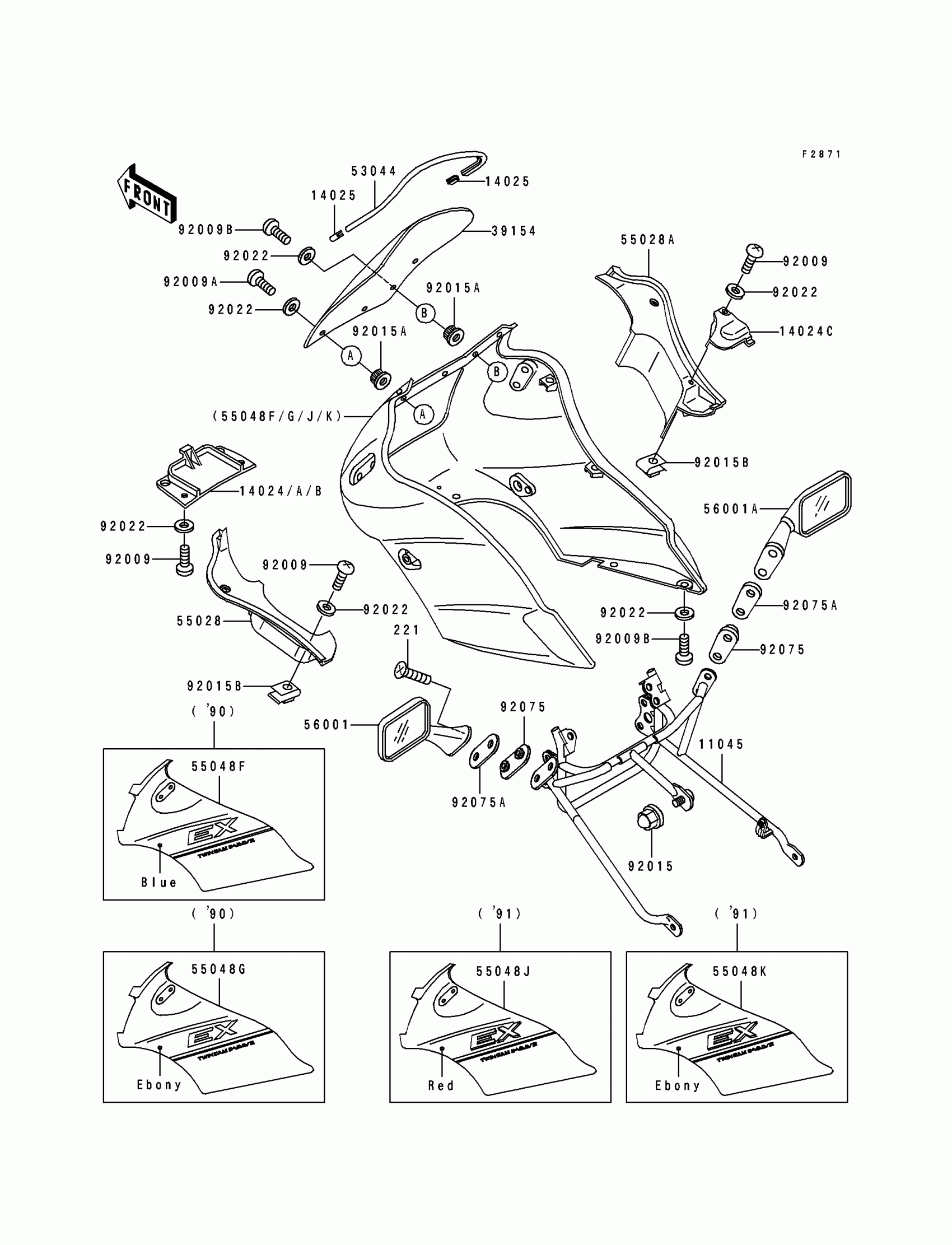

Kawasaki EX500 Cowling(EX500-A4/A5) Diagram

BRACKET,COWLING

COVER,UPPER COWLING,RED

COVER,UPPER COWLING,LWR,EBONY

COVER,INNER COWLING,RH

COVER,TRIM END

WINDSHIELD

TRIM,WINDSHIELD

COWLING,INNER,LH

COWLING,INNER,RH

COWLING.,UPP,C.C.RED

COWLING.,UPP,EBONY

MIRROR-ASSY,LH

MIRROR-ASSY,RH

SCREW,TAPPING,5X15

SCREW,5X12

SCREW,5X16,BLACK

NUT,CAP,8MM,BLACK

NUT,5MM,COWLING

NUT,5MM

WASHER,NYLON,5.3X11.5X1.5

DAMPER,MIRROR

DAMPER,MIRROR

SCREW-CSK-CROSS
