Description

Price

11045

BRACKET,COWLING

11045-1816

Unavailable

14024

COVER,UPPER COWLING,LWR,WHITE

14024-1385-R1

Unavailable

14024A

COVER,UPPER COWLING,LWR,F.RED

14024-1385-6L

Unavailable

14024B

COVER,INNER COWLING,RH

14024-1392

Unavailable

14024C

COVER,TRIM END

14025-1756

$7.60

39154

WINDSHIELD

39154-1067

$340.25

53044

TRIM,WINDSHIELD

53044-1120

Unavailable

55028

COWLING,INNER,LH

55028-1145

Unavailable

55028A

COWLING,INNER,RH

55028-1146

$48.40

55028E

COWLING,UPP,F.RED

55028-5375-B1

$1,346.07

55028F

COWLING,UPP,P.A.WHITE

55028-5376-R1

$1,156.96

56001

MIRROR-ASSY,LH

56001-1250

Unavailable

56001A

MIRROR-ASSY,RH

56001-1251

Unavailable

92009

SCREW,5X16,BLACK

92009-1301

$3.13

92009A

SCREW,TAPPING,5X15

92009-1479

$4.38

92009B

SCREW,5X12,BLACK

92009-1490

$3.96

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015A

NUT,5MM,COWLING

92015-1343

$4.39

92015B

NUT,5MM

92015-1638

Unavailable

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92075

DAMPER,MIRROR

92075-1492

$8.12

92075A

DAMPER,MIRROR

92075-1745

$8.12

221

SCREW-CSK-CROSS

221C0630

$1.69

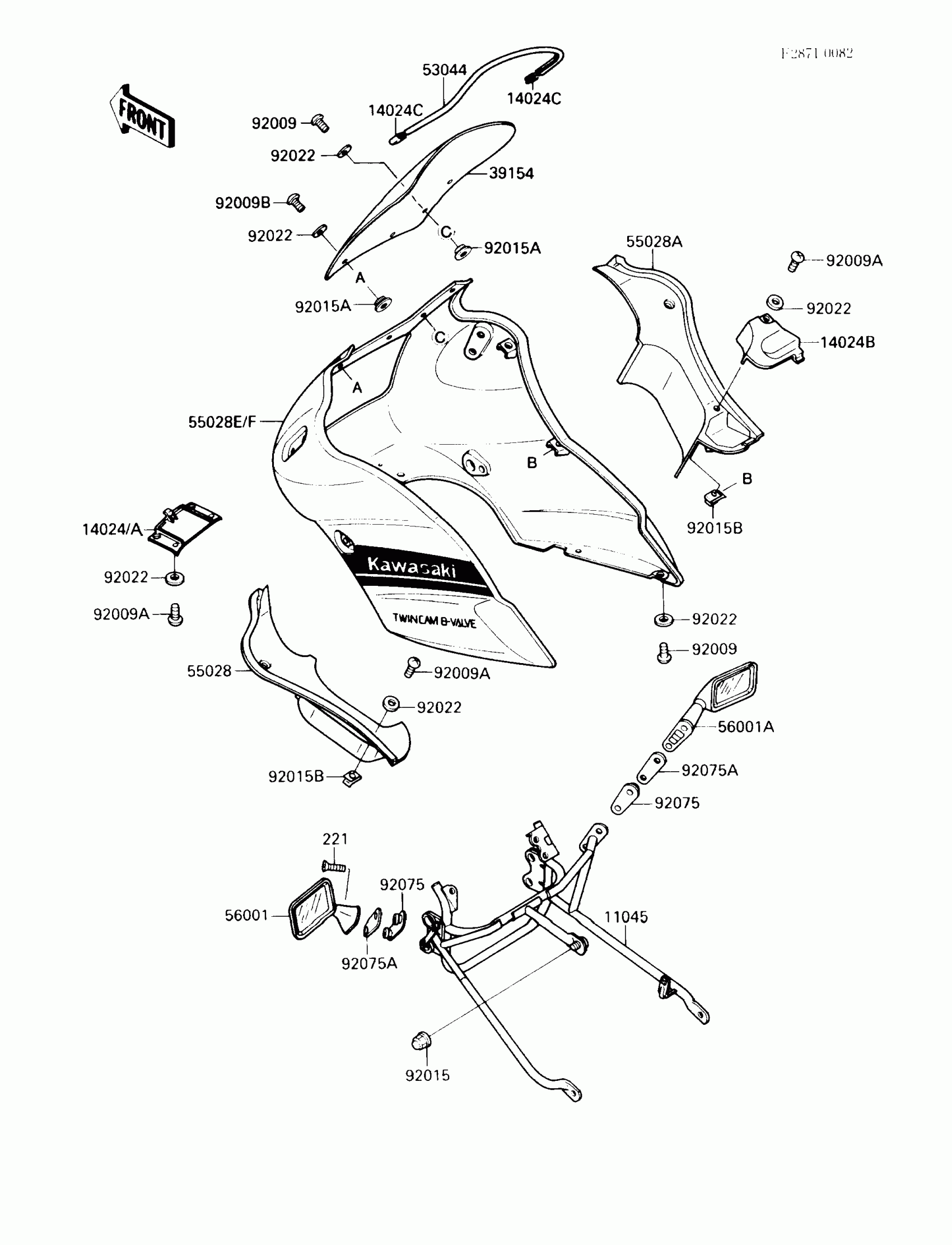

Kawasaki EX500 Cowling(EX500-A2) Diagram

BRACKET,COWLING

COVER,UPPER COWLING,LWR,WHITE

COVER,UPPER COWLING,LWR,F.RED

COVER,INNER COWLING,RH

COVER,TRIM END

WINDSHIELD

TRIM,WINDSHIELD

COWLING,INNER,LH

COWLING,INNER,RH

COWLING,UPP,F.RED

COWLING,UPP,P.A.WHITE

MIRROR-ASSY,LH

MIRROR-ASSY,RH

SCREW,5X16,BLACK

SCREW,TAPPING,5X15

SCREW,5X12,BLACK

NUT,CAP,8MM,BLACK

NUT,5MM,COWLING

NUT,5MM

WASHER,NYLON,5.3X11.5X1.5

DAMPER,MIRROR

DAMPER,MIRROR

SCREW-CSK-CROSS
