- EURU 440 SKS - E942560
TUNNEL ASSEMBLY 440 E942760 and 440 SKS E942560 (49273927390001)

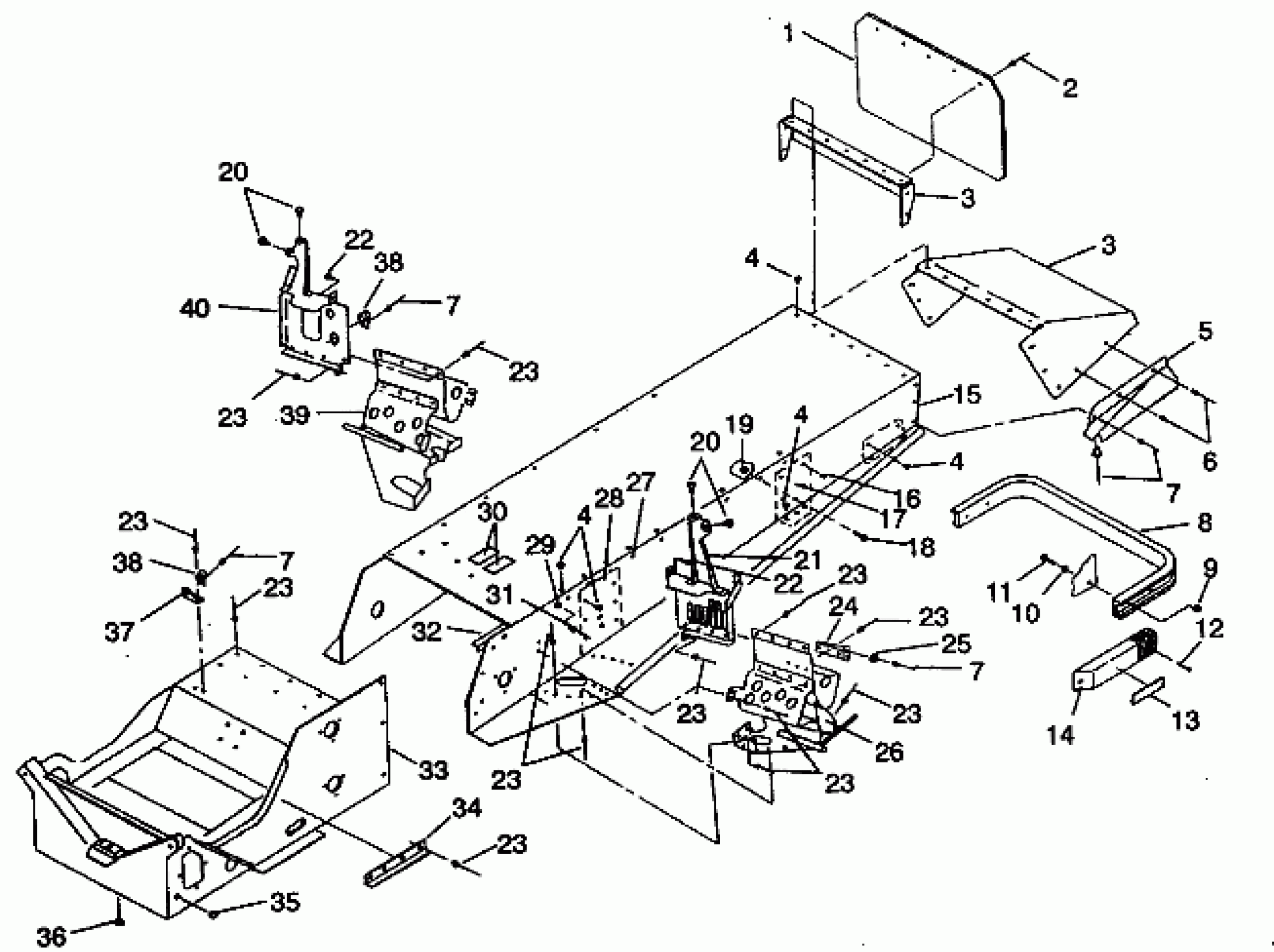

Polaris EURU 440 SKS - E942560 TUNNEL ASSEMBLY 440 E942760 and 440 SKS E942560 (49273927390001) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
2
POP RIVET(50)
7621418
$1.49
3
PANEL,TUNNEL,BACK Substituted by 5220478-067 (440)
5220478
Unavailable
3
PANEL,R.CLOSE-OFF ASM. (SKS)(Incl. Rivets)
1011799
$32.95
3
PANEL,TUNNEL,BACK Substituted by 5220478-067 (440)
5220478
Unavailable
3
PANEL,R.CLOSE-OFF ASM. (SKS)(Incl. Rivets)
1011799
$32.95
4
RIVET Substituted by 7661829
7661828
Unavailable
4
RIVET Substituted by 7661829
7661828
Unavailable
4
RIVET Substituted by 7661829
7661828
Unavailable
4
RIVET Substituted by 7661829
7661828
Unavailable
5
SKIRT,LH,SNOW,BLK. Substituted by 5431627-070 (SKS Only)
5431627
$26.98
5
SKIRT,RH,SNOW,BLK. Substituted by 5431645-070 (SKS Only)
5431645
$31.11
6
RIVET(50) (SKS Only)
7621472
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
8
Bumper, Rear (See Pg. 2, Ref. 7)(440)
-------
Unavailable
9
NUT-LOCK(10)
7542122
$1.49
10
WASHER(10)
7558301
$1.49
11
BOLT(10)
7512240
$3.99
12
SCREW(10)
7511863
$1.99
13
REFLECTOR RED
2670070
$9.91
14
CAP, BUMPER, BLK.
5430930-070
Unavailable
15
TUNNEL ASM. (440)
1011956
Unavailable
15
TUNNEL,2-UP(440SKS,EURO) [No Longer Available] (SKS)
1012030
Unavailable
16
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
17
BRKT,RH.REAR SUSP. (SKS)
1011906-067
Unavailable
17
BRKT,LH.REAR SUSP (SKS)
1011905-067
Unavailable
17
BRKT,RH,R.SUSP. (440)
1011858-067
Unavailable
17
BRKT,LH,R.SUSP (440)
1011857-067
Unavailable
18
BOLT(10) Substituted by 7515494 (SKS Only)
7515482
Unavailable
19
NUT(10) (SKS Only)
7542423
$3.99
20
BUMPER,HOOD
5410768
$2.95
20
BUMPER,HOOD
5410768
$2.95
21
MT,CONSOLE,LH
1011951-067
$35.51
22
SCREW(10)
7512057
$2.38
22
SCREW(10)
7512057
$2.38
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
23
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
24
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
25
STOP, BUMPER
5410826
Unavailable
26
FOOTREST ASM,LH
1011954
Unavailable
27
NUT,SERT(10)
7541938
Unavailable
28
BRKT.,FR.SUSPENSION Substituted by 5211323-067
5211323
$29.99
29
SNAP-MALE(10)
7080227
Unavailable
30
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
31
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
32
BRACE,REINF.TUNNEL
5240242
Unavailable
33
WELD-BULKHEAD,BLK
1012041-067
Unavailable
34
GUARD,ADAPTER GUIDE
5222857
$12.94
35
PLUG, HOLE(10)
7080512
$2.63
36
PLUG-HOLE
7080398
$4.84
37
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
38
GUIDE, RECOIL
5431385
$10.51
38
GUIDE, RECOIL
5431385
$10.51
39
FOOTREST ASM,RH
1011955
$126.41
40
MT,CONSOLE,RH
1011952-067
$339.99
