STEERING ASSEMBLY 440 E942760 and 440 SKS E942560 (49273927390014)

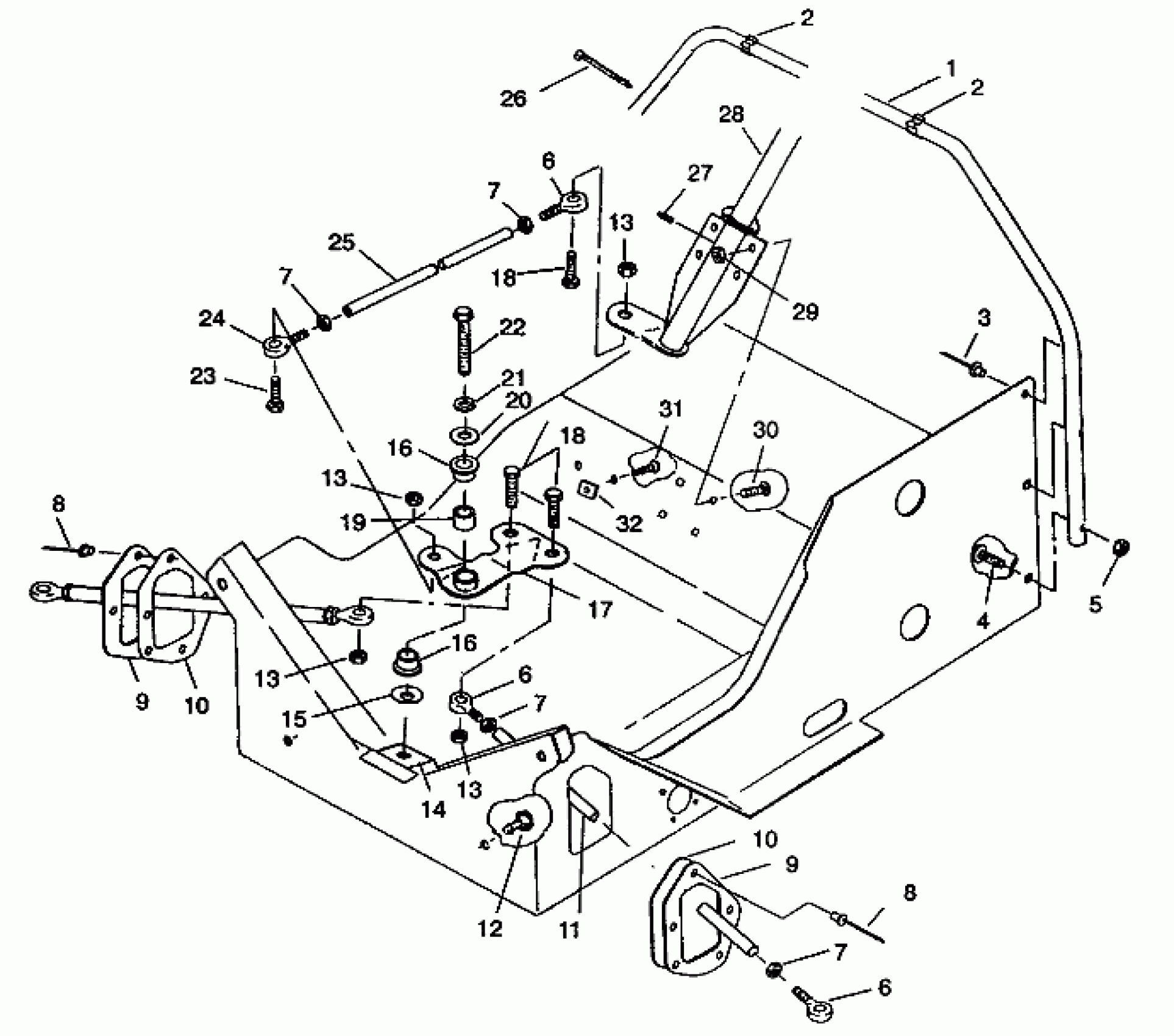

Polaris EURU 440 SKS - E942560 STEERING ASSEMBLY 440 E942760 and 440 SKS E942560 (49273927390014) Diagram
#
1
HOOP,STRG,BLK.
1011929-067
$28.19
2
CLIP(10)
7080278
$2.63
2
CLIP(10)
7080278
$2.63
3
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
4
BOLT-CARRIAGE(10)
7512275
$3.99
5
NUT, LOCK(10)
7542103
$5.59
6
ROD END, LH Substituted by 7060166
7060151
$48.56
6
ROD END, RH Substituted by 7060167
7060152
$48.56
6
ROD END, LH Substituted by 7060166
7060151
$48.56
6
ROD END, RH Substituted by 7060167
7060152
$48.56
6
ROD END, LH Substituted by 7060166
7060151
$48.56
6
ROD END, RH Substituted by 7060167
7060152
$48.56
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
8
RIVET(50)
7621301
$3.99
8
RIVET(50)
7621301
$3.99
9
PLATE,BOOT SEAL
5222942
Unavailable
9
PLATE,BOOT SEAL
5222942
Unavailable
10
BOOT,TIEROD
5410761
$12.94
10
BOOT,TIEROD
5410761
$12.94
11
ROD,TIE,BLACK (SKS)
5332713-067
Unavailable
11
TIEROD (440)
5020636-067
Unavailable
12
CLIP, PLASTIC(10)
4020139
$4.79
13
NUT LOCK(10)
7542403
$3.99
13
NUT LOCK(10)
7542403
$3.99
13
NUT LOCK(10)
7542403
$3.99
13
NUT LOCK(10)
7542403
$3.99
14
BLOCK, CTR.STRG.
5130889
$139.68
15
WASHER,WAVE(10)
7555735
$3.99
16
BUSHING
3563907
$3.99
16
BUSHING
3563907
$3.99
17
ARM,STRG,CTR.
1822124-067
$13.99
18
BOLT(10) Substituted by 7515492
7512410
Unavailable
18
BOLT(10) Substituted by 7515492
7512410
Unavailable
19
BUSHING-SPACER
5010161
Unavailable
20
WASHER(10)
7555721
$1.49
21
LOCK WASHER(10)
7553201
$3.99
22
BOLT(10)
7512680
Unavailable
23
BOLT(10)
7512404
$3.99
24
ROD END,LH Substituted by 7060164
7060124
$48.56
25
ROD, DRAG, LINK
5333144
Unavailable
26
STRAP, BLK
7080272
Unavailable
27
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
28
POST,STRG,BLK.
1823157-067
Unavailable
29
NUT-5/16-18 NYLOK-Y
7542324
$1.49
30
BOLT(10) Substituted by 7512377
7512394
Unavailable
31
BOLT-CARRIAGE(10)
7512263
$3.99
32
SPEED NUT(10)
7670021
$6.99
