SEAT and GAS TANK ASSEMBLY 440 E942760 and 440 SKS E942560 (49273927390003)

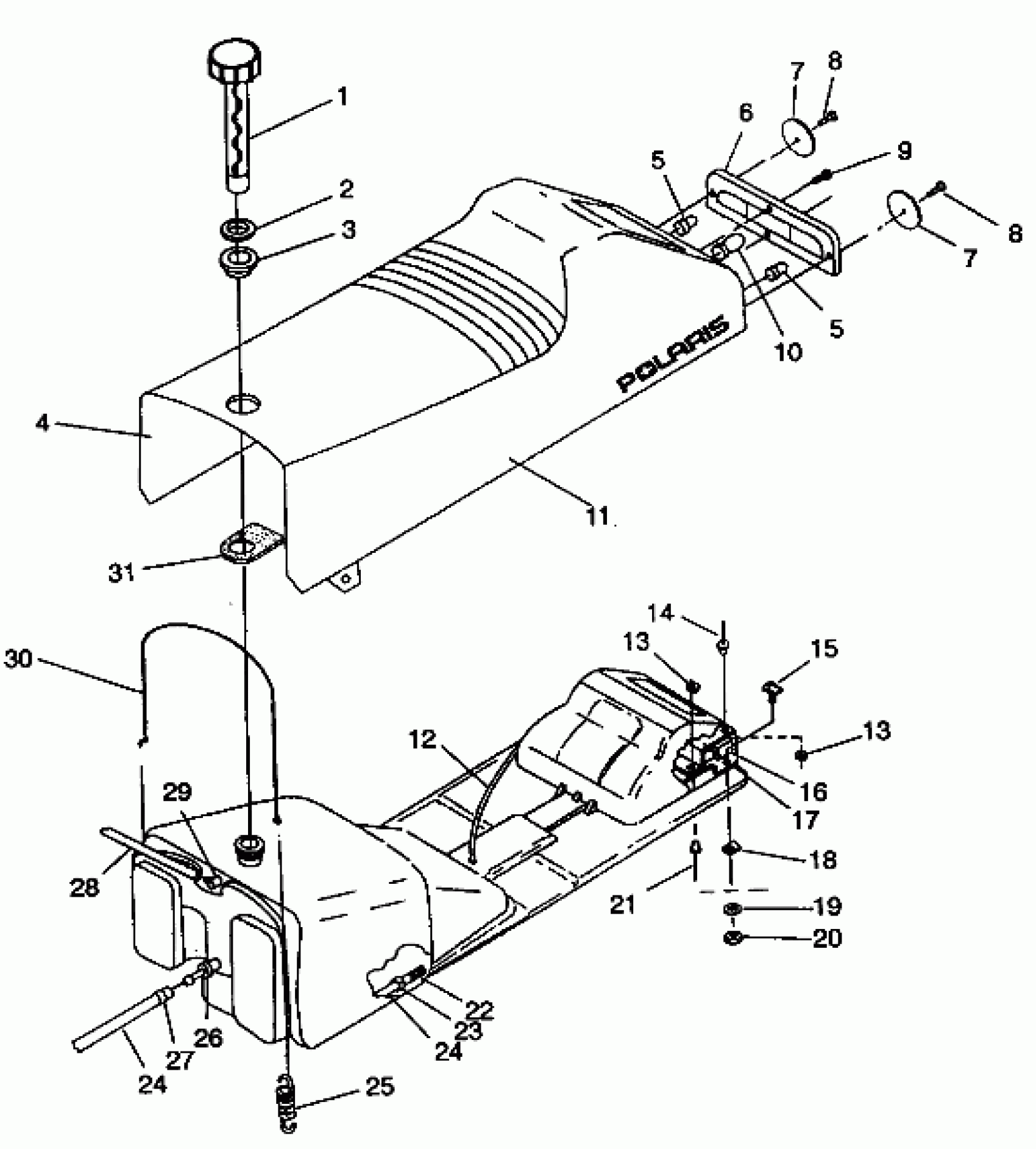

Polaris EURU 440 SKS - E942560 SEAT and GAS TANK ASSEMBLY 440 E942760 and 440 SKS E942560 (49273927390003) Diagram
#
Description
Price
1
CAP,FUEL W/GAUGE Substituted by 2511248
2511227
$44.51
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410815
Unavailable
4
SEAT ASM,440 L/C'94 (440)(Incl. 5-10,13,14,20-22,24,27,28) (SKS)(See Pg. 4, Ref. 14)(Incl. 5-12,5,16,22-24,26,29,30)
2681662
$399.99
4
ASM., SEAT CUSHION (SKS)(Incl. 5-10,13,14,20-22,24,27,28) (440)(Incl. 5-12,15,16,22-24,26,29,30)
2681697
$399.99
5
BULB,TAILLIGHT(10)
4030024
$4.84
5
BULB,TAILLIGHT(10)
4030024
$4.84
6
LENS,TAILLIGHT
5430423
Unavailable
7
REFLECTOR
5430781
Unavailable
7
REFLECTOR
5430781
Unavailable
8
SCREW(10)
7511856
Unavailable
8
SCREW(10)
7511856
Unavailable
9
SCREW(10)
7511840
Unavailable
10
Bulb, Brakelight
4030045
Unavailable
11
COVER,SEAT,STD. (440)
2681648
Unavailable
11
COVER,SEAT(440 SKS) (SKS)
2681699
Unavailable
12
HARNESS,TAILLIGHT
2460398
Unavailable
13
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
13
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
14
RIVET, BLIND(50)
7621467
$1.49
15
MOUNT, REAR SEAT
1011855
Unavailable
16
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
17
COVER,T/L PROTECTOR
5431436
$21.43
18
SPEED NUT(10)
7670021
$6.99
19
WASHER(10)
7558301
$1.49
20
NUT-LOCK(10)
7542122
$1.49
21
RIVET(50)
7621460
$1.49
22
FUELPICKUP,W/STRAINER
7052037
$12.94
23
RING, COMPRESSION(10)
7080402
$1.60
24
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
24
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
25
SPRING-EXHAUST(10)
7042029
$4.84
26
FITTING - OUTLET(10)
7052023
$24.99
27
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
28
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
29
FITTING,(10)
7052077
$6.39
30
CABLE,TANK RETENTION
7080473
Unavailable
31
FOAM, FILLER
5810201
Unavailable
