OIL TANK/AIR BOX ASSEMBLY 440 E942760 and 440 SKS E942560 (49273927390031)

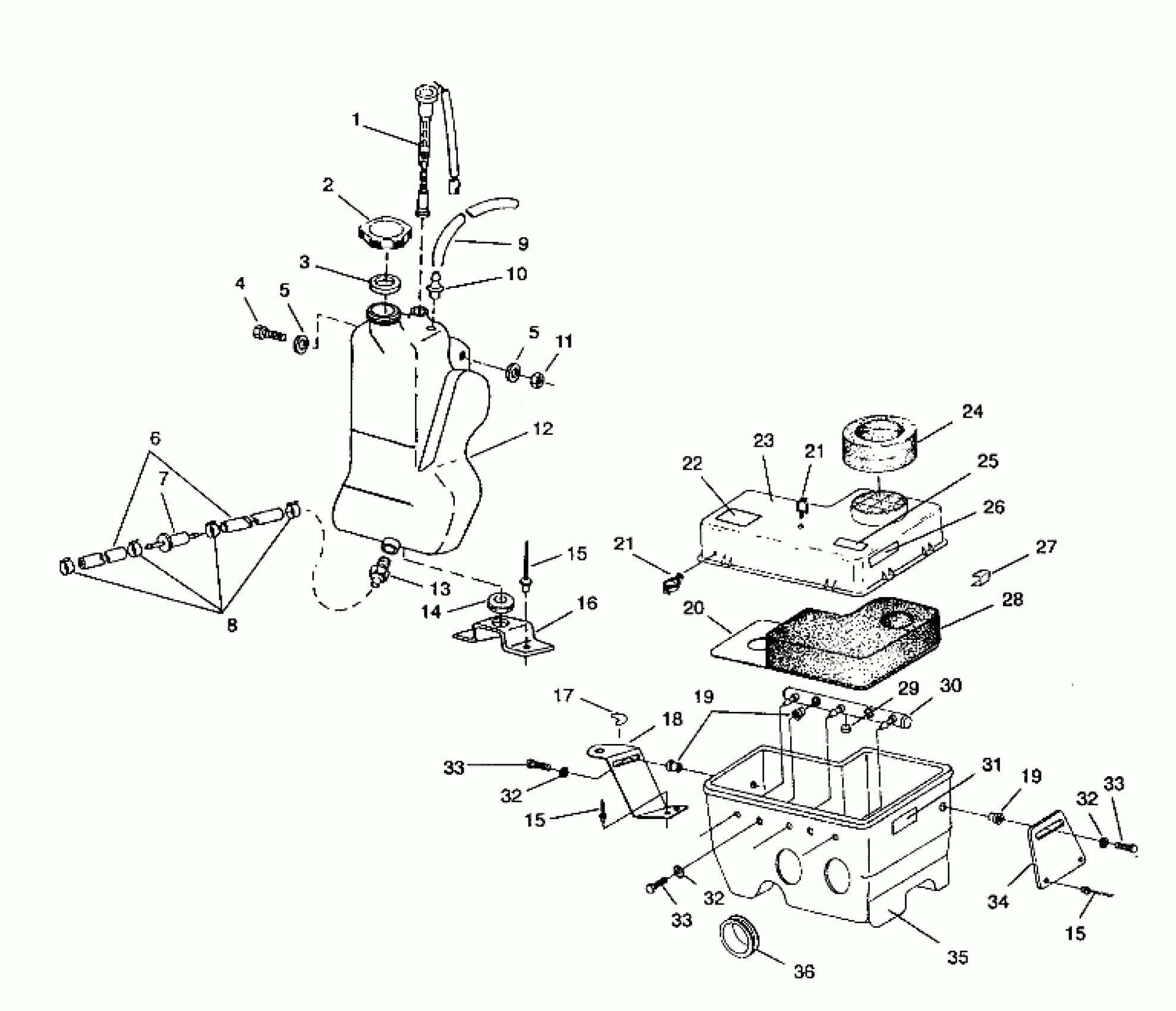

Polaris EURU 440 SKS - E942560 OIL TANK/AIR BOX ASSEMBLY 440 E942760 and 440 SKS E942560 (49273927390031) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512240
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
FITTING,(10)
7052077
$6.39
11
NUT-LOCK(10)
7542122
$1.49
12
Tank, Oil
5431437
Unavailable
13
FITTING, OUTLET
7052042
$8.99
14
GROMMET RUBBER
5410021
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
BRACKET
5223985
Unavailable
17
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
18
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
20
PLATE,AIR SILENCER
5850075
$24.27
21
CLAMP,WIRE ROUTING(10)
7080409
$2.39
21
CLAMP,WIRE ROUTING(10)
7080409
$2.39
22
DECAL,COOLING SYS. [No Longer Available]
7073721
Unavailable
23
SILENCER,AIR,UPPER
5431496
Unavailable
24
DUCT ASM,AIR
2620057
$40.46
25
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
26
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
27
CLIP, AIR BOX,(10)
7670055
$7.99
28
BAFFLE ASM.
1253116
$59.99
29
FILTER,VAC.BOTTLE
5810935
Unavailable
30
BOTTLE,VACUUM
5431665
Unavailable
31
DECAL, GREASING [No Longer Available]
7073426
$7.27
32
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
32
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
32
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
33
SCREW(10)
7512279
$1.49
33
SCREW(10)
7512279
$1.49
33
SCREW(10)
7512279
$1.49
34
BRACKET, SILENCER
5211274
$9.70
35
SILENCER,DRILLED
5431666
Unavailable
36
BOOT
5410403
$12.99
