NOSEPAN ASSEMBLY 440 E942760 and 440 SKS E942560 (49273927390005)

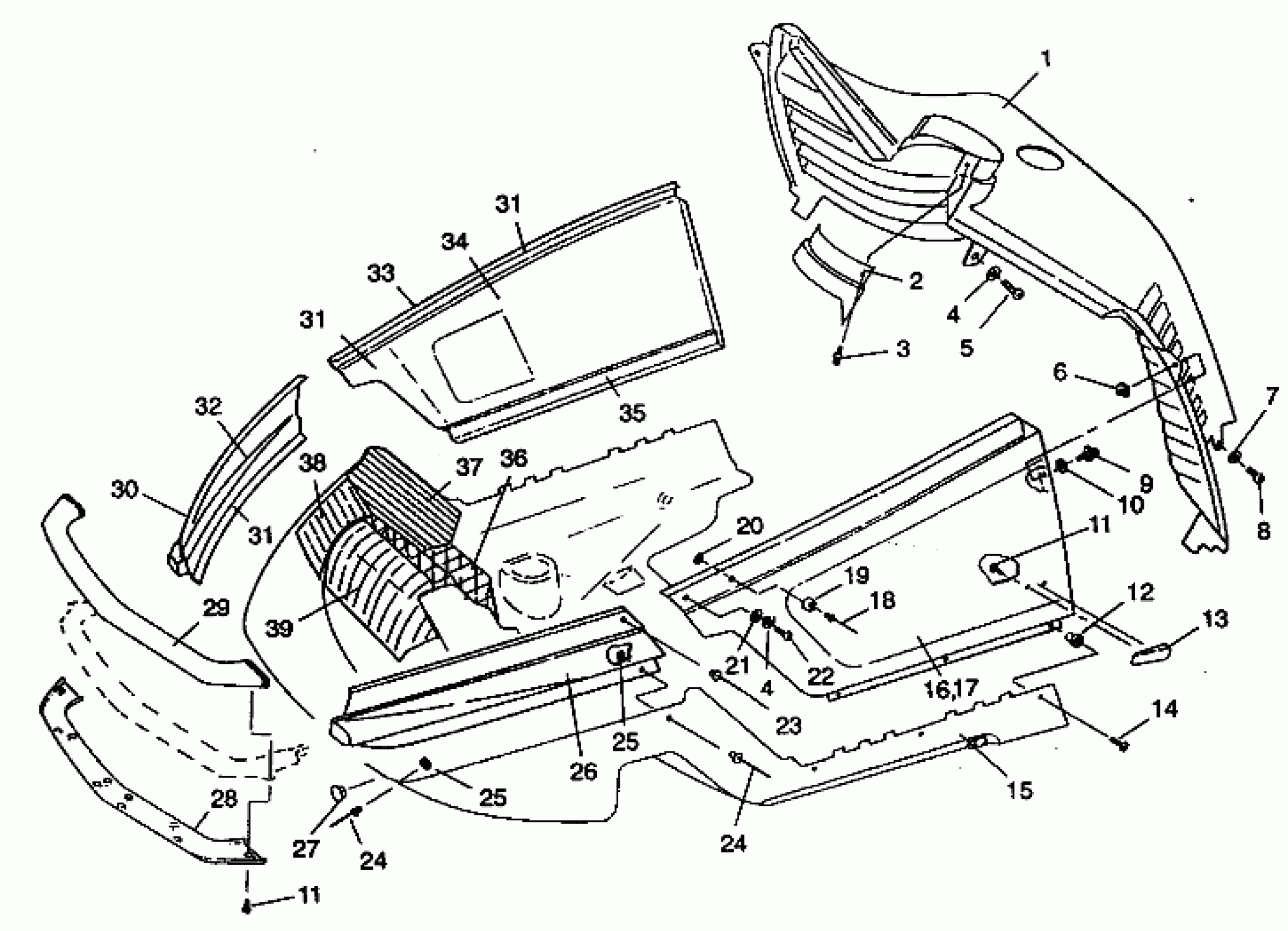

Polaris EURU 440 SKS - E942560 NOSEPAN ASSEMBLY 440 E942760 and 440 SKS E942560 (49273927390005) Diagram
#
1
CONSOLE,EUROPE
5431697
Unavailable
2
COVER,CONSOLE
5431535
$54.35
3
RIVET,PLASTI-LOC.(50)
7621509
$1.49
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
5
SCREW(10)
7512252
Unavailable
6
NUT,RETAINER(10)
7542138
Unavailable
7
WASHER(10)
7555792
$4.79
8
SCREW(10)
7512069
Unavailable
9
RETAINER,HOODLATCH
5431502
$12.94
10
WASHER,HI-TEMP,(10)
7555886
Unavailable
11
SCREW(10)
7512068
$2.39
11
SCREW(10)
7512068
$2.39
12
NUT-WELL(10)
7541923
$5.59
13
BUMPER,SIDE PANEL Substituted by 5432456
5431662
Unavailable
14
SCREW(10)
7512279
$1.49
15
NOSEPAN,BLK.
5431471-070
Unavailable
16
PANEL,SIDE,LH,P.RED Substituted by 5431742-136
5431468-136
Unavailable
17
FOAM,LH,SIDEPANEL Substituted by 5811076
5810933
Unavailable
18
RIVET(50)
7621315
$3.99
19
BUMPER,RUBBER STOP Substituted by 5411440
5410843
Unavailable
20
RIVET BURR(50)
7555756
$2.99
21
WASHER,RUBBER(10)
7555884
$5.70
22
SCREW(10)
7515148
$4.79
23
RIVET(50)
7621472
$1.49
24
RIVET, BLIND(50)
7621467
$1.49
24
RIVET, BLIND(50)
7621467
$1.49
25
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
25
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
26
BUMPERSIDE,LH,(P.RED)
5431492-136
Unavailable
27
PLUG,NOSEPAN HOLE
5410820
$15.99
28
COVER,F.BUMP.BOTT(P.RED) Substituted by 5431481
5431481-136
Unavailable
29
COVER,F.BUMP.TOP(P.RED)
5431480-136
Unavailable
30
BUMPER,RH.SIDE/FOIL,R.RED Substituted by 2610010-136
2610006-136
Unavailable
31
TAPE,FOIL,215 CM.(85 IN.) (Service)
8360043-215
Unavailable
31
TAPE,FOIL,215 CM.(85 IN.) (Service)
8360043-215
Unavailable
31
TAPE,FOIL,215 CM.(85 IN.) (Service)
8360043-215
Unavailable
32
FOIL,MID.BUMPER Substituted by 5811086
5810932
Unavailable
33
PANEL,RH,SIDE/FOIL,P.RED Substituted by 2610008-136 (Incl. 32-35)
2610005-136
Unavailable
34
FOAM,RH,SIDEPANEL
5810934
$25.78
35
TAPE,FOIL,100 CM. (Service)
8360044-100
Unavailable
36
FOIL,R.SHOCK TOWER
5810938
Unavailable
37
FOIL,RH,PAN
5810908
Unavailable
38
FOIL,SIDE.SHOCKTOWER
5810939
Unavailable
39
FOIL,F.SHOCK TOWER
5810937
Unavailable
