FRONT SUSPENSION and SKI 440 E942760 and 440 SKS E942560 (49273927390011)

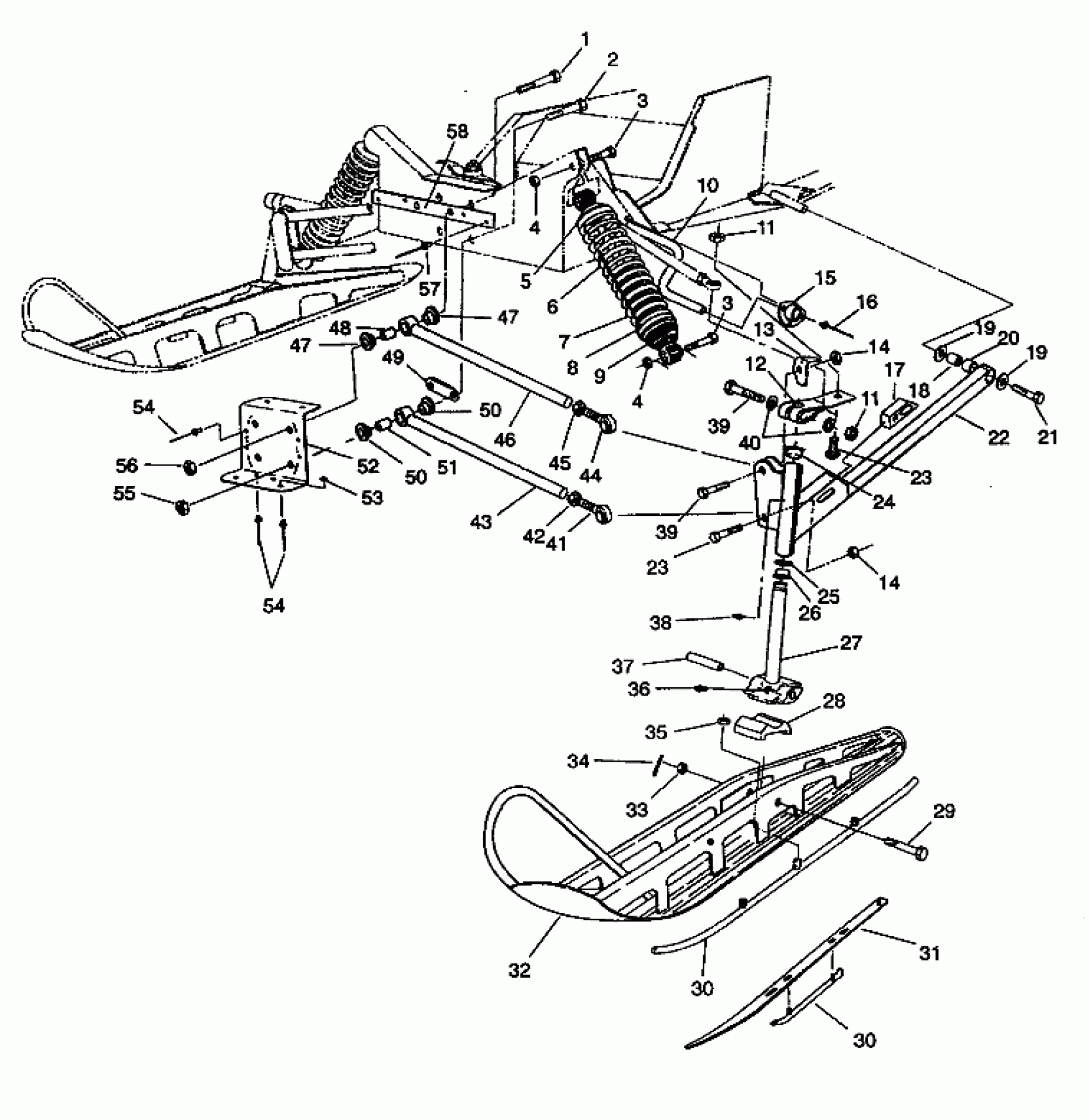

Polaris EURU 440 SKS - E942560 FRONT SUSPENSION and SKI 440 E942760 and 440 SKS E942560 (49273927390011) Diagram
#
1
BOLT(10)
7512582
$8.79
2
BOLT(10)
7512678
$19.99
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.,BLK.
7041334-067
Unavailable
7
SLEEVE,SPRING PROTECTOR
5431032
$31.99
8
CAM,ADJUSTING SPRING
5630334
$32.37
9
SHOCK,GAS/CAM,IFS
7041288
Unavailable
10
BAR,SWAY,BLACK (SKS)
5224237-067
Unavailable
10
BAR,SWAY,9/16,BLK. (440)
5224476-067
Unavailable
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
ARM,STEERING,BLK. Substituted by 1012423-067
5222873-067
Unavailable
13
STOP,STRG,RH,BLK.
5222875-067
Unavailable
13
STOP,STRG,LH,BLK.
5222874-067
Unavailable
14
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
14
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
15
BUSHING-SWAYBAR
5410383
Unavailable
16
RIVET(50)
7621433
$1.49
17
SLIDE-SWAYBAR
5410384
Unavailable
18
TUBE,TRAILING ARM
5010187
Unavailable
19
WASHER(10)
7555721
$1.49
19
WASHER(10)
7555721
$1.49
20
PIVOT-TRAILING ARM
5410382
Unavailable
21
BOLT(10)
7512557
$7.60
22
ARM,TRLG,LH,BLK. Substituted by 1822162 (Incl. 18-20)
1822152-067
Unavailable
22
ARM,TRLG,RH,BLK. Substituted by 1822163 (lncl. 18-20)
1822153-067
Unavailable
23
BOLT(10) Substituted by 7515540
7515492
$4.62
23
BOLT(10) Substituted by 7515540
7515492
$4.62
24
BUSHING-FLANGE
3573909
$2.39
25
WASHER SPECIAL(10)
7556509
$1.59
26
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
27
SPINDLE, BLK.
6230073-067
Unavailable
28
STOP, RUBBER
5521276
Unavailable
29
BOLT(10)
7515462
$8.79
30
SKAG,PR.,CARBIDE (SKS)
2870693
$69.99
30
SKAG Substituted by 1820318-067 (440)
1820318
$49.99
30
SKAG,PR.,CARBIDE (SKS)
2870693
$69.99
30
SKAG Substituted by 1820318-067 (440)
1820318
$49.99
31
PLATE, SKAG (440 only)
1011829-067
$54.99
32
SKI WELD, BLK
1820332-067
Unavailable
33
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
34
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
35
NUT-5/16-18 NYLOK-Y
7542324
$1.49
36
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
37
BUSHING,PIVOT,(10)
5010158
$19.99
38
ZERK,FITTING,THREADED(10)
7080433
$1.49
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
40
WASHER(10) Substituted by 7555832
7555851
Unavailable
41
ROD END,RH,1/2-20
7060159
Unavailable
42
NUT-JAM(10)
7542711
$2.39
43
ROD,RADIUS,LOWER (440)
1822142-067
$38.10
43
ROD,LOWER RADIUS (SKS)
1822146-067
$43.29
44
ROD END,RH,WIDE SHLDER.
7060158
$36.31
45
NUT JAM(10)
7542520
$2.39
46
ROD,RADIUS,UPPER (440)
1822140-067
Unavailable
46
ROD,UPPER RADIUS (SKS)
1822144-067
$33.30
47
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
47
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
48
BUSHING,RAD.ROD PIVOT
5010195
$5.03
49
STRAP,SPACER,BOTT.
5211427
Unavailable
50
BUSHING,OUTER RAD.ROD PIVOT
5431663
$1.59
50
BUSHING,OUTER RAD.ROD PIVOT
5431663
$1.59
51
BUSHING,RAD.ROD PIVOT
5010298
$5.03
52
BRKT,PANSUPPORT,BLK.
5222866-067
Unavailable
53
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
54
RIVET, BLIND(50)
7621467
$1.49
54
RIVET, BLIND(50)
7621467
$1.49
55
NUT FLEX,(10)
7542703
Unavailable
56
NUT, LOCK,(10)
7542503
$10.39
57
RIVET Substituted by 7661638
7661625
$1.19
58
DESC NOT_AVAILABLE
5240349
Unavailable
