COOLING SYSTEM 440 E942760 and 440 SKS E942560 (49273927390018)

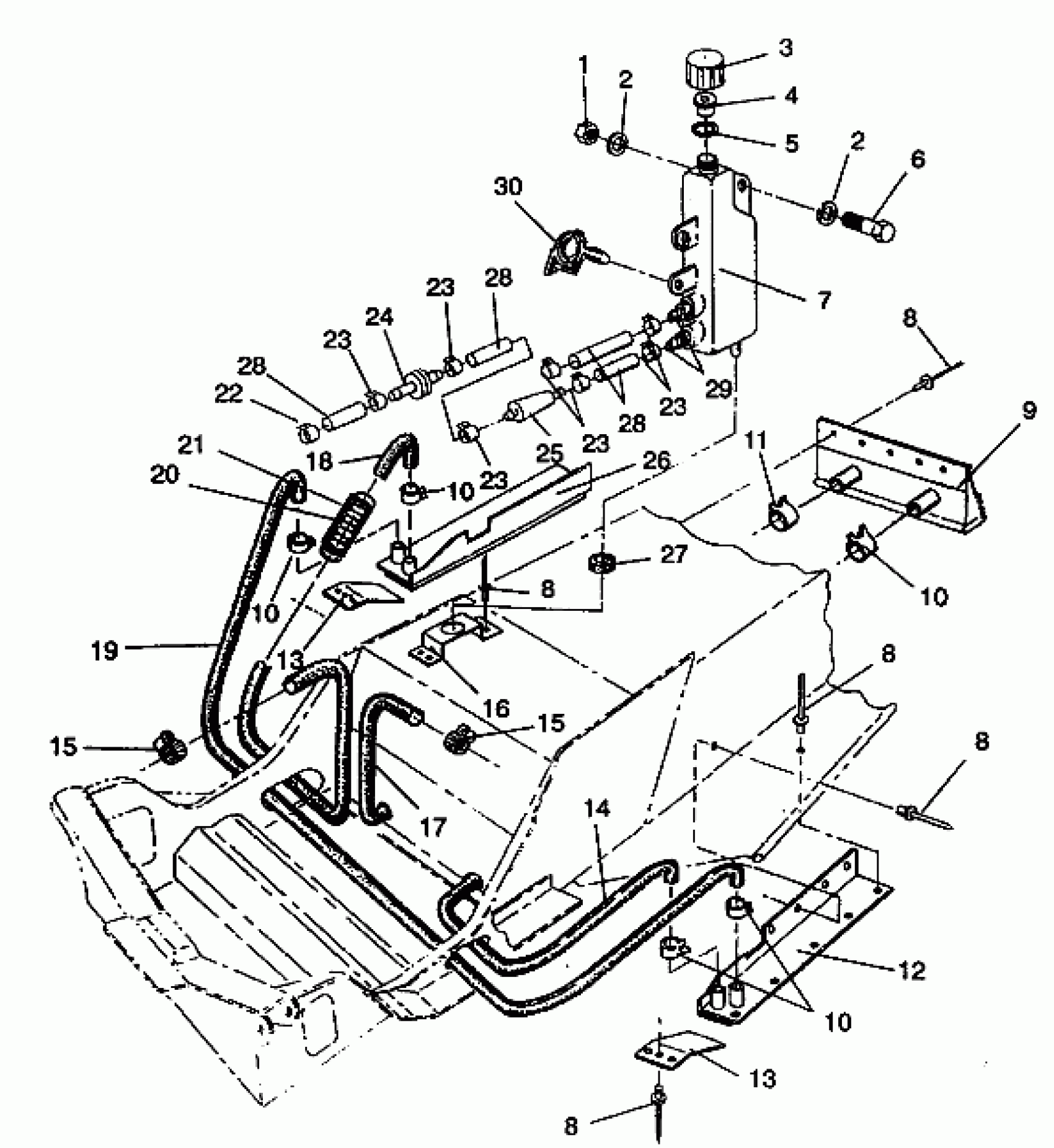

Polaris EURU 440 SKS - E942560 COOLING SYSTEM 440 E942760 and 440 SKS E942560 (49273927390018) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE, OVERFLOW Substituted by 5431733
5431054
$36.41
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
9
EXCHANGER WELD,CTR.
2511225
$204.76
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
12
COOLING WELD,LH
2511223
$113.32
13
GUARD, COOL.EXT.
5222863
$32.99
13
GUARD, COOL.EXT.
5222863
$32.99
14
HOSE-CROSSOVER (Short)
5410350
Unavailable
15
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
15
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
16
BRACKET
5223985
Unavailable
17
HOSE,PUMP/CTR.EXT.
5410743
Unavailable
18
HOSE,ENG/SIDE EXT.
5410738
Unavailable
19
HOSE,CROSSOVER
5410557
Unavailable
20
SPRING,HOSE RETAINER
7041079
$4.95
21
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
22
CLAMP-HOSE(10)
7080134
Unavailable
23
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
VALVE, CHECK
7052038
$10.51
25
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
26
COOLING WELD,RH
2511224
Unavailable
27
GROMMET RUBBER
5410021
Unavailable
28
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
28
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
28
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
29
FITTING, OUTLET
7052042
$8.99
30
CLIP, PLASTIC(10)
4020139
$4.79
