CONTROLS 440 E942760 and 440 SKS E942560 (49273927390016)

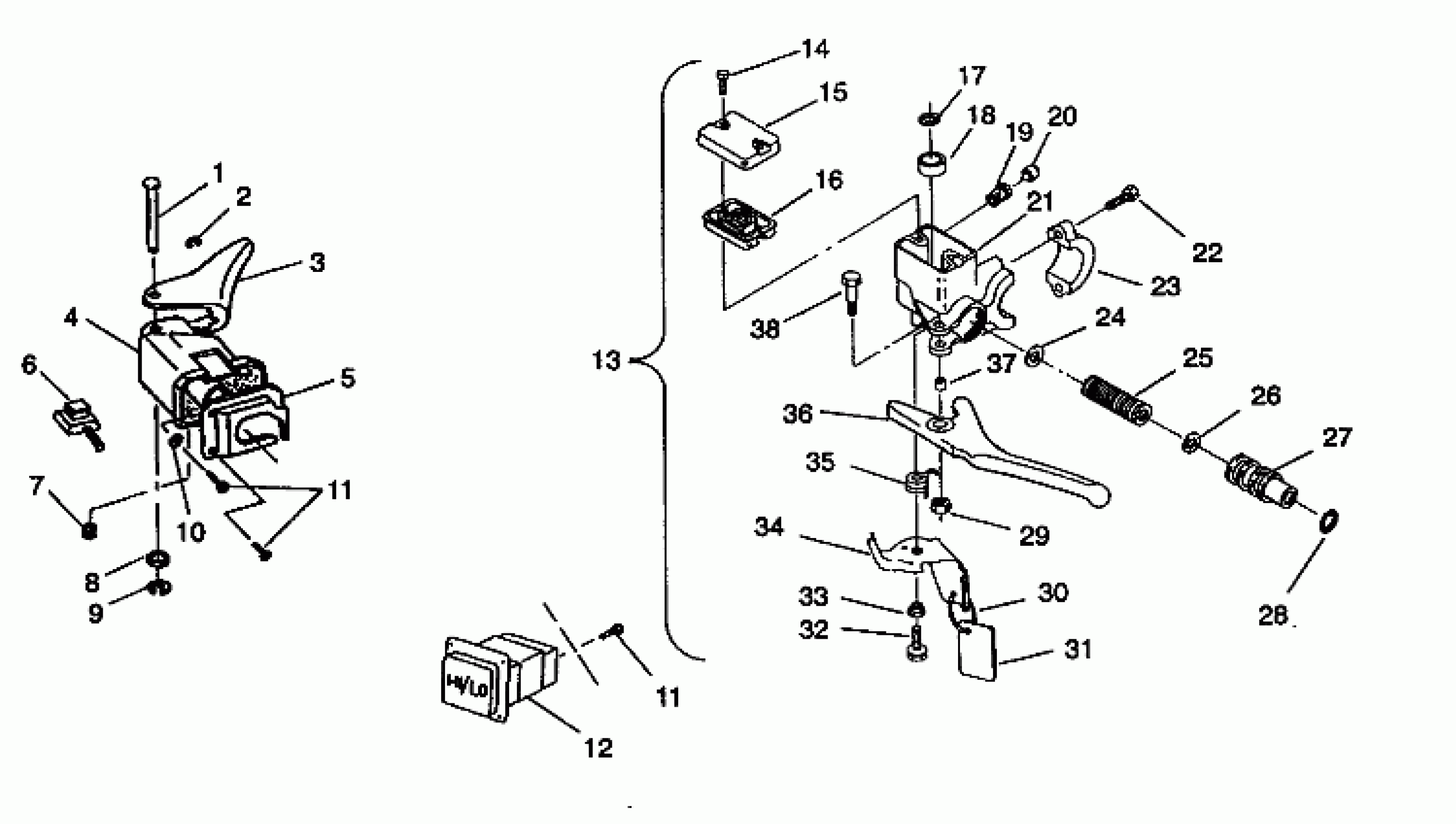

Polaris EURU 440 SKS - E942560 CONTROLS 440 E942760 and 440 SKS E942560 (49273927390016) Diagram
#
1
PIN-RETAINING .186X1.780-AL
7661624
$12.79
2
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
3
LEVER-THROTTLE (SKS)
5430652
Unavailable
3
LEVER,THROTTLE,W/HEATER (440)
2010119
Unavailable
3
LEVER, THROTTLE (440)
5431318-067
Unavailable
3
LEVER ASM,HTR.STD 34MM (SKS)
2010142
Unavailable
4
BLOCK,THROTTLE(EASY) Substituted by 5433343 (440)
5431311-067
Unavailable
4
BLOCK,THROTTLE/BRAKE Substituted by 5431592 (SKS)
5431265
$49.99
5
BLOCK-ADAPTER (SKS)
5430604
$13.75
5
BLOCK,ADAPTER,BLK. (440)
5431313-067
Unavailable
6
SWITCH, KILL (440)
4110118
Unavailable
6
SWITCH,AUX.SHUT-OFF (SKS)
4110106
$94.99
7
SCREW(10)
7512465
$3.99
8
WASHER(10)
7555730
$3.99
9
RING-RETAINING EXTERNAL
7710401
$3.99
10
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
11
SCREW-SEMS(10)
7511848
$3.99
11
SCREW-SEMS(10)
7511848
$3.99
12
SWITCH, DIMMER
4110136
Unavailable
13
MASTER CYL.ASM,W/ST.GLASS Substituted by 2050056 (Incl. 14-38)
2050058
Unavailable
14
SCREW,W/WASHER(10)
7512050
$3.99
15
COVER,MASTER CYL.
5630338
Unavailable
16
GASKET,MASTER CYL.
5410527
$8.99
17
WASHER, BAFFLE(10)
1930662
Unavailable
18
BAFFLE,MASTER CYL.
1930673
Unavailable
19
SEAL, SIGHT GLASS
1930660
Unavailable
20
GLASS,SIGHT,MASTER CYL.
1930710
Unavailable
21
HSG.,MASTER CYL. Substituted by 2050056
5130912
Unavailable
22
BOLT,SOCKET HEAD(10)
7512290
$4.79
23
CLAMP, MASTER CYL.
5630342
Unavailable
24
WASHER(10)
7555708
$3.99
25
SPRING,COMPRESSION,(10)
7041203
$33.87
26
U PACKING SEAL
5410164
Unavailable
27
PISTON, MASTER CYL.
5020520
Unavailable
28
O RING
5410163
$1.60
29
NUT(10)
7542124
Unavailable
30
STRAP,PARK.BRAKE TAG
7080447
Unavailable
31
TAG,PARK.BRAKE
5431389
Unavailable
32
SCREW(10)
7511866
$4.79
33
BUSHING,PK.BRAKE LEVER
5020545
Unavailable
34
LEVER,PARK.BRAKE
5222669
Unavailable
35
SPRING,PK.BRAKE
7041229
$32.37
36
LEVER, BRAKE
5630409
Unavailable
37
BUSHING,BRAKE LEVER
5332931
Unavailable
38
BOLT,BRAKE LEVER(10)
7512287
Unavailable
