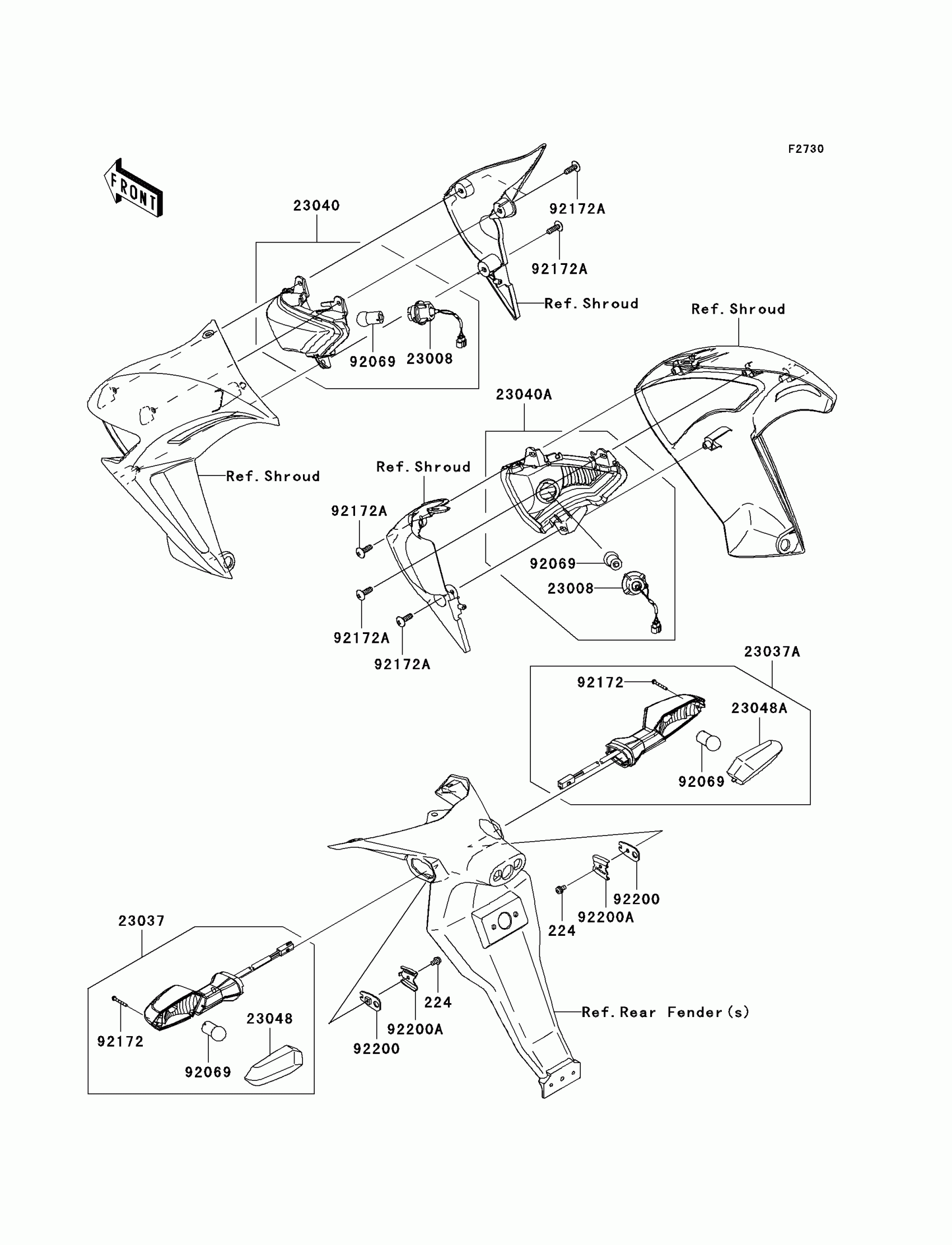

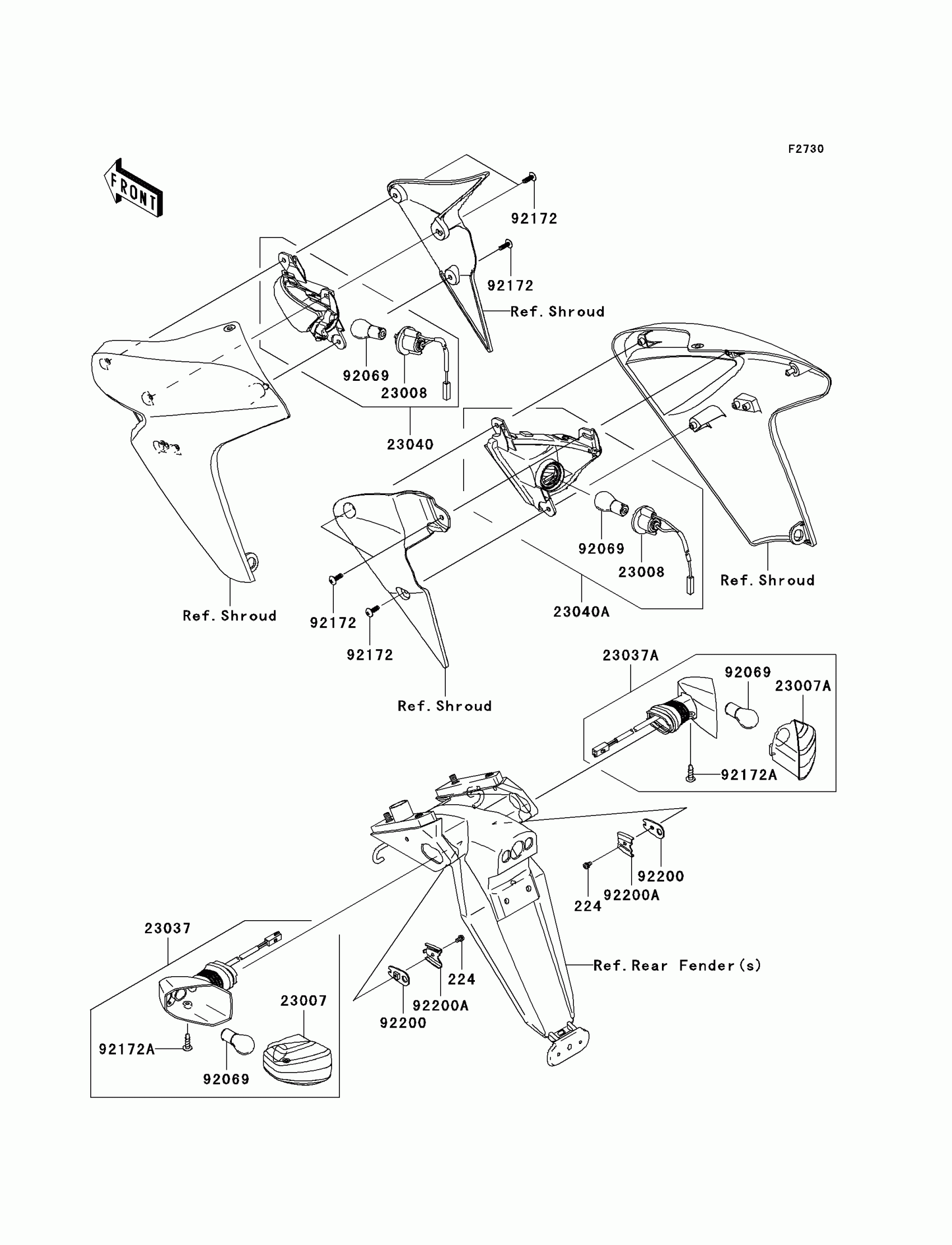

Kawasaki ER-6n (European) Turn Signals Diagram

Description

Price

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$3.67

23008

SOCKET-ASSY,SIGNAL LAMP,FR

23008-0101

$22.86

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0161

Unavailable

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0162

Unavailable

23040

LAMP-SIGNAL,FR,LH

23040-0097

$75.02

23040A

LAMP-SIGNAL,FR,RH

23040-0098

$75.02

23048

LENS-SIGNAL LAMP,FR,RH&RR,LH

23048-0014

$11.75

23048A

LENS-SIGNAL LAMP,FR,LH&RR,RH

23048-0015

$11.75

92069

BULB,12V 10W

92069-0024

Unavailable

92172

SCREW,2.9X22

92172-0395

$3.71

92172A

SCREW,TAPPING,5X16

92172-0427

$2.55

92200

WASHER,SIGNAL LAMP

92200-0164

$3.94

92200A

WASHER,SIGNAL LAMP

92200-0165

$3.94
