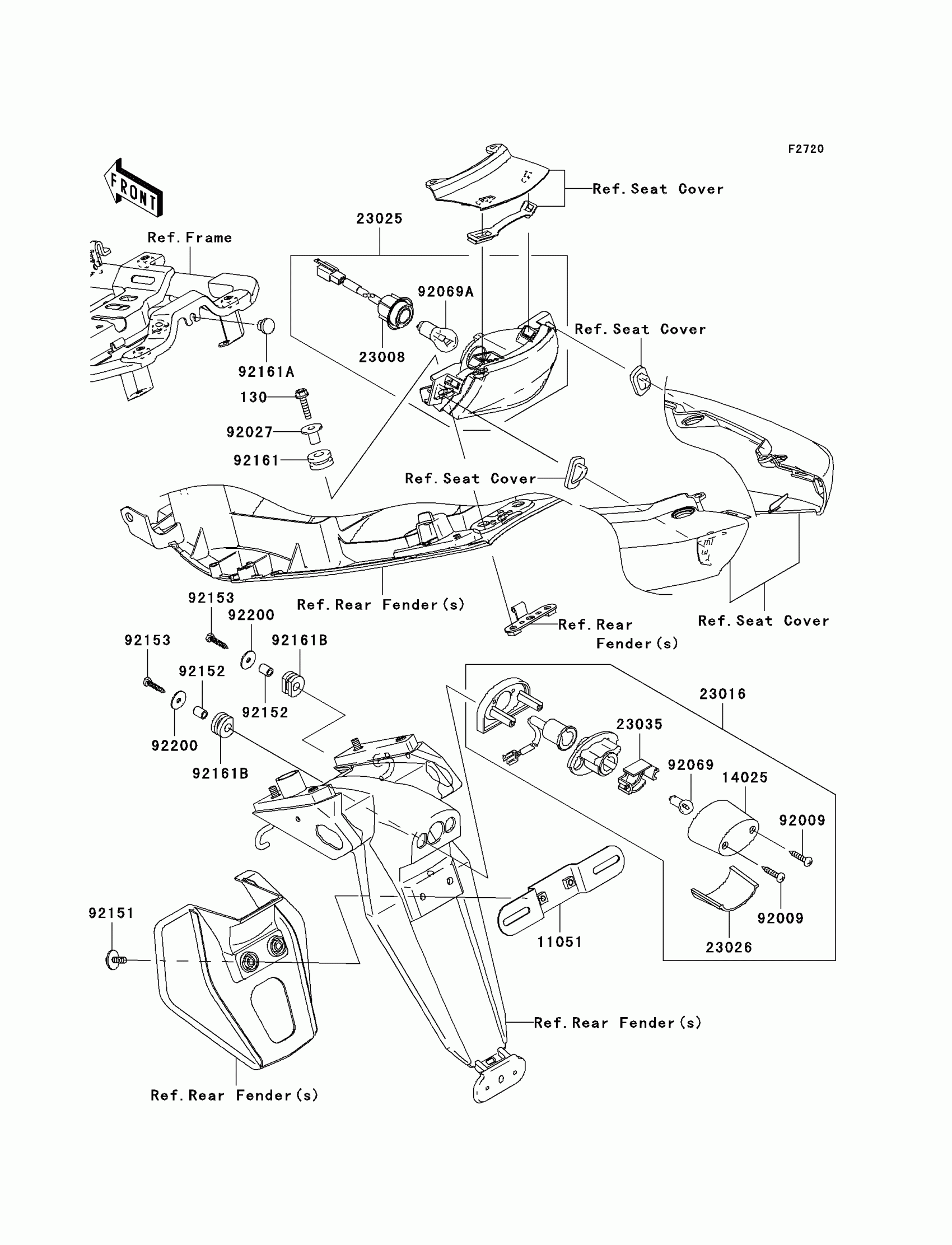

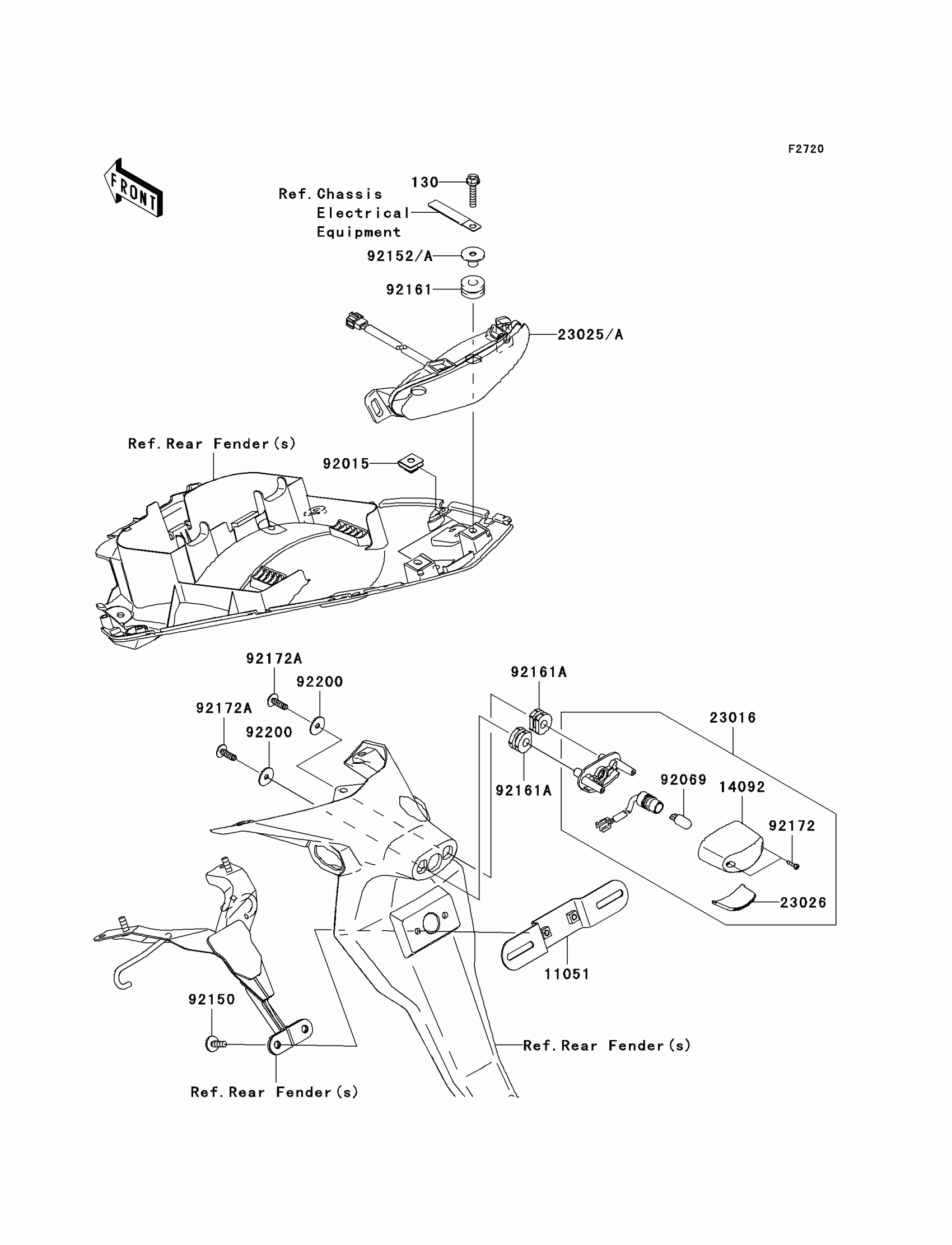

Kawasaki ER-6n (European) Taillight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BB0625

$2.80

11051

BRACKET,LICENSE

11051-1503

$16.01

14025

COVER,LICENSE LAMP

14025-1725

$18.40

23008

SOCKET-ASSY,TAIL LAMP

23008-0042

$22.55

23016

LAMP-ASSY,LICENSE

23016-0003

$68.88

23025

LAMP-TAIL

23025-0018

$106.85

23026

LENS,LICENSE LAMP

23026-1064

$26.12

23035

REFLECTOR-LAMP,LICENSE

23035-1066

$19.16

92009

SCREW,TAPPING,4X20

92009-1378

$4.10

92027

COLLAR,L=16.1

92027-1847

$6.22

92069

BULB,12V 5W

92069-1055

$5.18

92069A

BULB,12V 21/5W

92069-1084

$7.33

92151

BOLT,6X25

92151-1241

$5.00

92152

COLLAR,6X9X11.5

92152-0372

$2.61

92153

BOLT,TAPPING,5X25

92153-1424

$1.00

92161

DAMPER

92161-0163

$5.79

92161A

DAMPER

92161-1084

$2.67

92161B

DAMPER

92161-1313

Unavailable

92200

WASHER,5.5X20X1.2

92200-0284

$2.15
