Description

Price

318

NUT-HEX-SMALL

318AB0800

$0.69

410

WASHER-PLAIN-SMALL,8MM,BLACK

410AB0800

$4.10

11065

CAP,CHAIN ADJUSTER,BLACK

11065-0258-10

$47.34

33001

ARM-COMP-SWING,BLACK

33001-0161-10

$545.89

33032

SHAFT-SWING ARM

33032-1142

$105.01

33040

ADJUSTER-CHAIN,INNER

33040-0025

$22.05

33040A

ADJUSTER-CHAIN,OUTER,P.SILVER

33040-0026-458

$37.82

35023

FENDER-REAR,SWING ARM

35023-0149

$29.87

42036

SLEEVE,SWING ARM,L=219.5

42036-0066

$71.54

55020

GUARD,CHAIN

55020-0192

$30.72

92015

NUT,FLANGED,20MM

92015-1724

$14.90

92015A

NUT,POP,6MM

92015-1759

$5.00

92015B

NUT,8MM

92015-1959

$6.63

92033

RING-SNAP,42MM

92033-1041

$6.16

92039

RIVET

92039-0023

$2.97

92045

BEARING-BALL,6004UL11

92045-0017

$14.39

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$21.54

92049

SEAL-OIL

92049-0132

$9.39

92049A

SEAL-OIL

92049-0138

$9.39

92143

COLLAR,SWING ARM,RH,L=12.5

92143-1727

$19.64

92151

BOLT,SOCKET,6X18

92151-1149

$7.68

92210

NUT,POP,6MM,L=15

92210-1397

$5.48

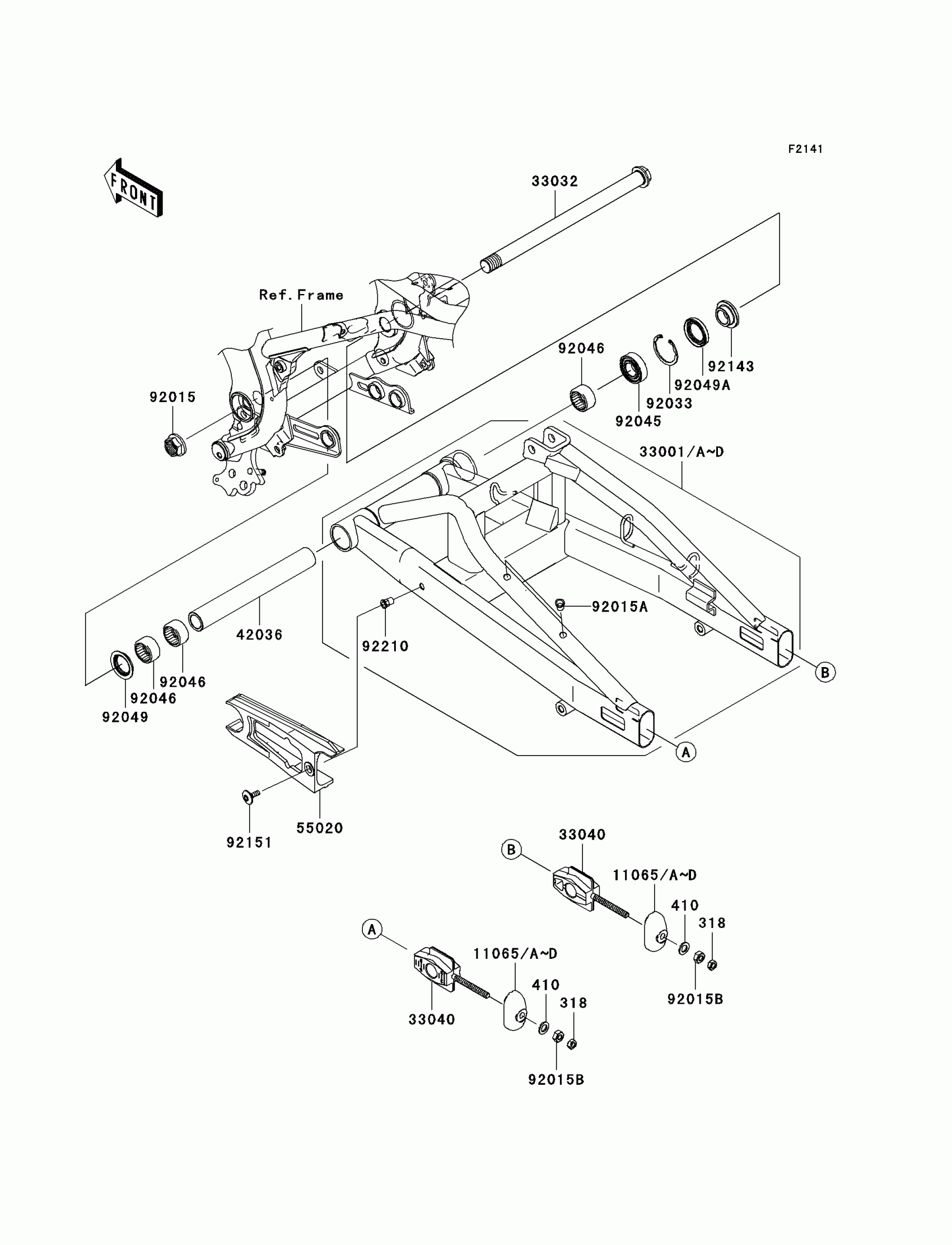

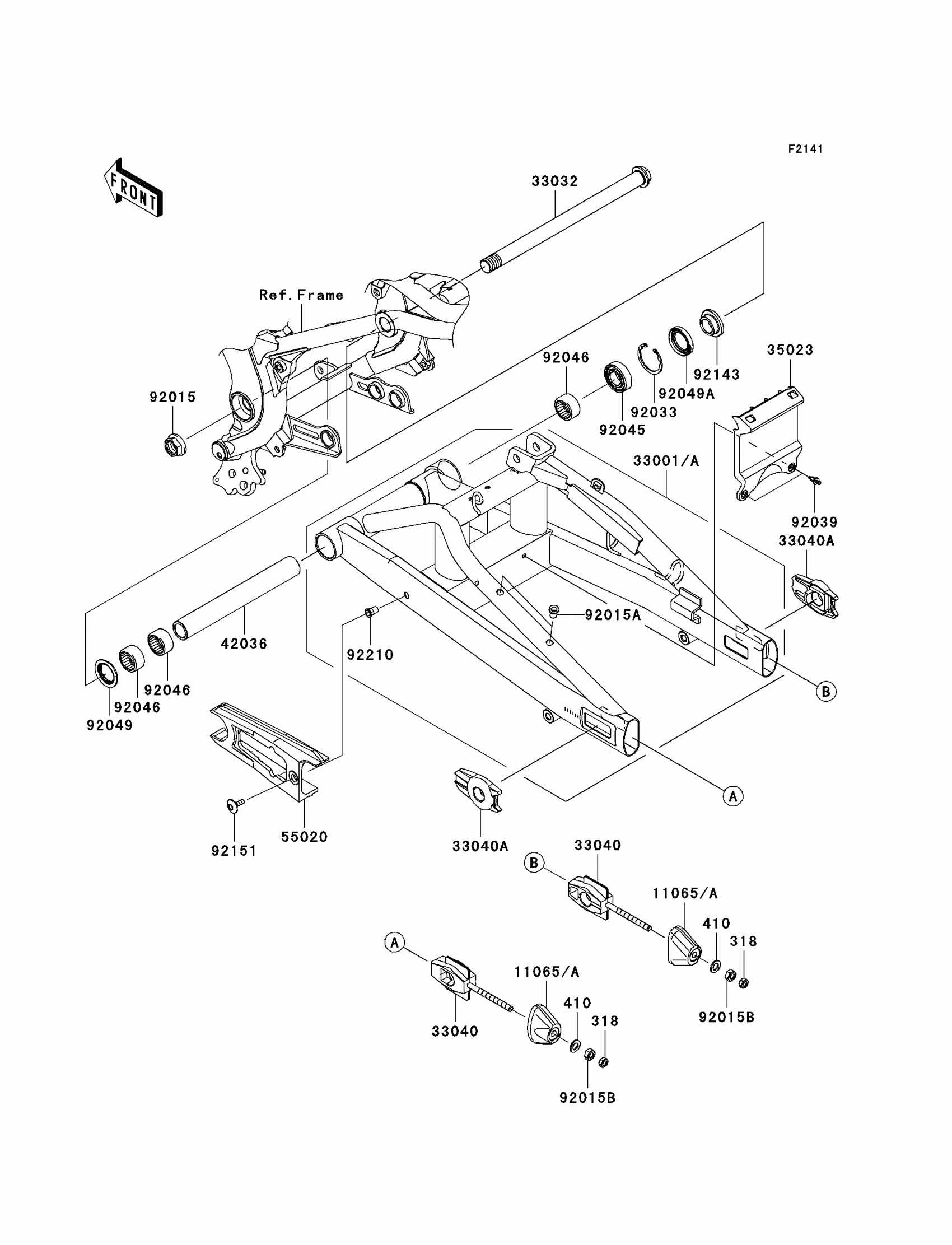

Kawasaki ER-6n (European) Swingarm Diagram

NUT-HEX-SMALL

WASHER-PLAIN-SMALL,8MM,BLACK

CAP,CHAIN ADJUSTER,BLACK

ARM-COMP-SWING,BLACK

SHAFT-SWING ARM

ADJUSTER-CHAIN,INNER

ADJUSTER-CHAIN,OUTER,P.SILVER

FENDER-REAR,SWING ARM

SLEEVE,SWING ARM,L=219.5

GUARD,CHAIN

NUT,FLANGED,20MM

NUT,POP,6MM

NUT,8MM

RING-SNAP,42MM

RIVET

BEARING-BALL,6004UL11

BEARING-NEEDLE,7E-HVS 28X34X17

SEAL-OIL

SEAL-OIL

COLLAR,SWING ARM,RH,L=12.5

BOLT,SOCKET,6X18

NUT,POP,6MM,L=15
