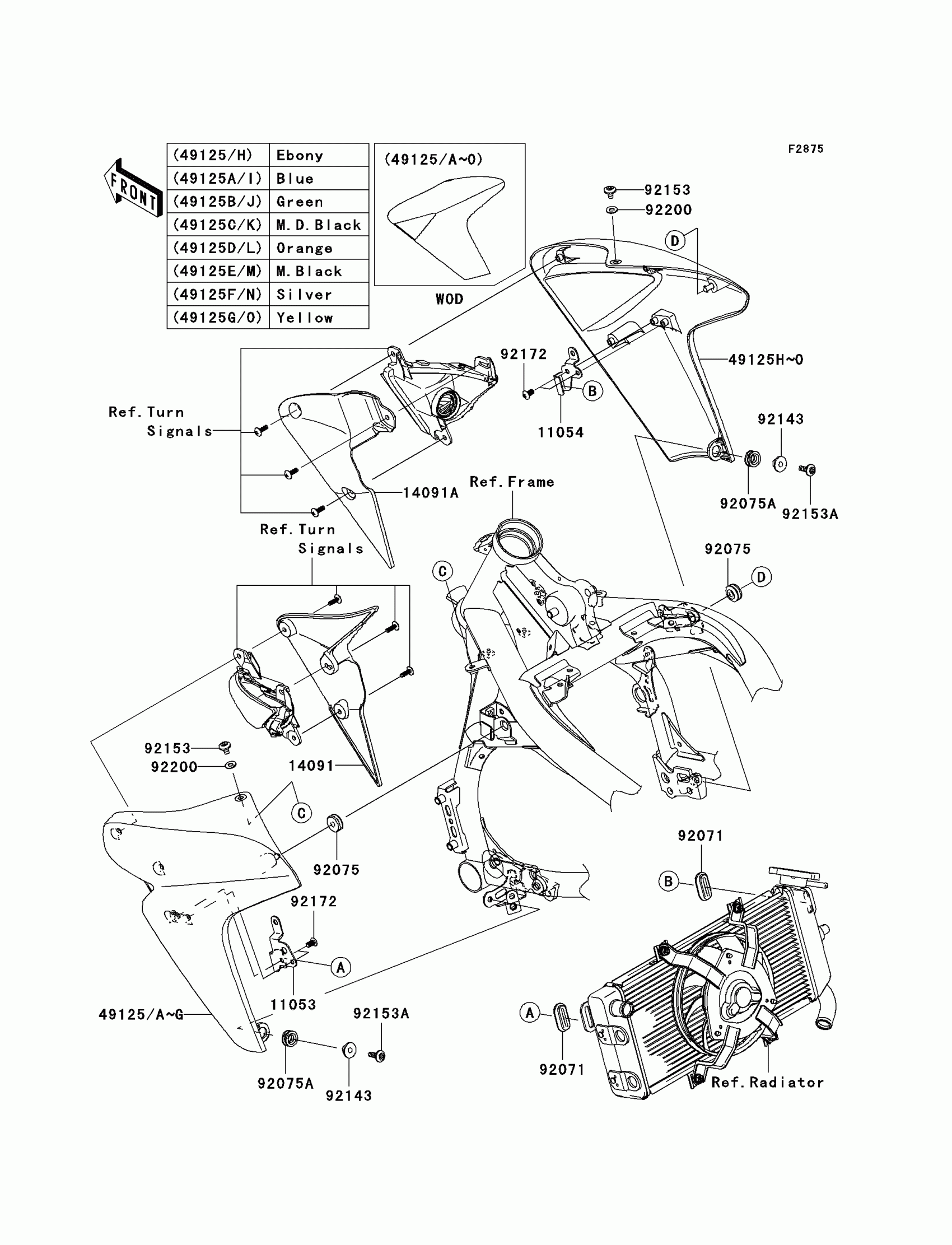

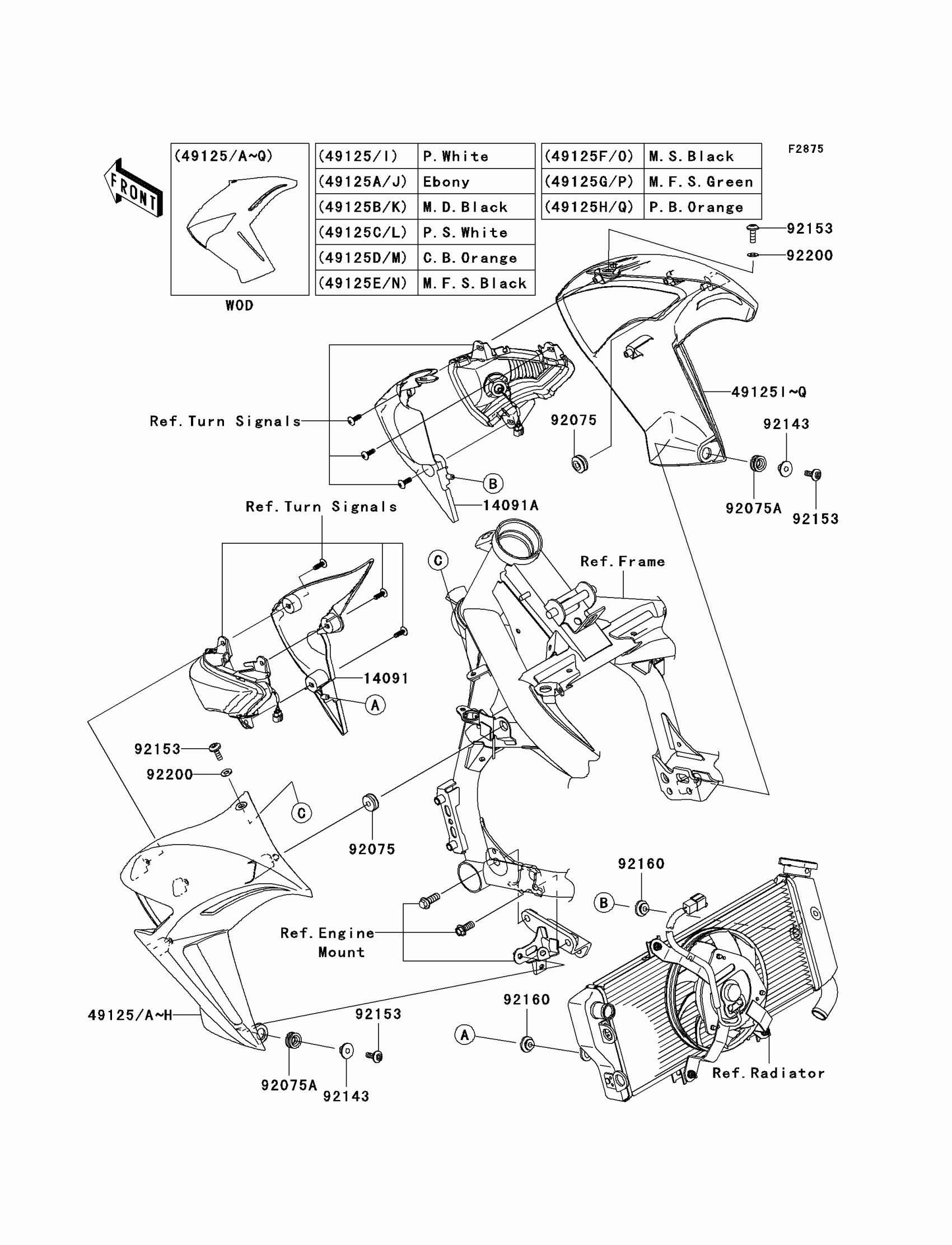

Kawasaki ER-6n (European) Shroud Diagram

Description

Price

14091

COVER,SHROUD,LH

14091-1590

$34.14

14091A

COVER,SHROUD,RH

14091-1591

$33.66

49125

SHROUD,LH,P.WHITE

49125-0033-G3

$147.03

49125F

SHROUD,LH,M.S.BLACK

49125-0033-15Z

$147.03

49125G

SHROUD,LH,M.F.S.GREEN

49125-0033-35A

$147.03

49125I

SHROUD,RH,P.WHITE

49125-0034-G3

$147.72

49125O

SHROUD,RH,M.S.BLACK

49125-0034-15Z

$147.72

49125P

SHROUD,RH,M.F.S.GREEN

49125-0034-35A

$147.72

92075

DAMPER

92075-1067

$4.69

92075A

DAMPER

92075-1634

$4.69

92143

COLLAR

92143-1962

$6.22

92153

BOLT,6X18

92153-0816

$2.15

92160

DAMPER

92160-1613

$3.74

92200

WASHER,6.5X14X1

92200-1388

$2.46
